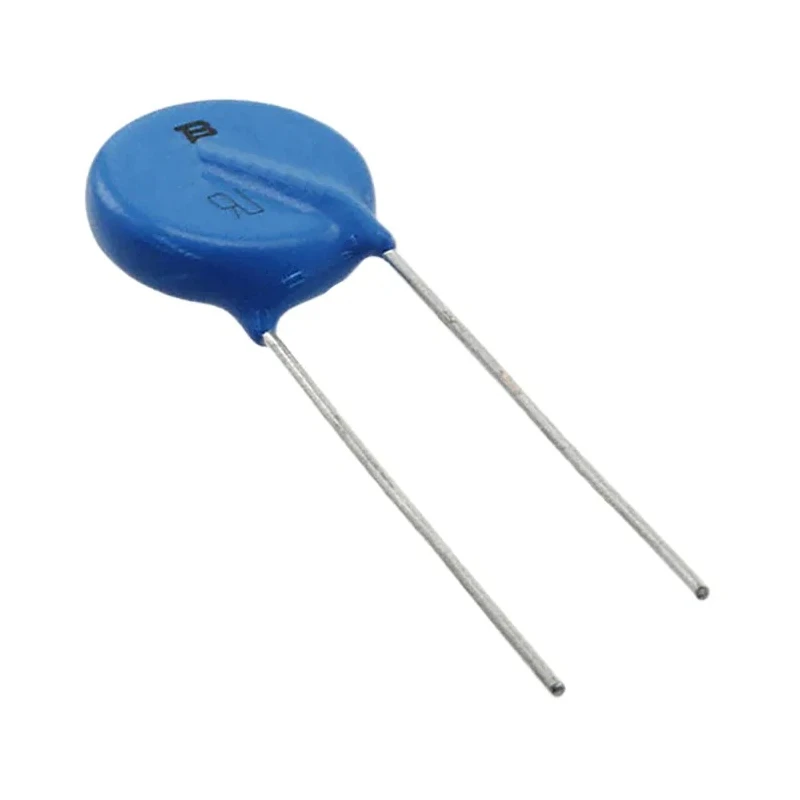

Bourns Metal Oxide Varistor, Molded Radial, Radial Lead, 430 V Varistor Voltage, 2970 V Clamping Voltage, 50 A MOV-14D431K

Bourns MOV-14D431K Metal Oxide Varistor is a molded radial lead varistor designed for high voltage transient protection in electronic circuits. With a varistor voltage of 430 V and a clamping voltage of 2970 V, it effectively limits undesired voltage spikes due to lightning or power surges.

This device features rapid response times and can handle a clamping current of up to 50 A, making it suitable for protecting sensitive electronics from damage caused by transient faults. Its metal construction and molded radial packaging offer durability in demanding environments.

The MOV-14D431K has a capacitance value of 460 pF, making it appropriate for circuits requiring controlled transient voltage suppression without impacting normal operation. Rated for operation between -40°C and 105°C, it ensures reliable performance across wide temperature ranges.

With physical dimensions of 40 mm length, 16.5 mm diameter, and 5.2 mm thickness, along with a pin count of 2 and a lead pitch of 7.5 mm, the varistor is compatible with standard radial mount PCB layouts. It supports maximum AC and DC voltage ratings of 1100 V and 1465 V respectively, with a surge current capacity of 4.5 kA and an energy rating of 335 J for robust transient handling.

Certified RoHS compliant, this varistor is an ideal choice for industrial, commercial, and consumer electronics applications requiring effective surge protection. Manufactured in China, it meets international quality standards for reliability and performance.

This varistor provides high voltage surge protection with a clamping voltage of 2970 V. It has a capacitance of 460 pF ideal for transient voltage suppression. The device features a molded radial case with 2 pins and a 7.5 mm lead pitch.

Operates reliably between -40°C to 105°C with an energy rating of 335J. Constructed with metal material ensuring durability for industrial applications. Maximum AC voltage rating is 1100 V AC, with maximum DC voltage of 1465 V DC.

Suitable for surge protection against lightning, power contact, and power induction transients. Compact dimensions include 40 mm length, 16.5 mm diameter, and 5.2 mm thickness. Designed for use in electronic equipment requiring fast response overvoltage protection.

The product complies with RoHS standards and is manufactured in China. Browse the Electronics Components section for more surge protection devices and quality Varistors by Bourns at EnvMart.
