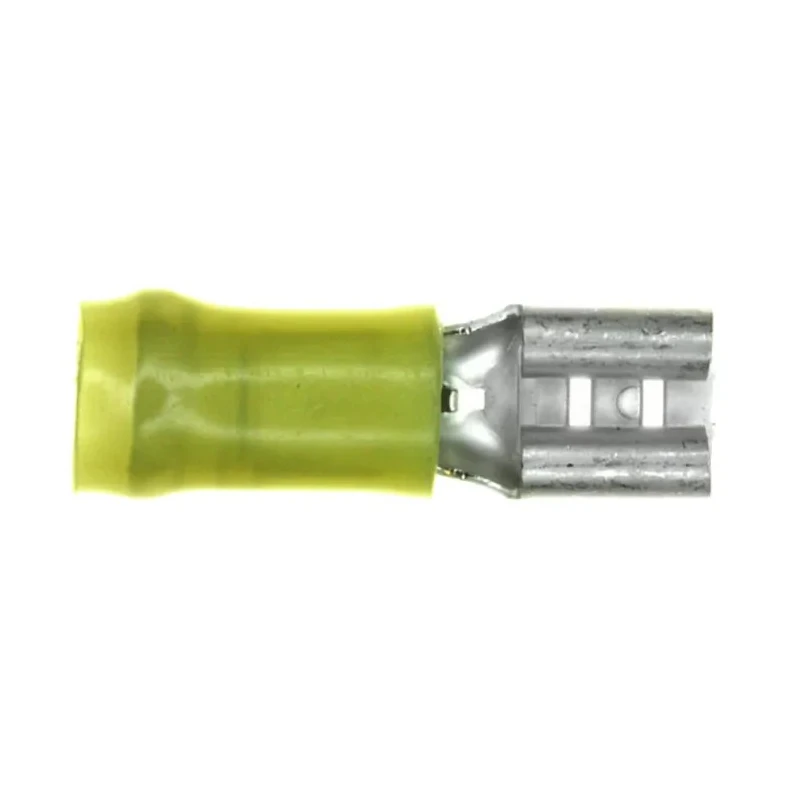

TE Connectivity PIDG FASTON .250 Yellow Insulated Female Spade Connector Crimp 12 AWG to 10 AWG 61198-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| Orientation | Straight |
| Model | 61198-2 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 1.012in |
| Contact Material | Phosphor Bronze |
| Series | PIDG FASTON .250 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 3mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.3mm |
| Tab Size | 0.3 x 0.032 in |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- The copper sleeve improves wire insulation support, reducing insulation damage after crimping.
- Serrations in the wire barrel provide maximum contact and tensile strength.
- Colour-coded yellow nylon insulation allows easy wire size identification.
- Designed with funnelled wire entry for fast and secure wire insertion.
- Suitable for use in instruments, control panels, lighting, power supplies, motors, aerospace, and appliances.
- Compliance with MIL-T-7928 Type II, Class 1 and 2 standards for quality assurance.
Product Description
TE Connectivity 61198-2 PIDG FASTON .250 Yellow Insulated Female Spade Connector is a precision-engineered crimp terminal designed for stable and durable wire connections. It facilitates crimp terminations for wire sizes from 12 AWG to 10 AWG, featuring an insulated yellow nylon sleeve for clear wire gauge identification.
The terminal features a high conductivity copper body with a copper sleeve that enhances insulation support after crimping, preventing damage to insulation and conductor. Serrations inside the wire barrel ensure maximum tensile strength and electrical contact reliability.
The PIDG receptacle terminals provide uniform crimping pressure via specialized tool dies, making them suitable for high-volume production lines with consistent quality. The funnelled wire entry design prevents wire strand damage and enables quick wire insertion.
These terminals are commonly applied in industrial, aerospace, automotive, and electronic equipment environments requiring secure and reliable electrical connections. High conductivity copper construction for excellent electrical performance.
Copper sleeve reinforces insulation support and reduces wire damage. Serrated barrel surface enhances tensile strength and contact reliability. Yellow nylon insulated sleeve for wire size 12 AWG to 10 AWG identification.
Funnelled wire entry facilitates quick and secure crimping operations. Suitable for critical applications in instrumentation, power supplies, and control panels. Meets or exceeds MIL-T-7928 Type II, Class 1 and 2 standards.
It belongs to the PIDG FASTON .250 series known for its durability and performance. The connector's overall length is 1.012 inches with a tab width of 6.35 mm and thickness of 0.3 mm.
Explore more from the Wire Terminals & Splices category on EnvMart for high-quality electrical connectors and terminals.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed for wire sizes from 12 AWG to 10 AWG, accommodating a minimum wire size of 3 mm² and a maximum wire size of 6 mm².
The connector features a high conductivity copper body and a phosphor bronze contact material, with a nylon insulation sleeve for added support.
The overall length of this connector is 1.012 inches, with a tab width of 6.35 mm and a tab thickness of 0.3 mm.
This unit utilizes a crimp termination type, which ensures a secure connection when properly crimped.
Yes, it is designed for high-volume production lines, providing uniform crimping pressure through specialized tool dies for consistent quality.
It meets or exceeds MIL-T-7928 Type II, Class 1 and 2 standards for quality assurance.
The connector has a straight orientation, which is typical for spade connectors.
It features a funnelled wire entry design that allows for quick and secure wire insertion, reducing the risk of damage to wire strands.
This model has an insulated nylon sleeve, which aids in wire size identification and provides additional insulation support.
The contact is plated with tin, which enhances its conductivity and corrosion resistance.
It is suitable for use in instruments, control panels, lighting, power supplies, motors, aerospace, and appliances.
The serrations inside the wire barrel provide maximum contact and tensile strength, ensuring reliable electrical connections.
