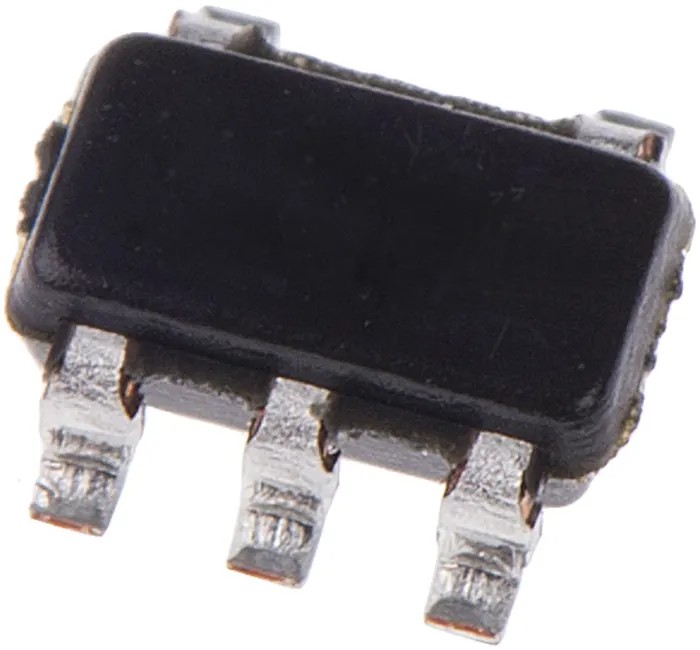

STMicroelectronics Operational Amplifier 16 MHz Gain Bandwidth Product, 5-Pin SOT-23, 4-16V TSX9291ILT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier 16 MHz Gain Bandwidth Product, 5-Pin SOT-23, 4-16V TSX9291ILT

Name: STMicroelectronics Operational Amplifier 16 MHz Gain Bandwidth Product, 5-Pin SOT-23, 4-16V TSX9291ILT
Brand: STMicroelectronics
SKU: 379563
Price: 2.19 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.3mm
Length	3mm
Model	TSX9291ILT
Width	1.75mm
Mount Type	Surface
Series	TSX9291
Output Current	13mA
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	RoHS
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	16V
Minimum Supply Voltage	4V
GBP - Gain Bandwidth Product	16MHz
Input Bias Current	200 pA
Vos - Input Offset Voltage	5 mV
Slew Rate	30V/μs
ESD high tolerance	4 kV (HBM)
Gain bandwidth product	16 MHz typical (16 V)
Extended temperature range	-40°C to +125°C

Key Features

Operates on a supply voltage range of 4 V to 16 V ensuring wide compatibility.
Single-channel device with low input bias and offset currents for precision applications.
High slew rate of 30 V/μs supports fast signal changes.
Compact dimensions of 3 mm length, 1.75 mm width, and 1.3 mm height.
Automotive grade with AEC-Q100 qualification and extended temperature range from -40°C to 125°C.
Low typical power consumption of 2.8 mA at 16 V supply voltage.
Rail-to-rail input/output stage enabling operation near supply rails.
High ESD tolerance of 4 kV (HBM) for robust industrial performance.

Product Description

STMicroelectronics TSX9291ILT is a high-performance operational amplifier with a 16 MHz gain bandwidth product and rail-to-rail input/output, engineered for precision signal conditioning in demanding industrial, automotive, and consumer electronics applications. Packaged in a compact 5-pin SOT-23 surface mount package, it operates efficiently over a wide supply voltage range of 4 V to 16 V.

This device delivers a low input bias current of 200 pA and a minimal input offset voltage of 5 mV, ideal for high-accuracy tasks. It has a fast slew rate of 30 V/μs, allowing it to respond to rapid input signal changes effectively.

Featuring an extended operating temperature range from -40°C to 125°C and automotive qualification (AEC-Q100), the TSX9291ILT is designed for reliable operation in harsh environments including automotive electronics and industrial controls.

Its compact dimensions (3 mm x 1.75 mm x 1.3 mm) make it suitable for dense PCB layouts. With a typical low power consumption of 2.8 mA at 16 V, it is optimized for energy-efficient designs.

Operates with supply voltages from 4 V up to 16 V. Single channel operational amplifier with 5 pins in SOT-23 package. Rail-to-rail input/output for maximum signal swing. Input bias current as low as 200 pA and offset voltage of 5 mV.

High slew rate of 30 V/μs ensures quick response times. Automotive AEC-Q100 qualification for robust use cases. Extended temperature range supports applications from -40°C to 125°C. 4 kV ESD tolerance enhances device durability.

The TSX9291ILT Operational Amplifier is highly suitable for industrial, automotive, instrumentation, and consumer electronics applications requiring precision amplification, low noise, and compact form factor. This product is RoHS compliant, assuring its adherence to environmental standards.
