STMicroelectronics Operational Amplifier 900 kHz 5.5V 2-Channel 8-Pin DFN TSX562IQ2T

Free Delivery in India | Lowest Global Shipping Charges

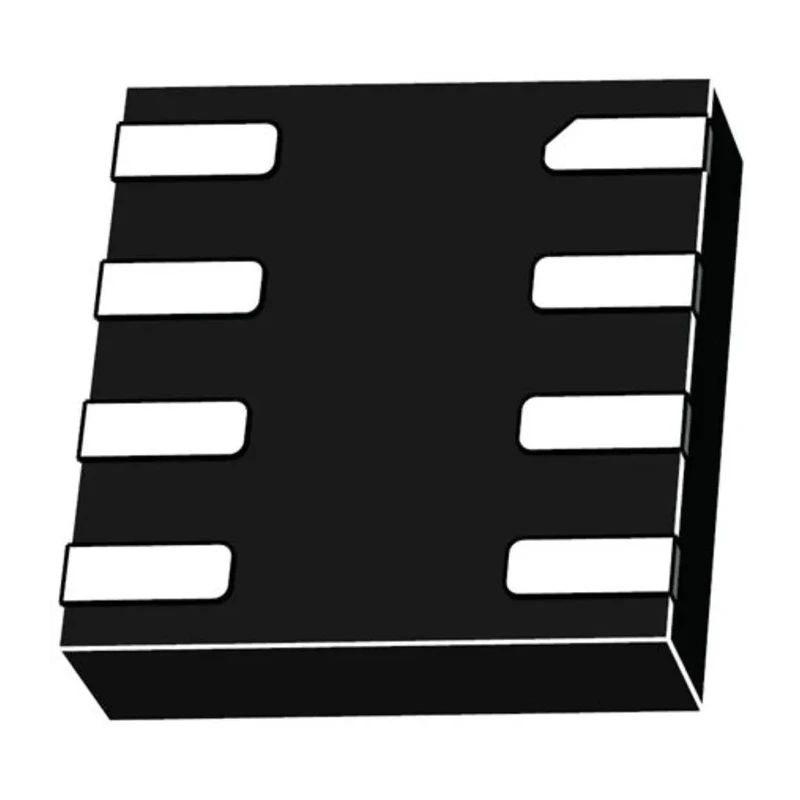

STMicroelectronics Operational Amplifier 900 kHz 5.5V 2-Channel 8-Pin DFN TSX562IQ2T

Name: STMicroelectronics Operational Amplifier 900 kHz 5.5V 2-Channel 8-Pin DFN TSX562IQ2T
Brand: STMicroelectronics
SKU: 379556
Price: 1.81 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	0.75mm
Length	2mm
Model	TSX562IQ2T
Width	2mm
Mount Type	Surface
Series	TSX562
Output Current	2.5mA
Maximum Operating Temperature	125°C
Package Type	DFN
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
GBP - Gain Bandwidth Product	900kHz
Input Bias Current	200 pA
Vos - Input Offset Voltage	2.2 mV
Slew Rate	1.1V/μs
ESD high tolerance	4 kV
Gain bandwidth product	900 kHz typical
Wide temperature range	-40°C to +125°C
Low input bias current	1 pA typical

Key Features

The device operates at a gain bandwidth product of 900 kHz.
It supports supply voltages from 3 V to 5.5 V for flexible powering.
The amplifier features a low input bias current of 200 pA and low input offset voltage of 2.2 mV.
It has a slew rate of 1.1 V/μs ensuring responsive signal processing.
Designed to operate across a wide temperature range from -40°C to 125°C.
Compliant with RoHS standards and qualified to automotive AEC-Q100 specifications.
Compact 2mm x 2mm x 0.75mm DFN surface mount package for space-saving PCB designs.
Outputs a maximum current of 2.5 mA for effective drive capability.

Product Description

STMicroelectronics TSX562IQ2T is a dual-channel precision operational amplifier designed for demanding industrial and automotive applications. Its micro-power characteristics include a typical supply current of 235 μA at 5 V, making it energy efficient for battery-operated and low power systems.

The component operates over a wide temperature range from -40°C to 125°C, ensuring robustness in harsh environmental conditions. It offers a gain bandwidth product of 900 kHz and a slew rate of 1.1 V/μs for accurate and responsive signal amplification.

Its input bias current and offset voltages are minimized for high precision analog signal processing. The device is housed in a compact 8-pin DFN package measuring 2 mm by 2 mm with a height of 0.75 mm, suitable for space-constrained circuit designs.

Designed to meet automotive-grade standards including AEC-Q100, the amplifier also boasts high ESD tolerance of 4 kV, improving operational reliability. This operational amplifier finds use in various sectors including industrial controls, automotive electronics, instrumentation, and general semiconductor applications requiring low noise and precision.

The device features a gain bandwidth of 900 kHz. Operating supply voltage range is 3 V to 5.5 V. Offers a low input bias current of 200 pA. Wide temperature operation from -40°C to 125°C. Compliant with RoHS directives and automotive standards.

Compact surface mount DFN package. Maximum output current of 2.5 mA. High ESD protection at 4 kV.

STMicroelectronics TSX562IQ2T is engineered to support precision analog amplification in industrial, automotive, and electronics manufacturing contexts. It is ideal for applications demanding low power consumption, temperature resilience, and high accuracy performance.
