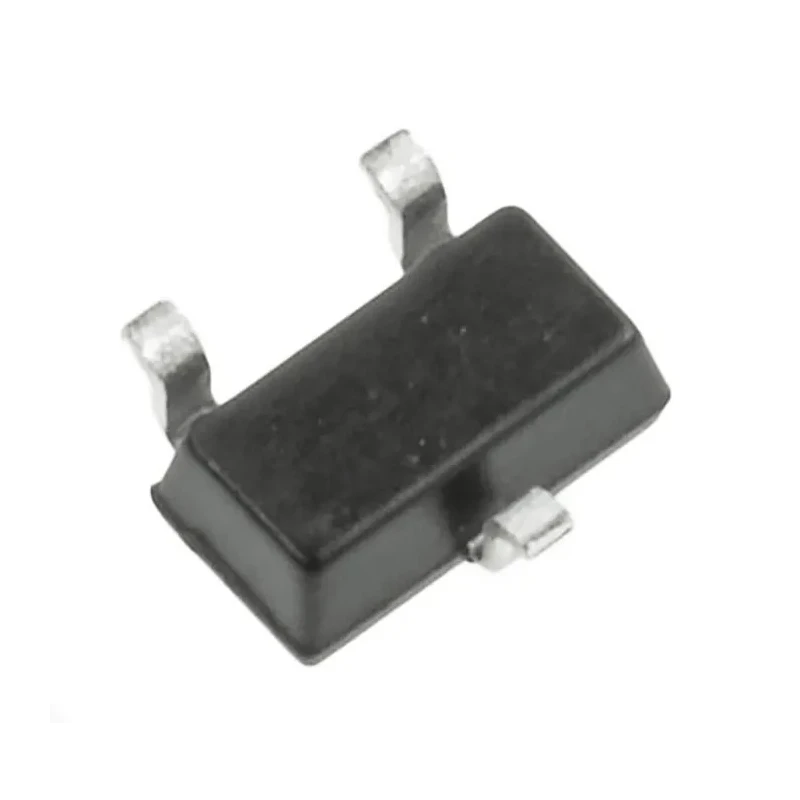

DiodesZetex Surface Hall Effect Sensor 3 V to 8 V, CMOS Technology, SC-59 Package, 3-Pin AH49FNTR-G1

DiodesZetex AH49FNTR-G1 is a high-performance Surface Hall Effect Sensor designed utilizing CMOS technology to provide accurate linear response to magnetic fields. Its compact SC-59 surface-mount package with three pins enables seamless PCB integration in electronics requiring position or proximity sensing.

This sensor’s operational voltage range between 3 V and 8 V makes it suitable for a variety of power supply configurations. The sensitivity of 2.1 mV/g allows fine measurement of magnetic influences in automotive, industrial, consumer, and other electronics applications. Its low supply current of 3 mA ensures efficient power consumption without compromising performance.

The AH49FNTR-G1 maintains excellent functionality across a broad temperature span of -40°C to 105°C, assuring robust operation in harsh environments frequently encountered in industrial and automotive contexts. Its RoHS compliance underlines manufacturing adherence to environmental safety protocols.

Typical applications include non-contact switching, proximity detection, and position sensing where high reliability and precision are critical. The surface mount design facilitates high-speed automated assembly, enhancing manufacturing throughput.

Packaged in the SC-59 form factor with dimensions 3.1 mm length, 1.7 mm width, and 1.3 mm height, this sensor is optimized for compact electronic designs requiring minimal footprint.

This sensor offers high sensitivity of 2.1 mV per gauss for precise position and proximity detection. Compact SC-59 package measures 3.1 mm length, 1.7 mm width, and 1.3 mm height ensuring easy PCB integration. Operates reliably in a wide temperature range from -40°C to 105°C for demanding industrial environments.

Draws a low supply current of 3 mA, enabling energy-efficient applications. The device complies with RoHS standards endorsing environmental safety and sustainability. Ideal for non-contact switching, position sensing, and proximity detection in automotive, industrial, and consumer electronics.

Streamlines production processes by enabling automated insertion into machinery with its surface mount configuration. Explore the full range of Sensor ICs at EnvMart for comprehensive solutions in electronic sensing and control.
