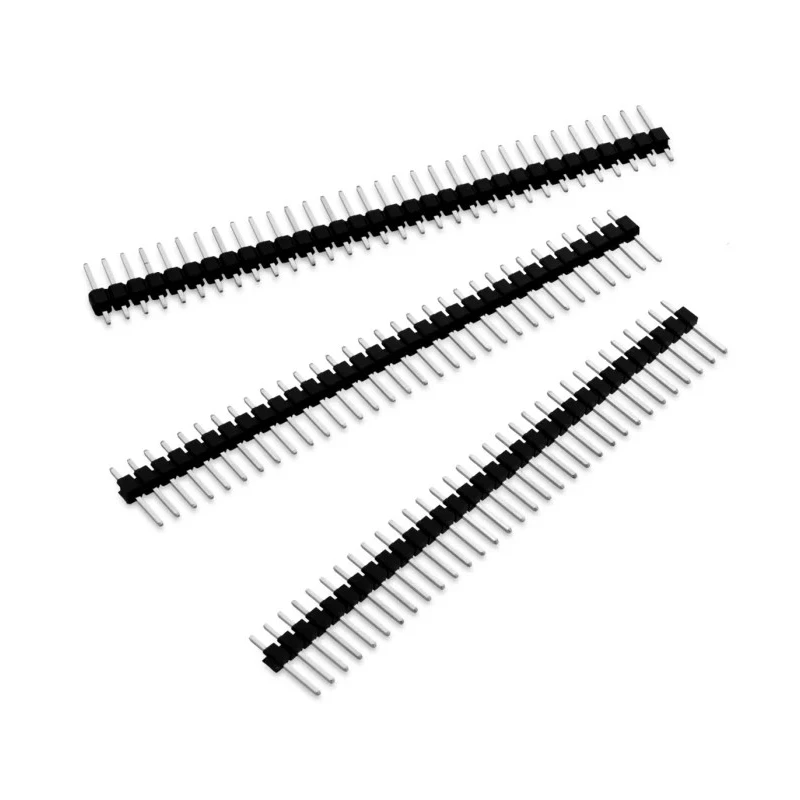

Wurth Elektronik WR-PHD Series Straight Through Hole Pin Header, 13 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 61301311121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 13 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6mm |
Key Features
- This straight through hole pin header features 1 row and unshrouded design.
- Contacts are gold plated copper alloy for reliable conductivity.
- Mount type is through hole with a tail pin length of 3 mm and mating pin length of 6 mm.
- Housing material is polyamide with black UL94-V0 PBT insulator for durability.
- Operates reliably from -40°C to 105°C with a voltage rating of 250 V and current rating of 3 A.
- Designed for board-to-board connector systems in electronic applications.
- Termination type is solder with male contact gender.
- Made in Taiwan, Province Of China, ensuring quality manufacturing standards.
Product Description
Wurth Elektronik 61301311121 WR-PHD Series is a high-quality pin header connector designed for electronic board-to-board connections. This model features 13 gold plated copper alloy contacts arranged in a single straight row with a 2.54 mm pitch, providing reliable signal and power transmission.
The connector utilizes a through-hole mount type with a robust polyamide housing resistant to heat and mechanical stress, rated to operate between -40°C to 105°C. The tail pin length of 3 mm and mating pin length of 6 mm facilitate secure solder termination and durable mating cycles.
With a voltage rating of 250 V and a current carrying capacity of 3 A, this unshrouded pin header is suitable for a diverse array of electronic devices, industrial equipment, and PCB assemblies requiring dependable board interconnection.
The WR-PHD series emphasizes safety and durability, featuring a black UL94-V0 PBT insulator housing, meeting industry standards without specific approvals, ideal for varied industrial, manufacturing, and commercial electronics applications.
This straight through hole pin header features 1 row and unshrouded design. Contacts are gold plated copper alloy for reliable conductivity. Mount type is through hole with a tail pin length of 3 mm and mating pin length of 6 mm.
Housing material is polyamide with black UL94-V0 PBT insulator for durability. Operates reliably from -40°C to 105°C with a voltage rating of 250 V and current rating of 3 A. Designed for board-to-board connector systems in electronic applications.
Termination type is solder with male contact gender. Made in Taiwan, Province Of China, ensuring quality manufacturing standards.
Choose Wurth Elektronik WR-PHD series for precision PCB header connectors with proven reliability and performance. Explore more PCB connector options on EnvMart to suit varying industrial and electronics design requirements.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm.
This model features 13 contacts.
The maximum operating temperature for this pin header is 105°C.
The voltage rating of this connector is 250 V.
This pin header uses solder termination.
The tail pin length of this model is 3 mm.
The housing of this pin header is made from polyamide.
The current rating for this pin header is 3 A.
This pin header is unshrouded.
The mating pin length of this model is 6 mm.
This pin header supports board-to-board connector systems.
This pin header is manufactured in Taiwan, Province Of China.
