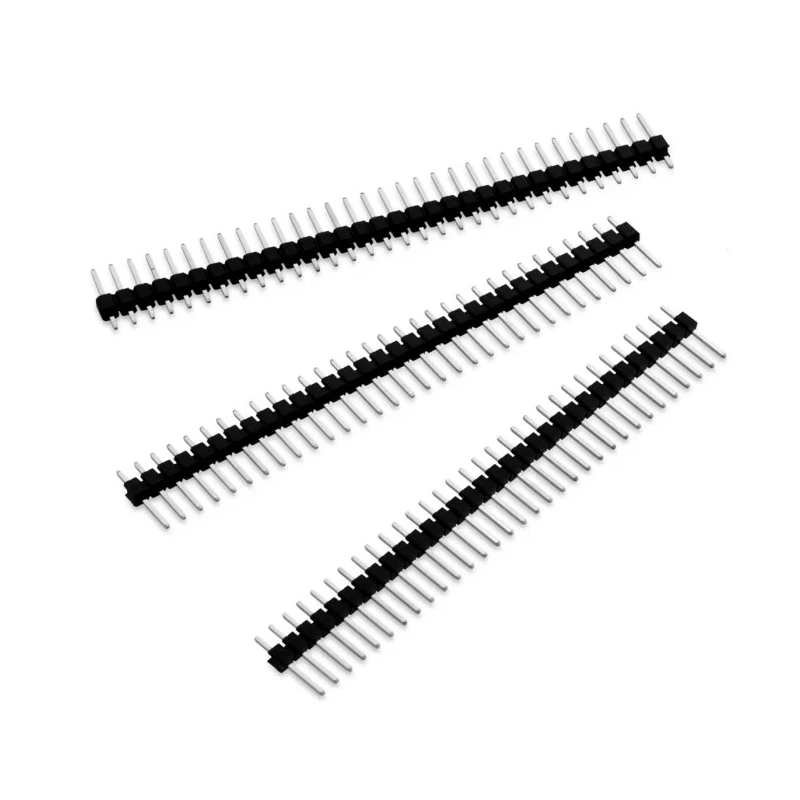

Wurth Elektronik WR-PHD Series Straight Through Hole Pin Header 12 Contacts 2.54mm Pitch 1 Row 250V 3A 61301211121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6mm |
Key Features
- Constructed with gold-plated copper alloy contacts for excellent conductivity.
- Features a black polyamide housing that meets UL94-V0 flammability requirements.
- Designed as a 1-row, unshrouded, male pin header for easy insertion.
- Rated for 3 amps current and 250 volts operating voltage.
- Has a contact pitch and row pitch of 2.54 mm, compatible with standard PCBs.
- Suitable for through-hole mounting ensuring sturdy mechanical and electrical connection.
- Operates reliably in temperatures from -40°C up to 105°C.
- Tail pin length of 3 mm and mating pin length of 6 mm for secure insertion.
Product Description
Wurth Elektronik 61301211121 WR-PHD Series Straight Through Hole Pin Header is a high-quality electronic connector designed for board-to-board applications. This unshrouded male header features 12 gold-plated copper alloy contacts arranged in a single row with a 2.54 mm pitch and row pitch, delivering dependable electrical conductivity and robust mechanical strength.
The housing is molded from black polyamide meeting the UL94-V0 standard, ensuring flame retardant properties and insulating performance. The connector supports a current rating of 3 amps and an operating voltage up to 250V, suitable for a wide range of industrial and commercial electronic equipment.
The through-hole mount design allows for secure and reliable attachment to printed circuit boards (PCBs). This connector operates within a wide temperature range of -40°C to 105°C, making it suitable for various harsh environmental conditions in industrial, manufacturing, automation, telecommunications, and other electronic assembly use cases.
The 3 mm tail pin length and 6 mm mating pin length provide solid engagement for reliable mating cycles without risk of damage. Produced under stringent quality controls in Taiwan, this pin header is built for durability and high performance.
Constructed with gold-plated copper alloy contacts for excellent conductivity. Black polyamide housing with UL94-V0 flame retardance. Single row, 12 contact design with 2.54 mm pitch for standard PCB compatibility. Through-hole solder termination style for secure mounting.
Rated for 3A current and 250V operating voltage. Temperature rating from -40°C to 105°C for wide industrial applicability. Male contact gender and unshrouded style facilitate versatile connection options. Robust mechanical strength and reliable electrical performance.
This WR-PHD Series pin header is ideal for PCB connections in industrial, automation, telecommunications, instrumentation, and electronics manufacturing environments. It offers precise pitch, reliable mating, and excellent electrical conductivity, supporting the efficient design of inter-board connections.
Explore more high-quality PCB headers and connectors to complement your electronic assemblies with EnvMart’s extensive catalog.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3 amps and an operating voltage of 250 volts.
The contact pitch and row pitch of this pin header is 2.54 mm, making it compatible with standard PCBs.
It operates reliably in temperatures ranging from -40°C to 105°C, suitable for various industrial applications.
This pin header features 12 contacts, arranged in a single row.
It is constructed with gold-plated copper alloy contacts and a black polyamide housing that meets UL94-V0 flammability requirements.
This model supports through-hole mounting, ensuring a sturdy mechanical and electrical connection to printed circuit boards.
The tail pin length is 3 mm, providing secure insertion into the PCB.
The mating pin length is 6 mm, which allows for reliable mating cycles.
It is designed as a board-to-board connector system, facilitating inter-board connections.
This model is an unshrouded male pin header, which allows for easy insertion.
This product is manufactured in Taiwan, ensuring quality control during production.
The termination type is solder, which is standard for securing connections on PCBs.
