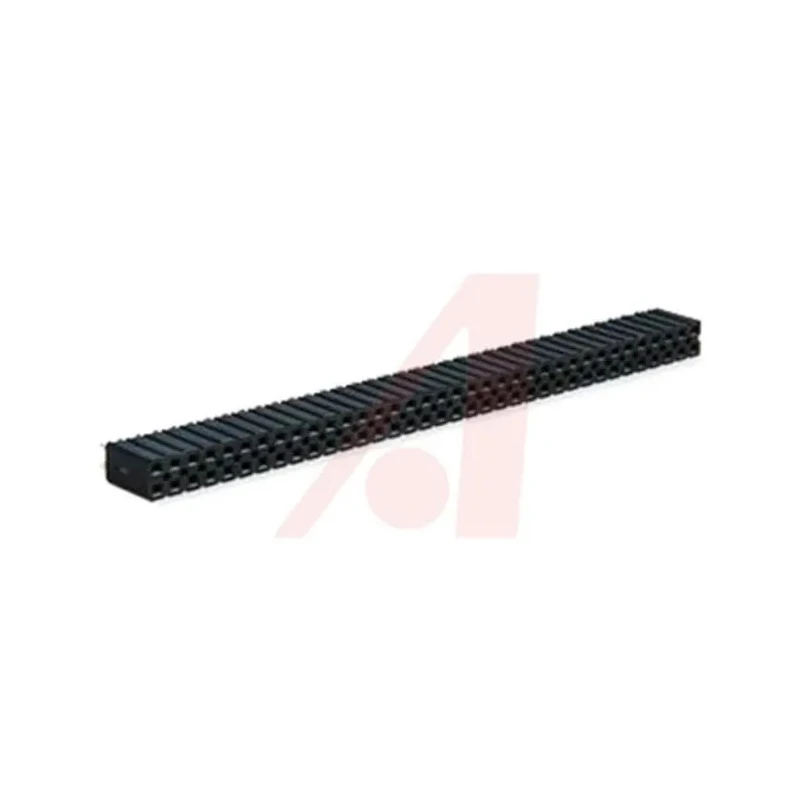

3M 929 Series Straight Through Hole PCB Socket, 72-Contact, 2 Row, 2.54 mm Pitch, Solder Termination 929975-01-36-RK

Free Delivery in India | Lowest Global Shipping Charges

3M 929 Series Straight Through Hole PCB Socket, 72-Contact, 2 Row, 2.54 mm Pitch, Solder Termination 929975-01-36-RK



Category PCB Socket Brand 3M Condition New

Specifications

Country of Origin	United States
Voltage	1.5kV
Brand	3M
Orientation	Straight
Current	12A
Model	929975-01-36-RK
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Copper
Series	929
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board Mount
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
headers	36 Way
Contact Plating	Nickel
Number of Contacts	72
Contact Gender	Female
Flammability	UL 94V-0
Sockets	2 Way to 36 Way

Key Features

Designed with a 2.54 mm pitch for precise PCB integration.
Features a straight orientation for through-hole mounting.
Constructed using durable glass filled polyester housing.
Rated for 12A current capacity and withstands up to 1.5 kV voltage.
Contacts are made of copper with nickel plating to ensure reliable conductivity.
Operating temperature range from -40°C to 105°C for versatile applications.
Female contact gender ensures compatibility with headers.
Compliance to UL 94V-0 flammability standard enhances safety.

Product Description

3M 929975-01-36-RK is a high-quality 929 Series straight through hole PCB socket engineered for electronic applications requiring reliable board mounting connectors. The socket contains 72 contacts arranged in 2 rows with a 2.54 mm pitch, optimized for through-hole soldering techniques. Its housing is made from glass filled polyester (PBT), providing excellent mechanical strength and heat resistance suitable for industrial environments.

The socket supports a current rating of 12A and can safely operate up to 1.5 kV voltage, accommodating power and signal applications. Copper alloy contacts with nickel plating provide efficient conductivity and corrosion resistance. The component is designed with female contacts for mating with pin headers, making it an integral part of PCB interconnect systems.

Operating temperature specifications range from -40°C to 105°C, ensuring dependable performance in harsh conditions common in industrial, manufacturing, and laboratory settings. The product meets the UL 94V-0 flammability standard, reflecting its suitability for rigorous safety requirements.

This PCB socket is manufactured in the United States, underlining its quality assurance processes. It is widely used in power connectors, PCB connector assemblies, and other electronic interconnection solutions where durability and electrical integrity are critical.

Designed with a 2.54 mm pitch for precision circuit board fitment. Provides high current capacity with 12A rating for robust power applications. High temperature resistant housing constructed from glass filled polyester.

Nickel-plated copper contacts ensure long-term conductivity. Compliance with UL 94V-0 for enhanced safety and flame resistance. Female contact gender compatible with corresponding header pins. Wide operating temperature range from -40°C to 105°C supports industrial usage.

Manufactured in the United States ensuring consistent quality standards.

Ideal for use in electronic components, power connectors, and PCB socket applications in demanding industrial and manufacturing environments. Explore more PCB Sockets and related connectors at EnvMart to find solutions tailored for your electrical assembly needs.
