Microchip Operational Amplifier, 1 MHz Gain Bandwidth, 4-Channel, 14-Pin SOIC, 1.8V-6V MCP6004T-I/SL

Microchip MCP6004T-I/SL is a highly versatile Operational Amplifier designed for precision amplification in industrial, electronic component assembly, signal conditioning, and instrumentation applications. The device features four independent amplifiers integrated in a single 14-pin SOIC surface mount package, providing compact multi-channel analog signal processing.

With a gain bandwidth product of 1 MHz and supply voltage compatibility ranging from 1.8V to 6V, this operational amplifier allows for low power consumption while maintaining high signal fidelity. Its low input bias current of 19 pA and minimal input offset voltage of 4.5 mV make it ideal for applications requiring high accuracy and stability.

The operating temperature range from -40°C to 85°C assures dependable performance across temperature variations typical in automotive electronics, consumer electronics, and industrial control systems. The device’s slew rate of 0.6 V/µs supports moderate speed signals, suitable for general-purpose amplification needs.

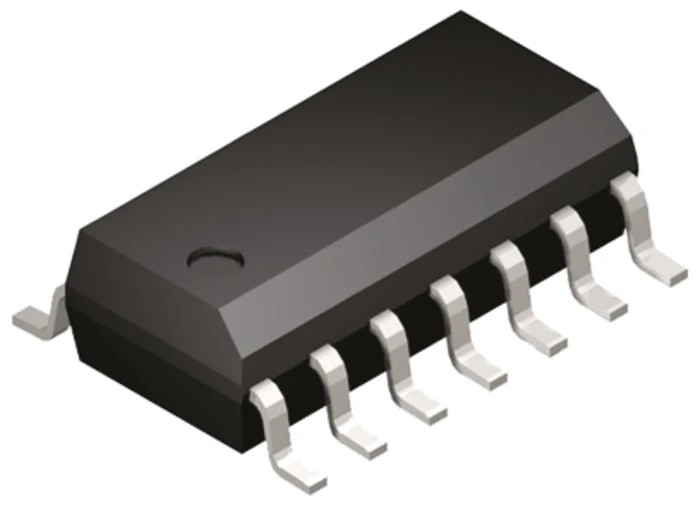

The MCP6004 series complies with RoHS standards, reflecting environmental compliance in manufacturing and material selection. Its output current capacity of 30 mA enables driving a variety of loads effectively. The SOIC package dimensions (8.65mm length, 3.9mm width, 1.5mm height) provide ease of PCB integration with surface mount technology.

This amplifier is not designed for automotive standard compliance, which should be considered when deploying in automotive systems. Originating from Thailand, Microchip offers this part for electronic manufacturing, laboratory testing, research, and development uses, ensuring robust, reliable analog amplification.

Features a 1 MHz gain bandwidth product for high-speed amplification. Operates from a wide voltage range of 1.8V to 6V for flexible power supply options. Comes in a 14-pin SOIC package suitable for surface mount applications.

Includes 4 independent amplifier channels within the device. Offers low input bias current of 19 pA and very low input offset current of 1 pA for precision. Input offset voltage is approximately 4.5 mV, enabling accurate signal processing.

Slew rate of 0.6 V/µs supports moderate speed signal changes. Operating temperature range from -40°C to 85°C ensures reliability in harsh environments. Output current capability up to 30 mA supports various load requirements.
