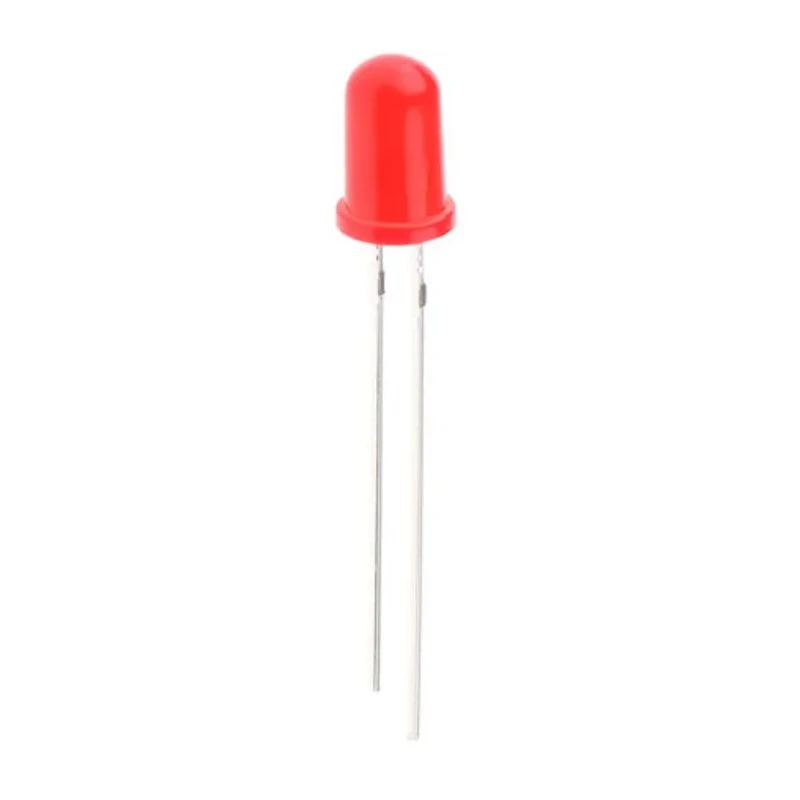

Wurth Elektronik 2.5 V Red LED 5 mm Through Hole Diffused Lens WL-TMRC 151051RS11000

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 2.5 V Red LED 5 mm Through Hole Diffused Lens WL-TMRC 151051RS11000

Name: Wurth Elektronik 2.5 V Red LED 5 mm Through Hole Diffused Lens WL-TMRC 151051RS11000
Brand: Wurth Elektronik
SKU: 376385
Price: 0.19 USD
Availability: InStock



Category LED Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Model	151051RS11000
Packaging	Bulk
Mount Type	Through Hole
Series	WL-TMRC
Maximum forward current	30mA
Viewing angle	60 °
Package Type	5 mm
Lens Colour	Red
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	645nm
Forward Voltage	2.5V
Number of Pins	2
LED Luminosity	30 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	4.9 (Dia.) x 8.7 mm
Lens Shape	Round
Lens Finish	Diffused

Key Features

Red LED with a dominant wavelength of 645 nm.
Maximum forward current rating of 30 mA ensures efficient operation.
5 mm through-hole package with round, diffused lens for wide viewing angle.
Viewing angle of 60 degrees provides broad light dispersion.
Maximum power dissipation of 75 mW.
Forward voltage of 2.5 V for low power consumption.
Two pins with 2.54 mm pitch and PCB stand-offs for easy mounting.
Lens dimensions approximately 4.9 mm diameter by 8.7 mm length.

Product Description

Wurth Elektronik 151051RS11000 is a 2.5 V Red LED designed as a 5 mm through-hole round LED with a diffused lens finish. It features a dominant wavelength of 645 nm, providing bright red light with high luminous efficacy. Suitable for various electronic and industrial uses, this LED offers a maximum forward current of 30 mA and a forward voltage of 2.5 V ensuring low energy consumption and efficient performance.

The LED comes in a standard 5 mm through-hole package with a round diffused lens, offering a wide 60-degree viewing angle, making it ideal for indicator lights, backlighting LCDs, switch illumination, indoor/outdoor messaging, and other industrial control applications. The lens dimensions measure approximately 4.9 mm in diameter and 8.7 mm in length, with a two-pin configuration spaced at 2.54 mm (0.1 in) pitch with PCB stand-offs to facilitate mounting and assembly.

This LED has a maximum power dissipation rating of 75 mW and has been designed for high reliability and long operating life. It produces no UV or IR radiation, making it safe and environmentally friendly. The product is RoHS compliant and manufactured in China under strict quality controls.

Red LED with dominant wavelength 645 nm. Maximum forward current of 30 mA. Standard 5 mm through-hole round package. Forward voltage of 2.5 V. Viewing angle 60 degrees. Lens dimensions 4.9 mm diameter by 8.7 mm length. High luminous intensity of 30 mcd.

RoHS compliant and environmentally safe. PCB stand-offs for easy mounting. Manufactured for industrial, electronic components, indicator lights, and display applications.

This 5 mm Red Through Hole LED from Wurth Elektronik fits wide-ranging electronics needs including indicator lights, industrial displays, and backlighting. It is ideal for industrial, laboratory, manufacturing, and commercial applications requiring robust, reliable visible-light LEDs. Browse the EnvMart catalog for more electronics components and LEDs suitable for your projects.
