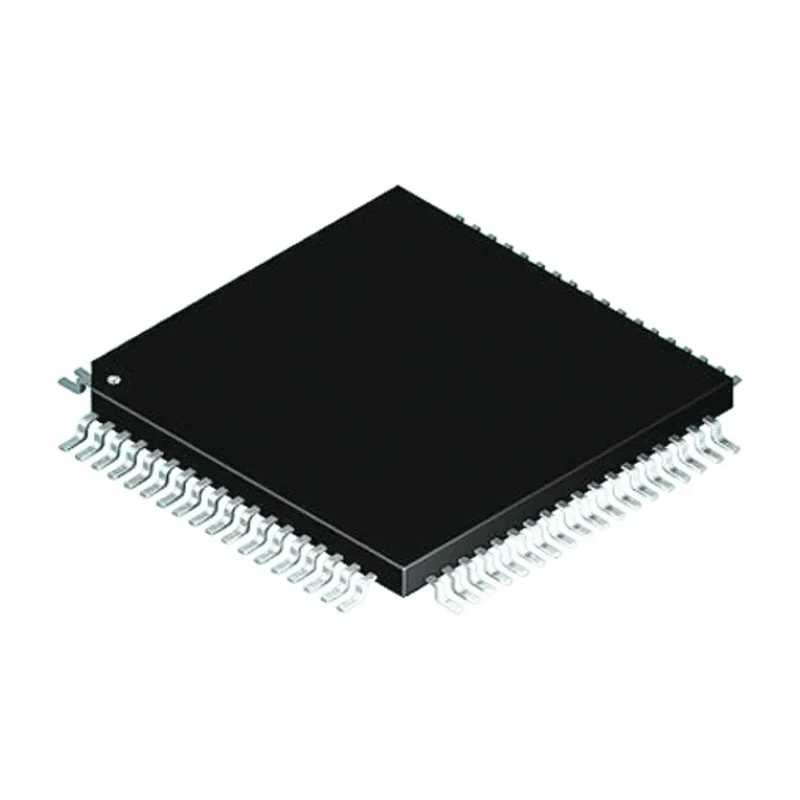

Microchip dsPIC30F6014A-20E/PT 16-bit Digital Signal Processor 40 MHz 144kB FLASH DSPIC30F6014A-20E/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | DSPIC30F6014A-20E/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | dsPIC30F6011A/6012A/6013A/6014A |
| Maximum Operating Temperature | 125°C |
| Number Of Cores | 1 |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| ISO 9001 | 2000, CAN 2.0B, ISO/TS-16949:2002 |
| Ram size | 8.192kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 80 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 144kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Standards/ApprovalsISO 9001 | 2000, CAN 2.0B, ISO/TS-16949:2002 |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| PWM Resolution | 16bit |
| ADC Channels | 16 |
| Number of PWM Channels | 8 |
Key Features
- Operates at a maximum clock frequency of 40 MHz providing high-speed processing.
- Features 144 kB of FLASH program memory with 8.192 kB RAM for robust program storage.
- Incorporates a 16-bit data bus width and single-core RISC architecture.
- Supports 8 PWM channels and 16 ADC channels with 12-bit ADC resolution for versatile control applications.
- Includes 5 timers with 16-bit resolution enabling precise timing and scheduling.
- Functions over a wide supply voltage range from 3 V to 5.5 V.
- Compact TQFP package with 80 pins, dimensions 12 mm x 12 mm x 1.05 mm.
- Suitable for industrial and automotive control systems with operating temperatures from -40°C to 125°C.
Product Description
Microchip DSPIC30F6014A-20E/PT is a 16-bit digital signal processor operating at 40 MHz with 144kB of FLASH memory, optimized for applications requiring high performance digital signal control. This digital signal controller combines the capabilities of a DSP with the simplicity of a microcontroller, featuring a single-core RISC architecture and enhanced peripherals.
It supports an extensive range of industrial and automotive applications, including motor control, digital power conversion, and audio/speech processing. The device functions effectively over a wide supply voltage range from 3 V to 5.5 V, with an operating temperature range from -40°C to 125°C, making it suitable for harsh environments.
The DSPIC30F6014A-20E/PT includes 8 PWM channels and 16 ADC channels with 12-bit ADC resolution, supporting high precision analog signal conversion. It is housed in a compact 80-pin TQFP package with dimensions of 12 mm by 12 mm and a height of 1.05 mm, allowing efficient PCB layout and space-saving designs.
Operates at a maximum clock frequency of 40 MHz delivering 30 MIPS performance. Program memory size of 144kB FLASH and RAM size of 8.192 kB. Features 8 PWM channels and 16 ADC channels with 12-bit resolution. Includes 5 timers with 16-bit resolution and 8 PWM units.
Supports supply voltage ranging from 3 V minimum to 5.5 V maximum. Compact surface mount TQFP package with 80 pins. Operating temperature from -40°C to 125°C for rugged environment applications. Meets ISO 9001:2000, CAN 2.0B, and ISO/TS-16949:2002 quality and automotive standards.
This high-performance dsPIC30F series digital signal processor is designed to deliver computation power for smart sensing applications, advanced motor control algorithms, speech, and audio functionalities. It is ideal for industrial automation, automotive electronics, and power management solutions.
Explore the full range of Microchip Digital Signal Processors and components for efficient and reliable industrial and automotive designs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the dsPIC30F6014A-20E/PT is 40 MHz.
It features a program memory size of 144 kB FLASH.
This model supports 16 ADC channels with a 12-bit ADC resolution.
It operates over a temperature range from -40°C to 125°C.
The device functions effectively over a supply voltage range from 3 V to 5.5 V.
It includes 8 PWM channels.
The TQFP package has dimensions of 12 mm x 12 mm x 1.05 mm.
This model utilizes a single-core RISC architecture.
It includes 5 timers with 16-bit resolution.
The RAM size is 8.192 kB.
It meets ISO 9001:2000, CAN 2.0B, and ISO/TS-16949:2002 quality and automotive standards.
This digital signal processor is suitable for industrial and automotive control systems, including motor control and digital power conversion applications.
