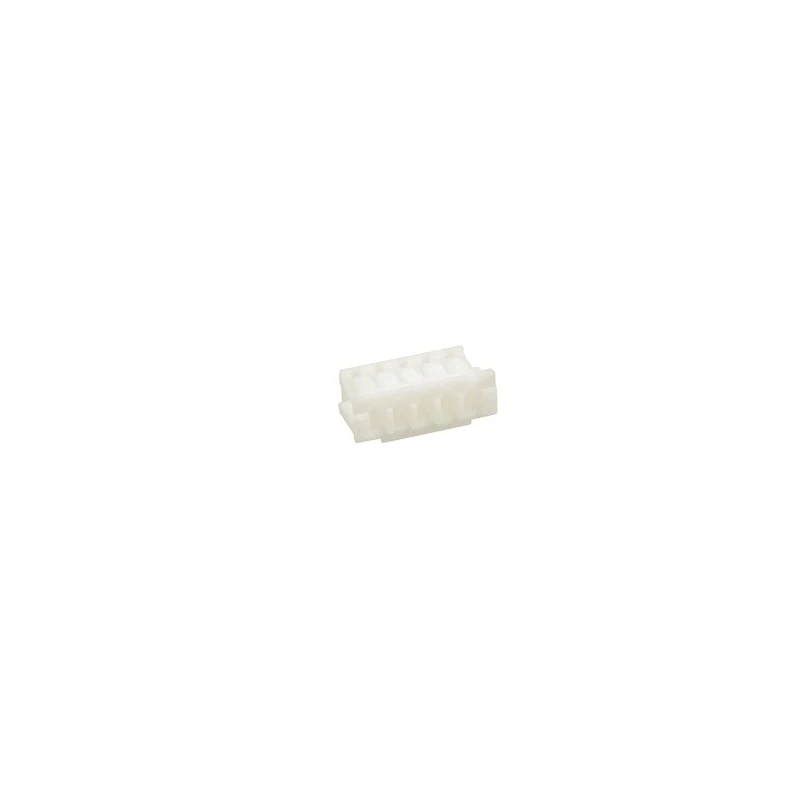

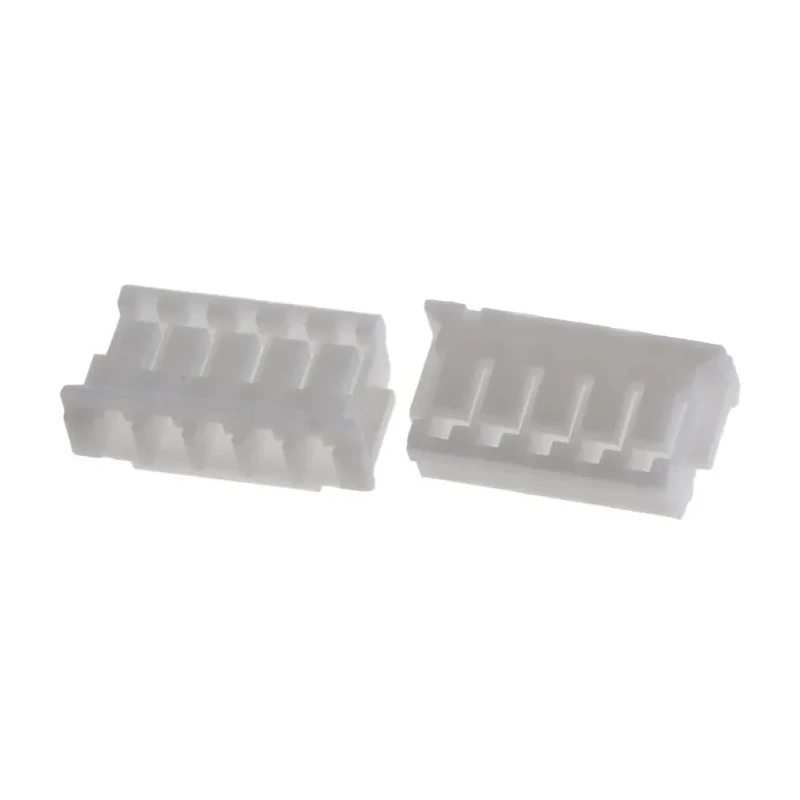

JST ZH Female Connector Housing 1.5 mm Pitch 5 Way 1 Row Straight ZHR-5

JST ZHR-5 female connector housing is a 1.5 mm pitch, 5 way, 1 row straight connector designed for cable mounting and used primarily with the ZH series dis-connectable crimp style connectors. Its compact polyamide construction offers durability and reliability for industrial and household electrical applications.

The housing measures 9 mm in length and 3.4 mm in width, making it ideal for space-constrained PCB layouts. It features visual confirmation of contact locking via integrated retention lances which enhance assembly assurance and reduce errors during installation.

This Connector Housing is UL Recognised (E60389), CSA Certified (LR20812), and TUV Certified (R9351092), testifying to its compliance with international quality standards. The design supports various wire-to-wire and wire-to-panel fitting configurations, providing versatile connectivity options.

Common applications include use in household appliances, industrial automation controls, storage solutions, and networking equipment. The ZH series is known for its low profile and space-saving pitch of 1.5 mm, suitable for modern compact electronics.

The housing is manufactured from polyamide which ensures electrical insulation and mechanical strength. Retention lances provide visual confirmation of secure contact locking. Approved by UL, CSA, and TUV for safety and performance compliance.

Compact dimensions allow for dense connector arrangements in PCB designs. Compatible with ZH series crimp contacts facilitating easy assembly and reliable connections. Explore more JST connector options on EnvMart for comprehensive power connector solutions tailored for industrial and electrical engineering applications.
