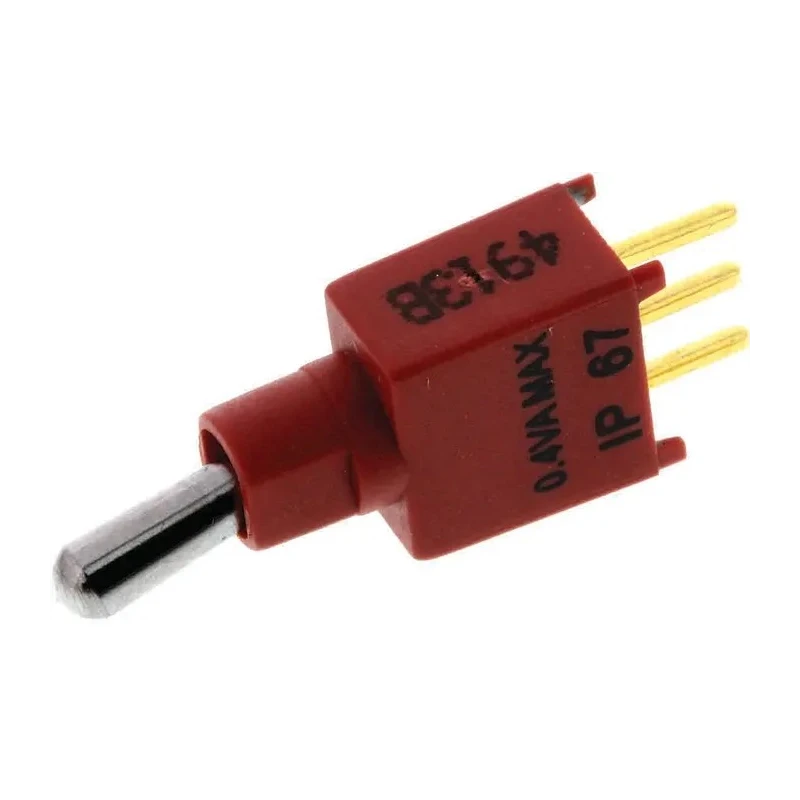

KNITTER-SWITCH Subminiature PCB Mount Toggle Switch SPDT On-Off-On 20 V DC 20 V AC TST 1 G
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 21.49mm |
| Length | 5.08mm |
| Model | TST 1 G |
| IP Rating | IP67 |
| Width | 8.13mm |
| Mount Type | PCB |
| Series | TST |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Dielectric strength | 1000 V, 50 Hz for 1 minute |
| Insulation resistance | 1000 MΩ min |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 6.1mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 50000Operations |
| Contact AC Voltage | 20V ac |
| Actuator Material | Gold Plated Copper |
Key Features
- Subminiature size suitable for tight PCB designs.
- Gold plated copper actuator ensures low contact resistance.
- IP67 rated fully sealed and washable construction.
- Mechanical life rating of 50,000 operations for long durability.
- Supports 400mA switch contact current for low power circuits.
- Through hole terminal type for secure PCB mounting.
- Operates within temperature range from -30°C to 85°C.
- Dielectric strength 1000 V at 50 Hz for 1 minute for high insulation.
Product Description
KNITTER-SWITCH TST 1 G is a subminiature PCB mount toggle switch designed for efficient switching in compact electrical and automation systems. Featuring SPDT contact configuration and On-Off-On operation, this toggle switch is suitable for low voltage applications supporting 20 V DC and 20 V AC.
The switch incorporates a gold plated copper actuator providing superior conductivity and low contact resistance, making it ideal for precise control circuits. Its through hole terminal ensures sturdy mounting on printed circuit boards in industrial and commercial electronics.
This toggle switch offers an IP67 rating, signifying full sealing against dust and water ingress, which makes it reliable even in harsh or washable environments. The mechanical life of 50,000 operations guarantees durability and sustained performance in frequent use settings.
Operating reliably between temperatures of -30°C and 85°C, it suits a wide range of environments. With insulation resistance of at least 1000 MΩ and dielectric strength of 1000 V at 50 Hz for 1 minute, it ensures safety and electrical isolation in sensitive instrumentation and control applications.
Subminiature size suitable for tight PCB designs. Gold plated copper actuator ensures low contact resistance. IP67 rated fully sealed and washable construction. Mechanical life rating of 50,000 operations for long durability.
Supports 400mA switch contact current for low power circuits. Through hole terminal type for secure PCB mounting. Operates within temperature range from -30°C to 85°C. Dielectric strength 1000 V at 50 Hz for 1 minute for high insulation.
Compact dimensions length 5.08mm, height 21.49mm, width 8.13mm. Suitable for industrial, automation, and electrical applications.
This KNITTER-SWITCH TST series toggle switch is ideal for electronics manufacturing, control panels, industrial automation, laboratory instrumentation, and consumer electronics requiring robust and compact switch solutions. Its combination of precision, reliability, and environmental protection make it a versatile choice in PCB mounted toggle switches.
Explore the full range of Toggle Switches and electrical components at EnvMart for comprehensive solutions to your industrial and electronic control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TST 1 G toggle switch features a Single Pole Double Throw (SPDT) contact configuration.
This model operates reliably within a maximum temperature range of 85°C.
The dielectric strength of this toggle switch is 1000 V at 50 Hz for 1 minute, ensuring high insulation.
It supports a switch contact current of 400mA, making it suitable for low power circuits.
The dimensions of this toggle switch are 5.08mm in length, 21.49mm in height, and 8.13mm in width.
It uses a through hole terminal type for secure PCB mounting.
The mechanical life rating is 50,000 operations, indicating its durability for frequent use.
The minimum operating temperature for this model is -30°C.
This toggle switch has an IP67 rating, meaning it is fully sealed against dust and water ingress.
The actuator is made of gold plated copper, which ensures low contact resistance.
The toggle switch complies with RoHS standards, ensuring it meets environmental regulations.
This toggle switch is suitable for applications in industrial automation, control panels, and consumer electronics.
