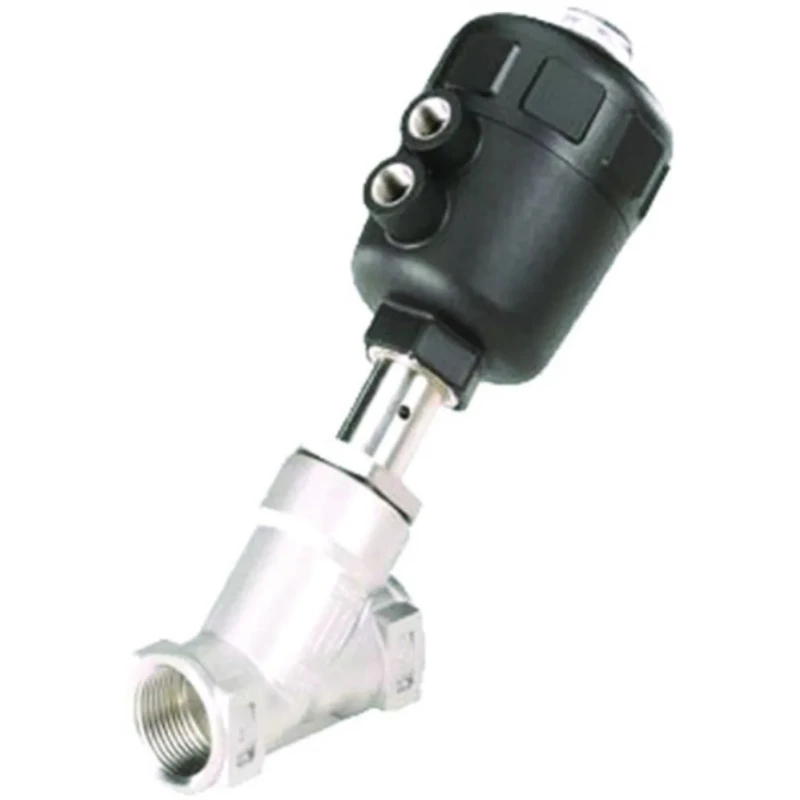

Burkert Angle Type Pneumatic Actuated Valve 1.5 in Threaded Stainless Steel Body 16 bar 187840
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Maximum Operating Pressure | 16 bar |
| Inlet Connection Type | Threaded |
| Model | 187840 |
| Valve Type | Angle |
| Ambient temperature range | - 10 to +60°C |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Valve Material | Stainless Steel |
| Inlet Port Size | 1.5 in |
| Default Valve Position | NC |
| Outlet Thread Standard | G |
| Return Type | Spring |
| Media temperature range | - 10 to +180°C |
| Burkert Angle Seat type Pneumatic Operated Process Valve, G 1-1/2in, 10 barBrand | Burkert |
Key Features
- Stainless steel angle seat valve with 1.5 inch threaded inlet and outlet.
- Normally closed configuration with spring return pneumatic actuator.
- Suitable for neutral gases, air, steam, water, oil, and aggressive fluids.
- Maximum operating pressure of 16 bar with high flow capacity.
- Ambient temperature range from -10°C to 60°C and media temperature up to 180°C.
- Polyamide actuator casing and PTFE seal for durability.
- Self-adjusting spindle packing glands and wiper seals ensure leak-tight operation.
- Compact design ideal for industrial fluid power and pipeline applications.
Product Description
Burkert 187840 Angle Type Pneumatic Actuated Valve features a 1.5 inch threaded stainless steel body designed for reliable control of fluid flow at pressures up to 16 bar.
This valve belongs to the Series 2000 of two-way pneumatically operated angle seat valves available in normally closed (NC) configuration with spring return type actuators for fail-safe operation.
The robust stainless steel construction ensures resistance to aggressive fluids as well as neutral gases, steam, water, and oil. The polyamide actuator casing combined with PTFE seals delivers durability and excellent chemical compatibility.
Its self-adjusting spindle packing glands and wiper seals provide extended service life and minimize leakage, supporting high flow rates from a compact valve design. Operating temperature ranges from -10°C to 60°C ambient with media temperature capability up to 180°C, making it suitable for varied industrial environments.
This valve is ideal for pneumatic fluid power systems, plumbing, pipeline installations, and industrial automation requiring precise flow control. Stainless steel valve body with threaded G standard connections at 1.5 inches.
Spring return, normally closed pneumatic actuator for safety and control. High pressure capability up to 16 bar. Wide temperature operational range and compatibility with aggressive media. Compact and high flow design with PTFE sealing technology.
Manufactured in Germany, this Burkert valve delivers quality and reliability expected in the industrial valve market. Explore more Pneumatic Actuated Valves and industrial valve solutions in EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 16 bar.
The media temperature range for this valve is from -10°C to 180°C.
The valve features a stainless steel body, a polyamide actuator casing, and PTFE seals.
The ambient temperature range for this valve is from -10°C to +60°C.
This model uses a spring return pneumatic actuator and is configured as normally closed (NC).
The inlet connection type is threaded with a size of 1.5 inches.
Yes, it is designed to handle aggressive fluids as well as neutral gases, steam, water, and oil.
This valve is designed as an angle seat valve with a compact design for high flow capacity.
This valve is manufactured in Germany.
It utilizes PTFE sealing technology, along with self-adjusting spindle packing glands and wiper seals for leak-tight operation.
This valve is suitable for pneumatic fluid power systems, plumbing, pipeline installations, and industrial automation requiring precise flow control.
The outlet thread standard for this valve is G.
