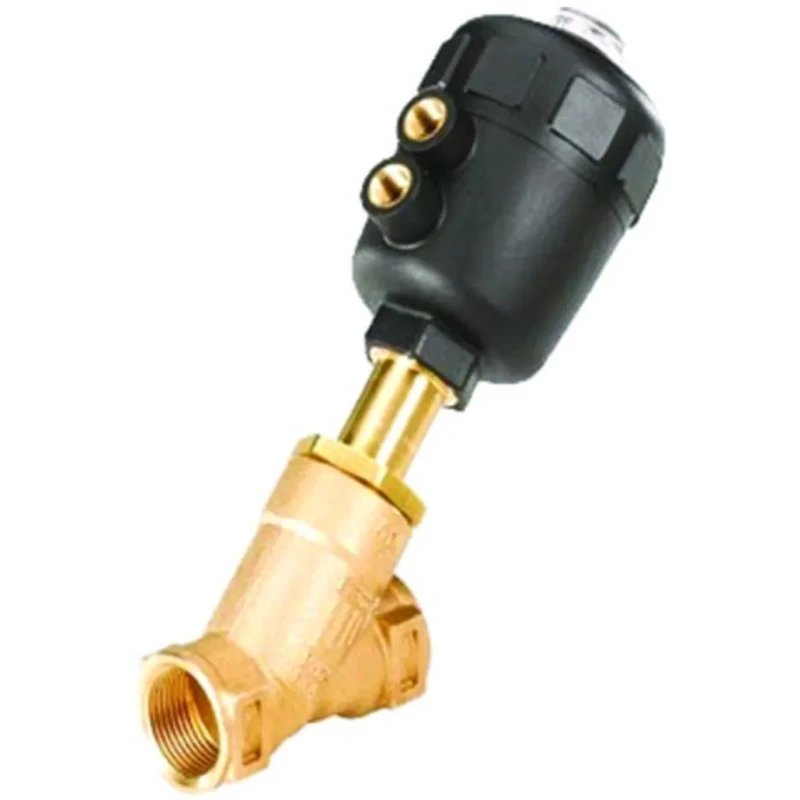

Burkert Angle Type Pneumatic Actuated Valve Stainless Steel 1 in 16 Bar 186489
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Maximum Operating Pressure | 16 bar |
| Inlet Connection Type | Threaded |
| Model | 186489 |
| Valve Type | Angle |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Valve Material | Stainless Steel |
| Inlet Port Size | 1 in |
| Default Valve Position | NC |
| Outlet Thread Standard | G |
| Return Type | Spring |
| Burkert Angle Seat type Pneumatic Operated Process Valve, G 1in, 11 barBrand | Burkert |
| EMERSON - ASCO Angle Seat type Pneumatic Actuated Valve, G 1in, 10 barBrand | EMERSON - ASCO |
Key Features
- This angle type valve features a stainless steel valve body suitable for robust and corrosive environments.
- It has a normally closed (NC) valve position with spring return type for reliable operation.
- The valve supports threaded inlet and outlet connections with G thread standard ensuring secure fitting.
- Operates efficiently from -10°C to 60°C ambient temperature with media temperature capability up to 180°C.
- Designed for high flow rate of 18 m³/h through a 25 mm orifice for versatile fluid control.
- Includes features such as live loaded packing and N-seal piston actuator for durability and leakage reduction.
- The polyamide actuator casing and PTFE seal material enhance chemical resistance and longevity.
- Suitable for applications requiring anti-water hammer protection and intermediate relief.
Product Description
Burkert 186489 Angle Type Pneumatic Actuated Valve is engineered for industrial fluid control with precision and durability. This valve features a 1 inch G threaded inlet and outlet port size, facilitating easy integration into existing pipelines.
Constructed with a stainless steel valve body, it provides high strength and corrosion resistance, suited for diverse industrial applications including manufacturing, water treatment, and chemical processing.
The valve operates at a maximum pressure of 16 bar and is designed to function in ambient temperatures ranging from -10°C to 60°C, with media temperatures extending up to 180°C. Its normally closed configuration with spring return ensures secure valve positioning when not actuated.
Featuring a compact angle seat design, the valve offers a high flow rate of 18 m³/h through a 25 mm orifice. The actuator includes live loaded packing and an N-seal piston actuator to minimize leakage and maintenance needs. The polyamide actuator casing combined with PTFE seals enhances chemical resistance and actuator lifespan.
This valve is suitable for industrial use cases requiring reliable pneumatic actuation, including HVAC systems, fluid power equipment, laboratory installations, and process automation. It effectively manages fluid flow with anti-water hammer capabilities and intermediate relief functions for system protection.
Stainless steel angle type valve body providing durability. 1 inch threaded connection ports with G standard for secure fittings. Maximum operating pressure at 16 bar for robust industrial use. Temperature range suitability from -10°C to 60°C ambient and up to 180°C media.
Compact design allowing high flow rates and efficient fluid control. Polyamide actuator casing and PTFE seals for chemical resistance. Spring return actuator with normally closed valve position. Live loaded packing and N-seal piston for enhanced sealing and lifespan.
Package includes one Burkert angle type pneumatic actuated valve model 186489 with 1 inch port size. This valve is made in Germany and offered new with no certifications stated. Explore more Pneumatic Actuated Valves and industrial valve fittings on EnvMart for your fluid control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 16 bar.
It operates efficiently in ambient temperatures from -10°C to 60°C, with media temperatures capable of reaching up to 180°C.
This model features threaded inlet and outlet connections with a G thread standard for secure fittings.
The valve has a normally closed (NC) default position with a spring return type for reliable operation.
It allows a high flow rate of 18 m³/h through a 25 mm orifice.
The valve body is made of stainless steel, while the actuator casing is polyamide and the seals are PTFE, enhancing chemical resistance.
This pneumatic actuated valve is suitable for industrial applications including manufacturing, water treatment, chemical processing, HVAC systems, and process automation.
It includes live loaded packing and an N-seal piston actuator to minimize leakage and maintenance needs.
The inlet port size of this valve is 1 inch.
This valve is manufactured in Germany.
The actuator features a spring return type, ensuring the valve returns to its default position when not actuated.
No certifications are stated for this valve.
