Wurth Elektronik RGB LED 2 V 30mA 48mW 3528 Surface Mount 3 LED WL-SFTW 150141M173100

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik RGB LED 2 V 30mA 48mW 3528 Surface Mount 3 LED WL-SFTW 150141M173100

Name: Wurth Elektronik RGB LED 2 V 30mA 48mW 3528 Surface Mount 3 LED WL-SFTW 150141M173100
Brand: Wurth Elektronik
SKU: 376380
Price: 0.45 USD
Availability: InStock



Category LED Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Model	150141M173100
Packaging	Tape & Reel
Mount Type	Surface
Series	WL-SFTW
Number Of Leds	3
Maximum forward current	30mA
Viewing angle	120 °
Package Type	3528
Standards/Approvals	RoHS
LED Colour	RGB
Dominant Wavelength	470, 520, 625nm
Forward Voltage	2V
Number of Pins	4
LED Luminosity	230 mcd, 270 mcd, 950 mcd
Maximum Power Dissipation	48mW
Lens Dimensions	3.2 x 2.8 x 1.75 mm
Lens Shape	Round

Key Features

Industry standard 3528 footprint suitable for surface mounting.
RGB LED colors offering full color controls.
Maximum forward current of 30mA and power dissipation of 48mW ensure low energy consumption.
Viewing angle of 120 degrees with a clear round lens design.
Compact lens dimensions of 3.2 x 2.8 x 1.75 mm provide a small form factor.
High LED luminosity values of 230 mcd, 270 mcd, and 950 mcd across red, green, and blue wavelengths.
Compliant with RoHS standards for environmental safety.
Individual RGB control enables fast switching for versatile lighting applications.

Product Description

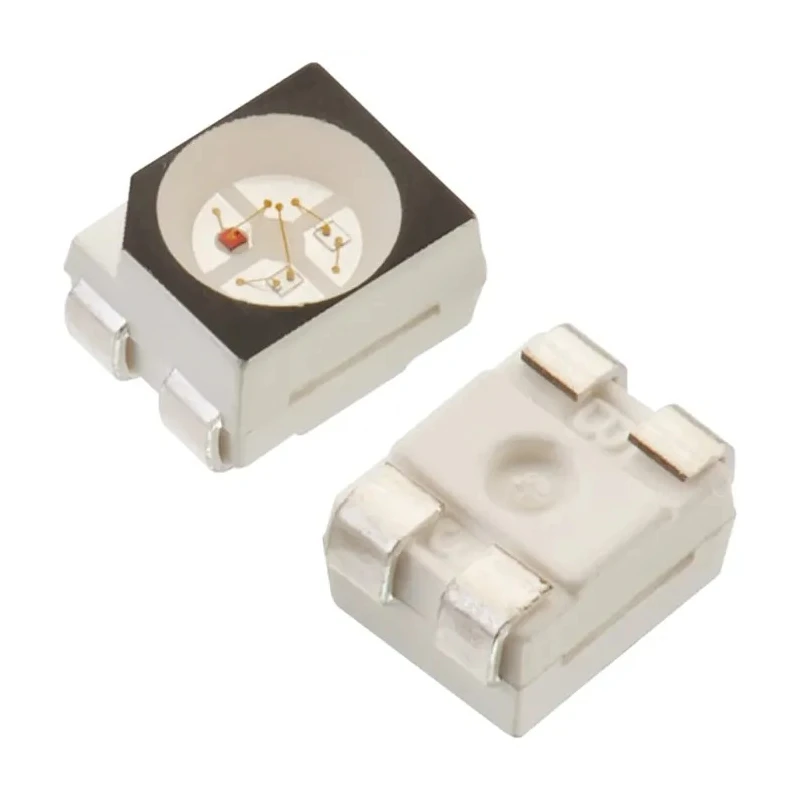

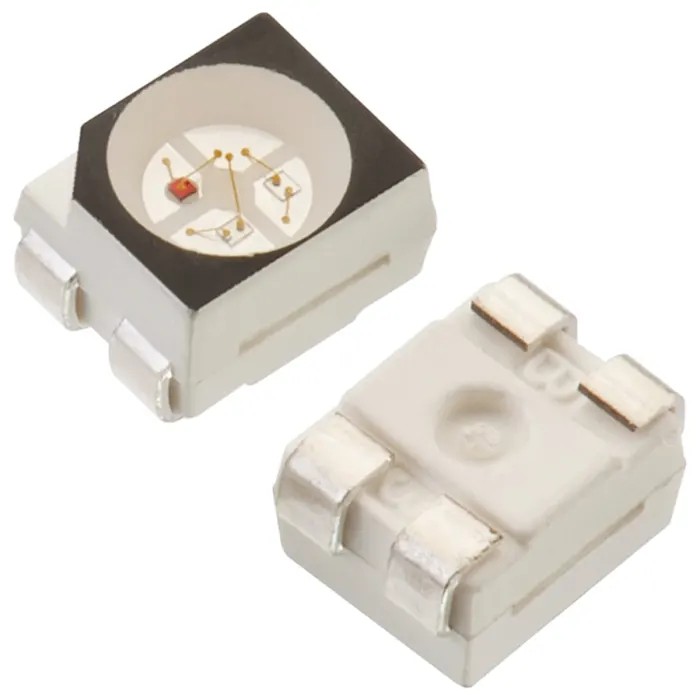

Wurth Elektronik 150141M173100 WL-SFTW series RGB LED is a compact surface mounted device designed with a 3528 industry standard footprint. Operating at 2 V forward voltage and supporting a maximum forward current of 30mA, this LED package delivers a maximum power dissipation of 48mW.

The LED contains 3 individual red, green, and blue LEDs allowing independent RGB control and fast switching capabilities. Its black face enhances on-off contrast, making it ideal for use in various display applications.

Featuring a clear, round waterclear lens measuring 3.2 x 2.8 x 1.75 mm, the LED provides a wide viewing angle of 120° and high luminous intensities of 230, 270, and 950 mcd respectively, suitable for intense and vibrant light output across the RGB spectrum.

These LEDs comply with RoHS environmental standards, emphasizing reliability and low energy consumption. The robust construction and advanced features suit applications such as keypad lighting, torches, switch indicators, decorative lighting, electronic signage, video displays, and LCD/TV backlighting.

Specific industrial and commercial use cases include manufacturing of displays, household appliances, signage boards, and other electronic indicators requiring multi-color illumination. The WL-SFTW series is also compatible with light pipes enhancing light diffusion applications.

Industry standard 3528 footprint suitable for surface mounting. RGB LED colors offering full color controls. Maximum forward current of 30mA and power dissipation of 48mW ensure low energy consumption. Viewing angle of 120 degrees with a clear round lens design.

Compact lens dimensions of 3.2 x 2.8 x 1.75 mm provide a small form factor. High LED luminosity values of 230 mcd, 270 mcd, and 950 mcd across red, green, and blue wavelengths. Compliant with RoHS standards for environmental safety.
