Wurth Elektronik 3.5 V Blue LED 0603 Surface Mount WL-SMCW 150060BS75000

Free Delivery in India | Lowest Global Shipping Charges

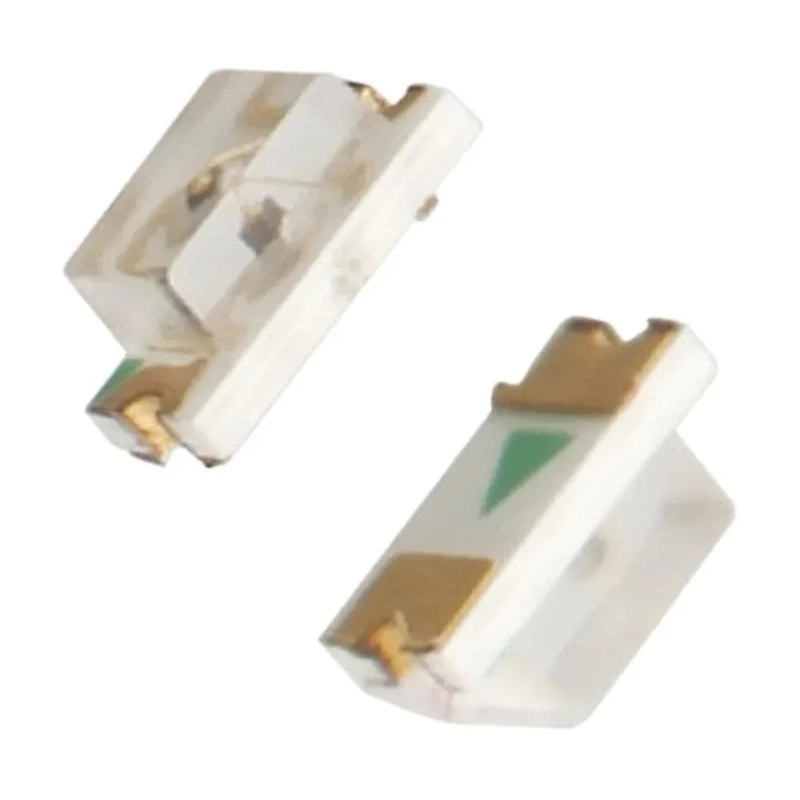

Wurth Elektronik 3.5 V Blue LED 0603 Surface Mount WL-SMCW 150060BS75000

Name: Wurth Elektronik 3.5 V Blue LED 0603 Surface Mount WL-SMCW 150060BS75000
Brand: Wurth Elektronik
SKU: 376364
Price: 0.18 USD
Availability: InStock



Category LED Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Model	150060BS75000
Packaging	Tape & Reel
Mount Type	Surface
Series	WL-SMCW
Maximum forward current	30mA
Viewing angle	140 °
Package Type	0603
Standards/Approvals	RoHS
LED Colour	Blue
Dominant Wavelength	470nm
Forward Voltage	3.5V
Number of Pins	2
LED Luminosity	145 mcd
Maximum Power Dissipation	114mW
Lens Dimensions	1.6 x 0.8 x 0.7 mm
Lens Shape	Rectangular
Industry-standard packages	0603 / 0805 / 1206

Key Features

This blue LED features a clear rectangular lens with dimensions 1.6 x 0.8 x 0.7 mm.
The device supports a maximum power dissipation of 114mW and offers high luminous intensity of 145 mcd.
It has a wide viewing angle of 140° for efficient illumination coverage.
Designed with a tape and reel packaging for automated assembly processes.
The LED has 2 pins and surface mount type suitable for SMT applications.
It complies with RoHS standards and is made with a dominant wavelength of 470nm.
Highly reliable with long service life, ideal for backlighting, indicators, and general lighting applications.

Product Description

Wurth Elektronik 150060BS75000 is a 3.5 V Blue LED in a 0603 package featuring a surface mount design. This product belongs to the WL-SMCW series of single colour SMD chip LEDs characterized by high brightness and ultra-compact SMT form factor.

The device uses a clear rectangular lens with dimensions of 1.6 x 0.8 x 0.7 mm, providing a wide viewing angle of 140°, making it suitable for numerous applications including backlighting for mobile devices, switch and indicator illumination, message boards, optical indicators, and decorative lighting.

Designed for low energy consumption with a maximum forward current of 30mA and maximum power dissipation of 114mW, it delivers a luminous intensity of 145 mcd at a dominant wavelength of 470nm. The LED comes in tape and reel packaging supporting efficient machine insertion and assembly.

This LED is RoHS compliant with a 2-pin surface mount package ensuring compatibility with standard PCB assembly processes. Manufactured in China, these LEDs provide long service life with reliable performance in industrial, commercial, and consumer electronic applications.

This blue LED features a clear rectangular lens with high brightness. The device supports 30mA maximum forward current with 3.5V forward voltage. It has a wide viewing angle of 140° offering efficient illumination. Packaging is tape & reel facilitating automated manufacturing.

The WL-SMCW series LEDs have a compact 0603 SMT footprint. This component is RoHS compliant ensuring environmental safety. Ideal for backlighting, display indicators, and optical applications. Explore more LED and optoelectronics components in the Electronics & Electricals section at EnvMart for industrial, laboratory, and commercial lighting solutions.
