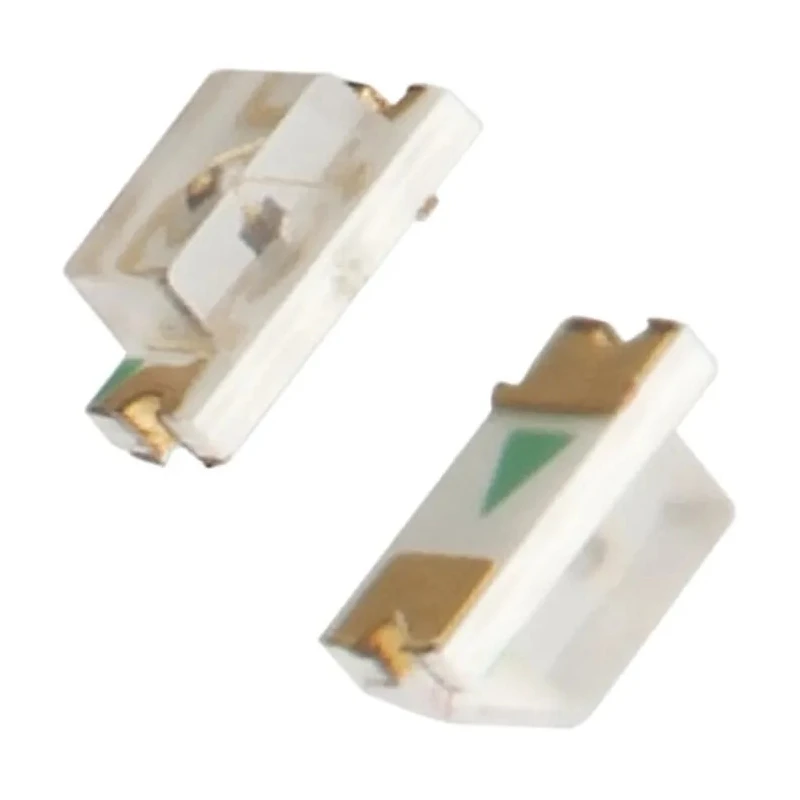

Wurth Elektronik 2.4 V Green LED 0603 Surface Mount Tape & Reel WL-SMCW 150060VS75000

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 2.4 V Green LED 0603 Surface Mount Tape & Reel WL-SMCW 150060VS75000

Name: Wurth Elektronik 2.4 V Green LED 0603 Surface Mount Tape & Reel WL-SMCW 150060VS75000
Brand: Wurth Elektronik
SKU: 376362
Price: 0.16 USD
Availability: InStock



Category LED Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Model	150060VS75000
Packaging	Tape & Reel
Mount Type	Surface
Series	WL-SMCW
Maximum forward current	30mA
Viewing angle	140 °
Package Type	0603
Standards/Approvals	RoHS
LED Colour	Green
Dominant Wavelength	570nm
Forward Voltage	2.4V
Number of Pins	2
LED Luminosity	40 mcd
Maximum Power Dissipation	72mW
Lens Dimensions	1.6 x 0.8 x 0.7 mm
Lens Shape	Rectangular
Industry-standard packages	0603 / 0805 / 1206
ams OSRAM 1.7 V Green LED 0603 Surface SmartLED LG L29K-G2J1-24Brand	ams OSRAM

Key Features

The LED features a clear rectangular lens with a viewing angle of 140 degrees.
It supports a maximum forward current of 30 mA and maximum power dissipation of 72 mW.
Its compact lens dimensions measure 1.6 x 0.8 x 0.7 mm suitable for ultra-compact SMT applications.
The LED emits a luminous intensity of 40 mcd with a dominant wavelength of 570 nm.
It is RoHS compliant and offers long service life ideal for industrial and consumer electronic device backlighting.
Packaging is provided in tape and reel format for automated manufacturing insertion.
Suitable for applications including indicators, message boards, switches, and displays in various industries.

Product Description

The Wurth Elektronik 150060VS75000 is a 2.4 V Green LED featuring a 0603 surface mount package with tape and reel packaging for automated assembly processes. The device employs a water-clear rectangular lens providing a wide 140-degree viewing angle, enabling excellent visibility in various lighting applications.

Designed for ultra-compact SMT configurations, the LED offers high brightness with a luminous intensity of 40 mcd and operates at a maximum forward current of 30 mA with a power dissipation of 72 mW. The compact lens measures 1.6 x 0.8 x 0.7 mm, making it ideal for densely packed PCB layouts.

Compliant with RoHS standards, these LEDs ensure environmentally friendly manufacturing. They provide long reliability and service life for demanding industrial and commercial use cases including backlighting for portable and mobile devices, switch and indicator illumination, and message board displays.

This component is well-suited for applications in industrial controls, optical indicators, toys, and general lighting solutions requiring visible light LEDs with low energy consumption and stable performance.

The LED features a clear rectangular lens with a viewing angle of 140 degrees. Maximum forward current rating is 30 mA. Maximum power dissipation is 72 mW. Luminous intensity rated at 40 mcd. Dominant wavelength is 570 nm.

Package type is industry standard 0603 SMT package. Packaging format is tape and reel for efficient manufacturing.

Wurth Elektronik LEDs from the WL-SMCW series provide high luminous efficiency with low power consumption and are widely used across electronic, industrial, laboratory, and commercial lighting applications. Explore EnvMart’s wide selection of LED components for your specialized needs.
