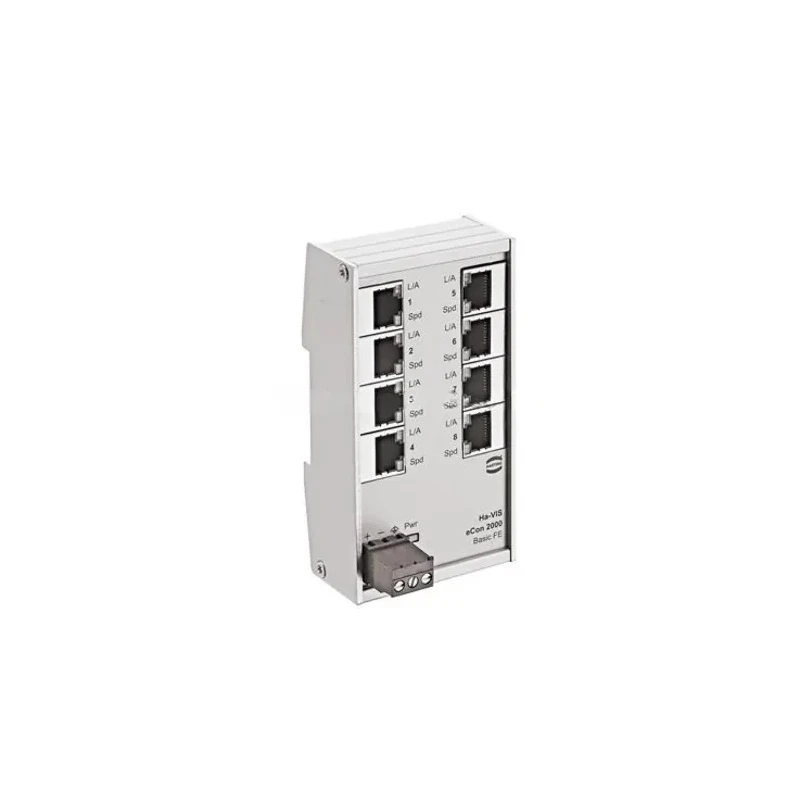

HARTING Unmanaged 8 Port Ethernet Switch 24020080010 Industrial Fast Ethernet DIN-Rail Mount

The HARTING 24020080010 Unmanaged 8 Port Ethernet Switch is designed for compact industrial installations requiring straightforward, plug-and-play network extension. It delivers eight 10/100Mbit/s twisted-pair Ethernet ports with automatic link negotiation and wiring detection.

The switch offers non-blocking store-and-forward switching to ensure uninterrupted network throughput, combined with Energy-Efficient Ethernet technology to reduce power usage during periods of low traffic. Its wide power input range from 9 VDC to 60 VDC allows flexible power supply options, and the device features surge and reverse-polarity protection for increased resilience in distribution networks.

Constructed to operate in harsh environments, the switch supports an extended temperature range from -40°C to +70°C, with storage tolerance up to +85°C and 0% to 95% relative humidity non-condensing. The unit also meets rigorous mechanical vibration and shock standards per IEC 60068 series.

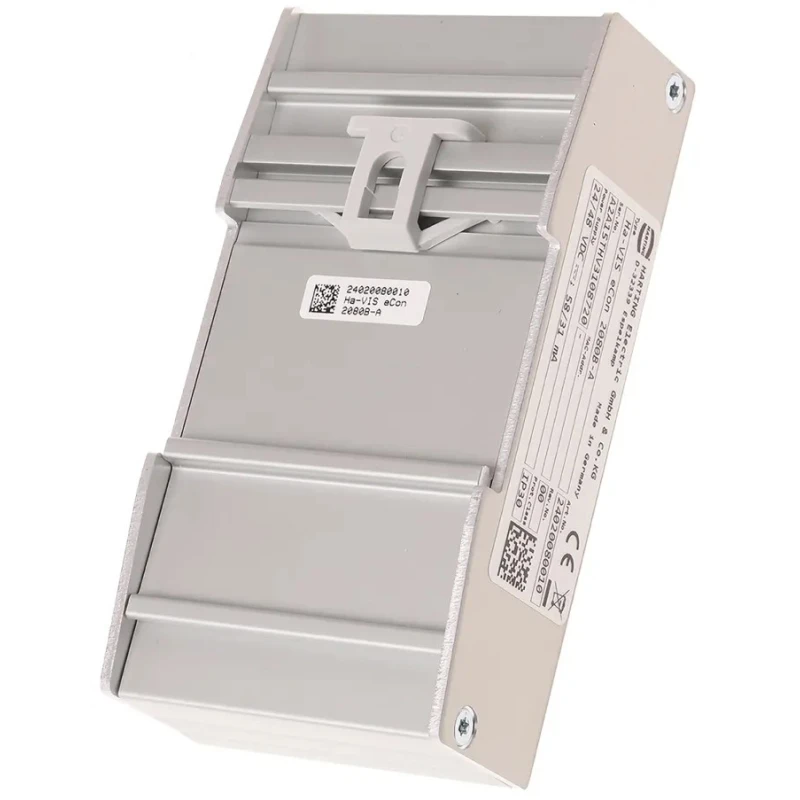

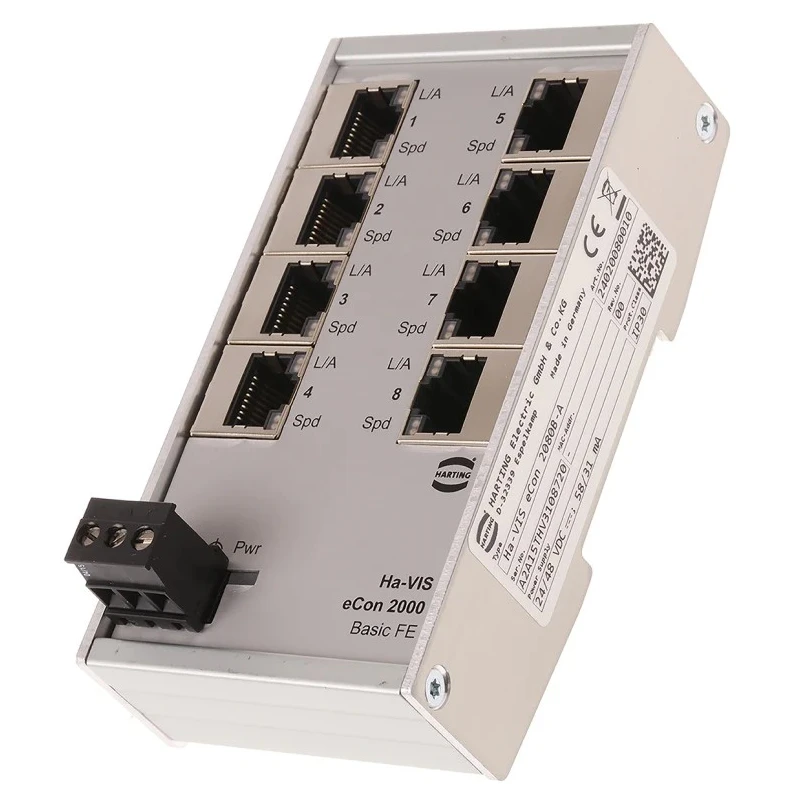

The compact enclosure measures 113.5 mm in height, 60 mm in width, and 27.3 mm in depth, optimized for DIN-rail mounting inside machine control cabinets. LED diagnostics provide real-time indications of power status, link activity, and link speed, supporting effective network monitoring.

Certified with CE, CSA, FCC, and UL approvals, this switch aligns with industry requirements for safety and electromagnetic compatibility.

Ideal applications include factory floor device aggregation, connecting programmable logic controllers (PLC) and human-machine interfaces (HMI) in automation tasks, transport and marine onboard local networks, as well as wind and solar energy field controller interconnections.

Features eight RJ45 ports delivering 10/100Mbit/s connectivity with auto-negotiation. Non-blocking store-and-forward switching ensures uninterrupted data throughput. Energy-Efficient Ethernet reduces power consumption during low network traffic.

Wide input voltage range from 9 VDC to 60 VDC for flexible power options. Surge and reverse-polarity protection for robust operation in harsh environments. Operating temperature range from -40°C to +70°C supports industrial conditions.

Compact low-profile DIN-rail mountable enclosure measuring 113.5mm (H) x 60mm (W) x 27.3mm (D). LED indicators display power, link/activity, and link speed status. Meets CE, CSA, FCC, and UL approvals ensuring compliance with industry standards.

Suitable for factory-floor device aggregation, PLC and HMI connections, and renewable energy field control networks. Explore more industrial networking devices and solutions available on EnvMart for robust and efficient automation.
