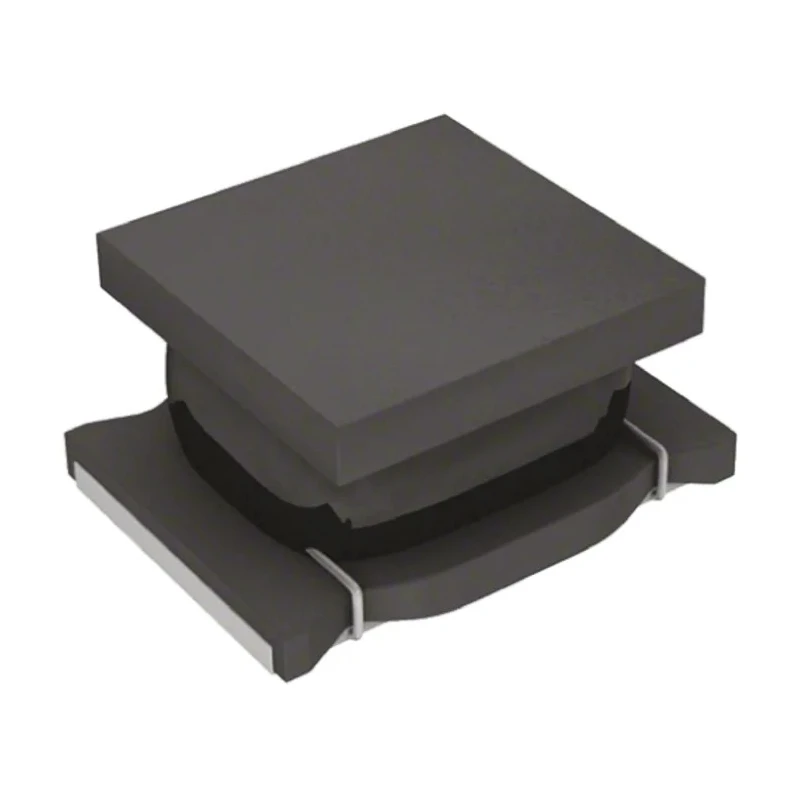

Murata 1210 Shielded Surface Mount Inductor with Ferrite Core 47μH ±20% 310mA DC Current LQH32PN470MN0L

Murata LQH32PN470MN0L is a 1210 size shielded Surface Mount Inductor equipped with a ferrite core, designed for use in electronic circuits requiring inductance of 47μH with a ±20% tolerance. This wirewound inductor is magnetically shielded, reducing electromagnetic interference and suitable for choke applications in DC power supply circuits.

It is manufactured with a solder termination style for ease of surface mounting and is offered in embossed tape packaging ideal for automated insertion machines. Operating effectively within a temperature range of -40°C to 85°C, it provides reliable performance across various industrial environments.

This compact inductor measures 3.2mm length, 1.55mm height, and 2.5mm depth with a maximum DC current rating of 310mA and a maximum DC resistance of 1.78Ω, providing efficient current handling and low power loss.

The maximum self-resonant frequency of 11MHz makes it suitable for high-frequency circuit designs, including telecommunications, power electronics, and automotive electronics that do not require automotive-specific standards.

Produced in Japan with RoHS compliance, the LQH32PN470MN0L ensures quality construction and environmental safety. Its ferrite core construction further enhances magnetic characteristics, making it a dependable component for industrial, manufacturing, and electronic assembly applications.

The inductor features a magnetically shielded wirewound construction. It has a package size of 1210 with embossed tape packaging suitable for automated assembly. The inductance tolerance is ±20 % ensuring performance reliability.

Operates over a temperature range from -40°C to 85°C for versatile application. The maximum DC resistance is 1.78Ω contributing to efficiency in circuits. Designed with a ferrite core and solder termination style for surface mounting.

This inductor has a maximum self-resonant frequency of 11MHz suitable for high-frequency applications. Measuring 3.2mm in length, 1.55mm in height, and 2.5mm in depth. RoHS compliant and manufactured in Japan ensuring quality and environmental standards.
