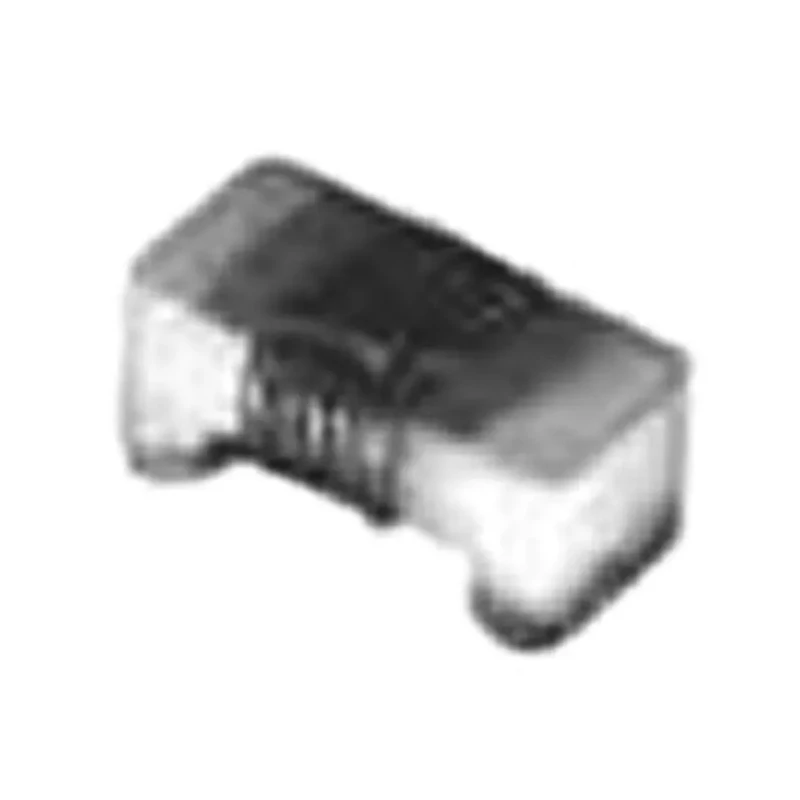

Murata 1608 Wirewound Surface Mount Inductor 10 nH ±2% 800 mA Idc Q:38 LQW18AN10NG10D

Murata LQW18AN10NG10D is a high quality 1608 wirewound surface mount inductor offering a 10 nH inductance with a tight tolerance of ±2%. It supports a maximum DC current of 800 mA and features a quality factor (Q) of 38, ideal for applications demanding low loss and high frequency stability.

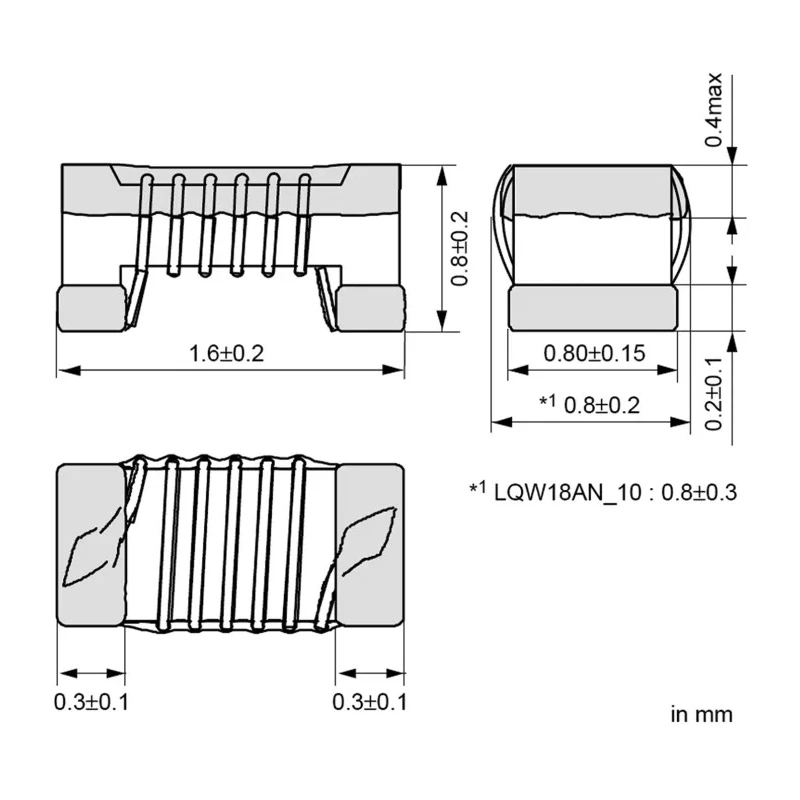

This component is housed in a compact 1.6mm length, 0.8mm height, and 0.8mm depth package, making it suitable for densely packed printed circuit boards. The wirewound construction ensures superior performance across a broad frequency range, with a maximum self-resonant frequency of 5 GHz.

Its maximum DC resistance of 58 milliohms contributes to efficient power handling and minimal energy dissipation. The component operates reliably within an industrial temperature range from -55°C to 125°C and features tin plating termination style for optimal soldering and mechanical integrity.

The inductor complies with RoHS directives, reflecting an environmentally safe design. It is specifically engineered for high frequency circuits found in wireless telecommunication equipment such as Bluetooth, GSM, and WLAN modules, supporting robust signal filtering and noise suppression.

This Murata LQW18AN10NG10D inductor is packaged on paper tape, facilitating automated assembly for enhanced production efficiency. Compact 1608 package size with 1.6mm length, 0.8mm height and depth. Wirewound construction for excellent high frequency characteristics.

Maximum DC current of 800 mA and DC resistance of 58 milliohms. Wide operating temperature range from -55°C to 125°C. Q factor of 38 and self resonant frequency up to 5 GHz. RoHS compliant with tin plating termination style.

Ideal for wireless telecommunications including Bluetooth, GSM, and WLAN. Explore further Surface Mount Inductors and Murata components at EnvMart for your industrial, telecommunications, and electronics manufacturing needs.
