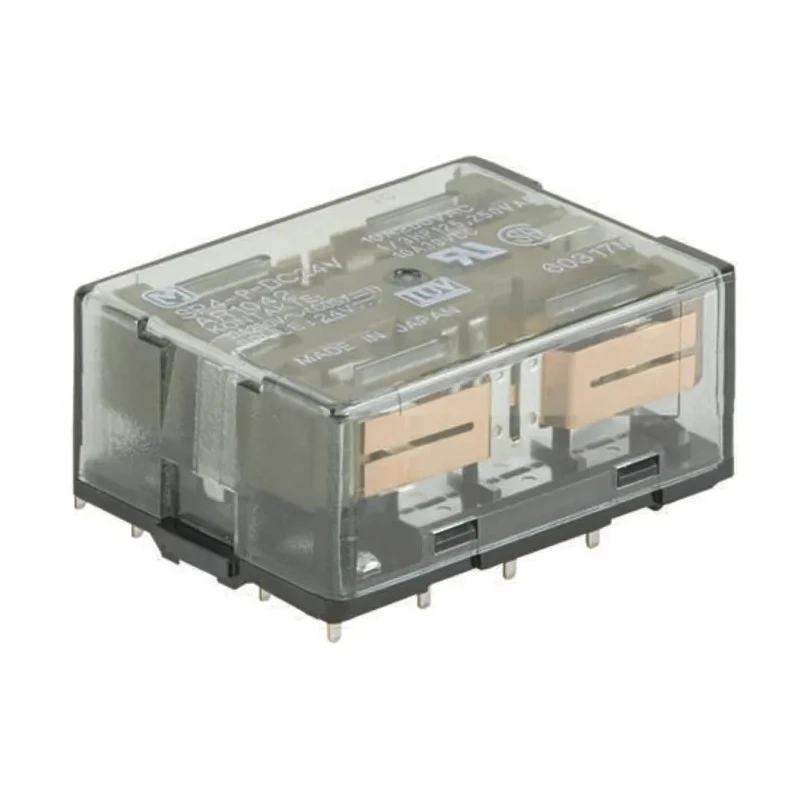

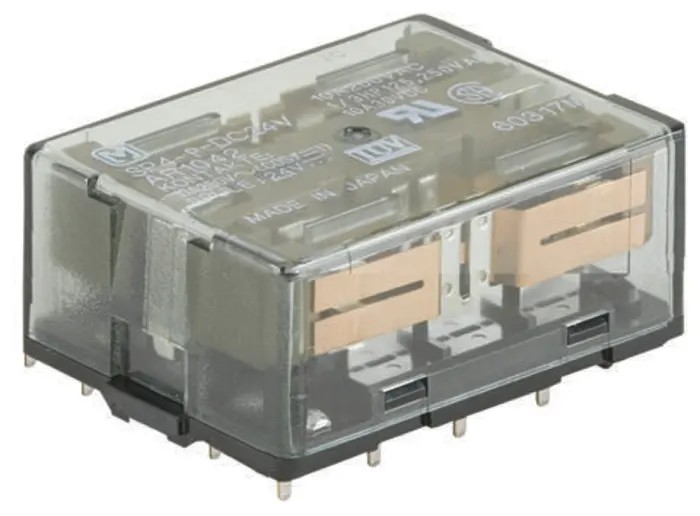

Panasonic PCB Power Relay 24V DC Coil 10A Switching Current 4PDT SP4-P-24V

Panasonic SP4-P-24V PCB Power Relay is a highly sensitive power relay with a 24V DC coil, capable of switching a current of 10A using a reliable 4PDT contact configuration. It is designed for PCB mounting applications, utilizing PCB pin terminals and providing compact dimensions of 25.6mm height, 50mm length, and 20.5mm width, making it suitable for space-constrained electrical and electronic assemblies.

This relay features a nominal coil power of 300mW and a minimum operating power of 150mW, ensuring energy-efficient operation. It delivers a switching power of up to 300W and can handle an AC switching voltage of 250V AC. The contacts are constructed of silver alloy material to guarantee minimal contact resistance of 50mΩ, providing excellent conductivity and longevity.

Its robust construction offers strong vibration and shock resistance, making it reliable for industrial, automation, and control applications where durability is essential. The relay maintains operational integrity over a wide temperature range, from -50°C to 60°C, which supports use in demanding environmental conditions.

Widely used in electrical, automation, and industrial control systems, this relay meets international safety standards including VDE, UL, and CSA, signifying its compliance with global quality and safety requirements. Manufactured in Japan, it assures consistent manufacturing quality and reliability.

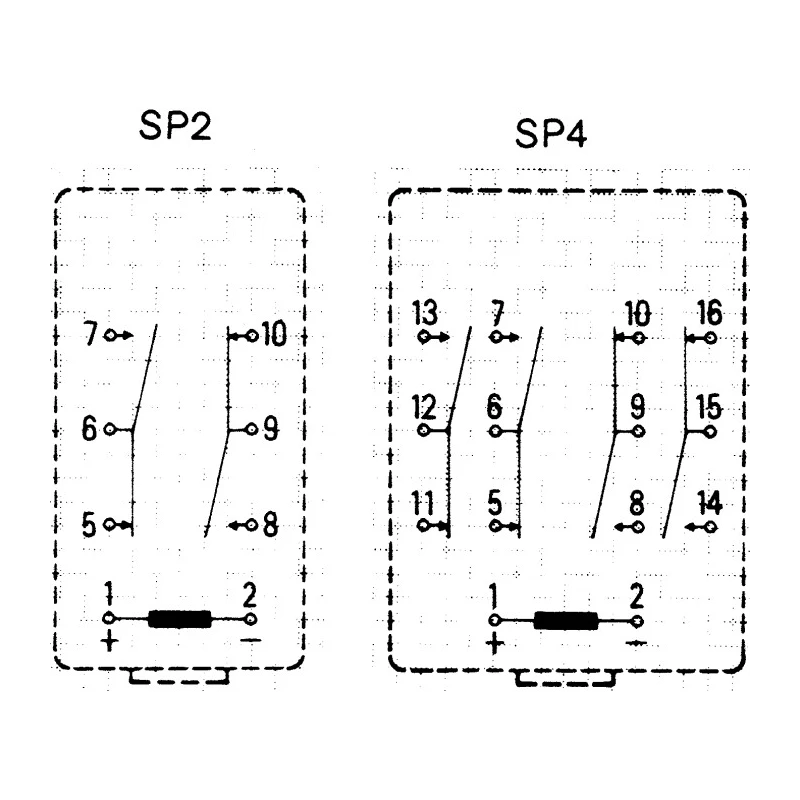

High sensitivity power relay with 24V DC coil voltage. 4PDT contact configuration suitable for multiple circuit switching. Compact PCB mounting form factor with PCB pin terminals. Switching current rated at 10A and switching power at 300W.

Silver alloy contacts provide low resistance of 50mΩ. Operating temperature range from -50°C to 60°C. Strong resistance against vibration and shock. Certified by VDE, UL, and CSA safety standards. Manufactured in Japan ensuring product quality and reliability.

This Panasonic power relay fits seamlessly into electrical, automation, and industrial equipment, providing dependable switching performance with efficient power consumption. It is ideal for professionals seeking reliable relay solutions for PCB mounted applications within manufacturing, control panels, and automation systems.
