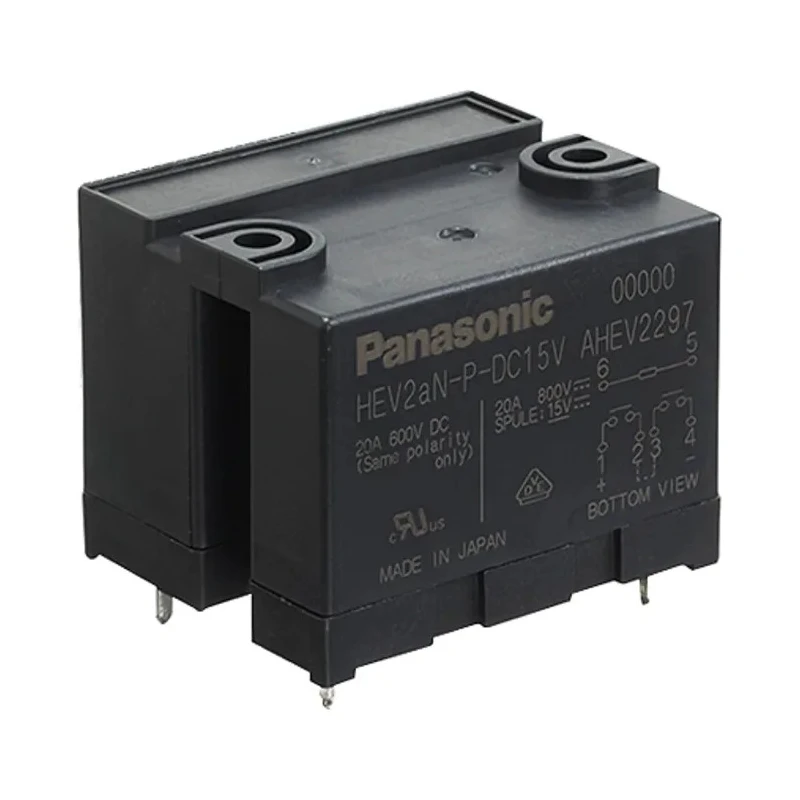

Panasonic PCB Power Relay 12V DC Coil 20A Switching Current DPST HEV2AN-P-DC12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 39.4mm |
| Length | 50mm |
| Model | HEV2AN-P-DC12V |
| Width | 41mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE-V |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Contact arrangement | 2 Form A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, cULus |
| Coil Resistance | 75Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 1kV dc |
| Switching AC Voltage | 1kV ac |
| Coil Power | 1.92W |
Key Features
- Operates at coil voltage of 12V DC with a coil resistance of 75Ω.
- Designed with silver alloy contacts ensuring low contact resistance of 100mΩ.
- Switching capability up to 1kV DC and 1kV AC voltages.
- Suitable for PCB mounting with PCB pin terminals for easy integration.
- Rated for operating temperatures from -40°C to 85°C for versatile environments.
- Complies with VDE and cULus safety standards for quality assurance.
- Coil power consumption is low at 1.92W supporting energy-efficient designs.
- Contact arrangement includes 2 Form A configuration for dual-pole switching.
Product Description
Panasonic HEV2AN-P-DC12V is a high-quality PCB Power Relay designed for efficient and reliable switching applications. It operates with a 12V DC coil voltage and supports a switching current of 20A, suitable for demanding electrical circuits.
This DPST relay features a robust silver alloy contact material ensuring a low contact resistance of 100mΩ, which contributes to enhanced electrical performance and reduced power loss. Its switching voltages can reach up to 1kV DC and 1kV AC, providing versatility for various industrial and electronic uses.
The relay's compact size with dimensions 50mm (L) x 41mm (W) x 39.4mm (H) allows convenient mounting on PCBs with PCB pin terminals, ideal for space-constrained designs. The coil resistance of 75Ω and coil power of 1.92W optimize energy consumption, supporting energy-saving equipment requirements.
Designed to operate reliably in harsh environments, it supports a wide temperature range from -40°C to 85°C. The relay is compliant with VDE and cULus standards, ensuring safety and quality in industrial, automation, power supply, and control systems.
Typical applications include photovoltaic power generation systems, battery charge and discharge systems, inverter control, and DC load control. Its dual-pole, single-throw (DPST) contact configuration and 2 Form A contact arrangement provide precise switching and control capabilities for complex electrical circuits.
Operates at coil voltage of 12V DC with coil resistance of 75Ω. Silver alloy contacts delivering low contact resistance of 100mΩ. Switching voltages up to 1kV DC and 1kV AC for versatile circuit applications. Compact PCB mounting with PCB pin terminals for easy integration.
Wide operating temperature range from -40°C to 85°C. Complies with VDE and cULus safety standards. Low coil power consumption of 1.92W supporting energy-saving designs. DPST contact configuration with 2 Form A contacts. Explore more precision Power Relays and electrical components from Panasonic at EnvMart, your trusted platform for industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay operates at a coil voltage of 12V DC.
It supports a maximum switching current of 20A.
The contact configuration is DPST with a 2 Form A contact arrangement.
The dimensions are 50mm in length, 41mm in width, and 39.4mm in height.
It features a low contact resistance of 100mΩ.
It can operate in temperatures ranging from -40°C to 85°C.
It is designed with PCB pin terminals for easy integration into circuits.
The coil power consumption is low at 1.92W.
It complies with VDE and cULus safety standards.
The relay can switch voltages up to 1kV DC and 1kV AC.
The contacts are made of silver alloy, ensuring low contact resistance.
Typical applications include photovoltaic power generation systems and battery charge/discharge systems.
