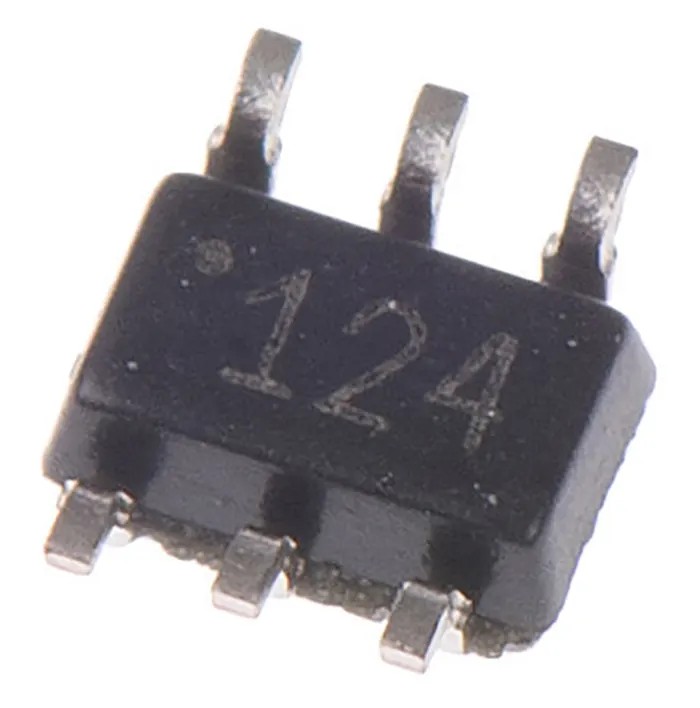

STMicroelectronics Operational Amplifier 850 kHz 6-Pin SC-70 1 Channel 5.5V TSV630AICT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 2.2mm |
| Model | TSV630AICT |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | TSV630A |
| Output Current | 4mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Shutdown Mode | 5 nA typical |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.5V |
| GBP - Gain Bandwidth Product | 850kHz |
| Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 0.34V/μs |
| Gain bandwidth product | 880 kHz |
Key Features
- Single channel operational amplifier designed for low power consumption and high efficiency.
- Operates with supply voltage from 1.5 V up to 5.5 V suitable for diverse electronic applications.
- Gain bandwidth product of 850 kHz allows effective amplification in analog circuits.
- Compact 6-pin SC-70 package dimensions of 2.2 mm length, 1.35 mm width, and 1 mm height for space-critical PCB designs.
- Low input offset voltage of 2 mV and low input bias current of 100 pA for precision signal processing.
- Wide operating temperature range from -40°C to 125°C suitable for automotive and industrial environments.
- Includes automotive standard AEC-Q100 compliance ensuring reliability in automotive systems.
- Output current capability up to 4 mA enabling robust signal driving capacity.
Product Description
STMicroelectronics TSV630AICT operational amplifier is a high-performance analog component designed for a variety of industrial, automotive, and electronic applications. It offers a gain bandwidth product of 850 kHz and operates in a compact 6-pin SC-70 surface-mount package. The device supports a wide supply voltage range from 1.5 V to 5.5 V, enabling flexible integration into low voltage systems.
This single channel op amp features low power consumption around 60 μA typical at 5 V supply, making it ideal for battery-operated and portable devices. Its low input offset voltage of 2 mV and input bias current of 100 pA provide accurate signal amplification with minimal error and drift.
The amplifier is rated for operation across a broad temperature range (-40°C to 125°C), meeting automotive-grade requirements with AEC-Q100 certification. Its small package size (2.2 mm × 1.35 mm × 1 mm) makes it suitable for compact PCB layouts where space is limited.
The TSV630AICT includes a shutdown mode with ultra-low current consumption (5 nA typical) to enhance power management. Output current capability of 4 mA supports driving moderate loads effectively.
Single channel operational amplifier with gain bandwidth of 850 kHz. Wide supply voltage range from 1.5 V to 5.5 V. Compact 6-pin SC-70 surface mount package with small footprint. Low offset voltage and low input bias current for precision amplification.
Automotive compliant with AEC-Q100 standard for reliability. Operating temperature from -40°C to 125°C for harsh environments. Low power consumption ideal for portable and battery-powered designs. Shutdown mode with minimal current draw for efficient power management.
Output current capability of 4 mA suitable for various applications.
This operational amplifier is well suited for use in automotive electronics, industrial sensor interfaces, portable instrumentation, and general-purpose analog applications. It enables designers to achieve accurate and efficient signal amplification with reliable long-term performance.
Explore more STMicroelectronics Operational Amplifiers and related semiconductors on EnvMart to meet your precision analog component needs.
