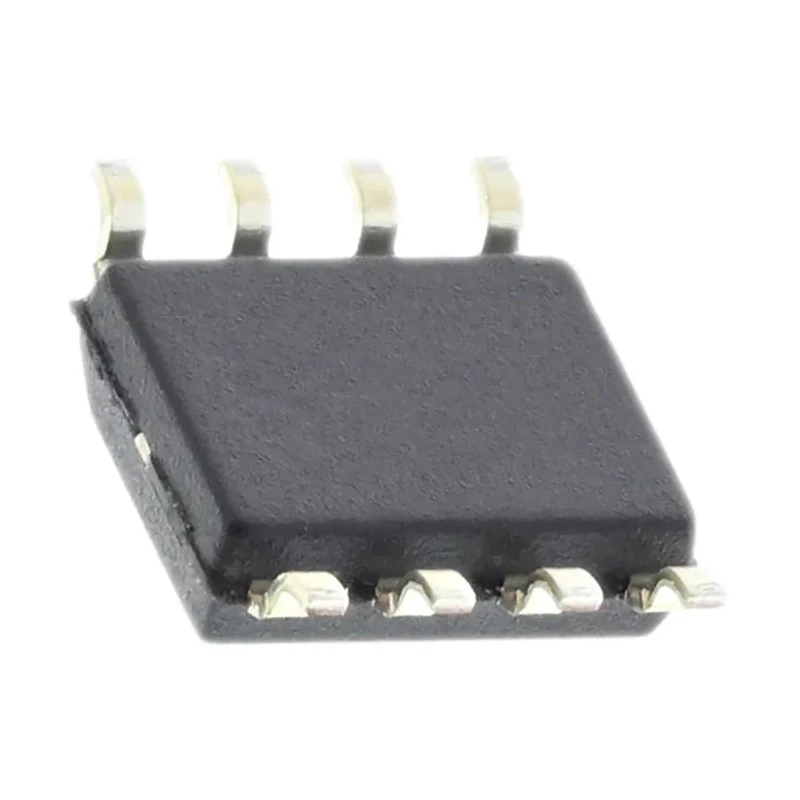

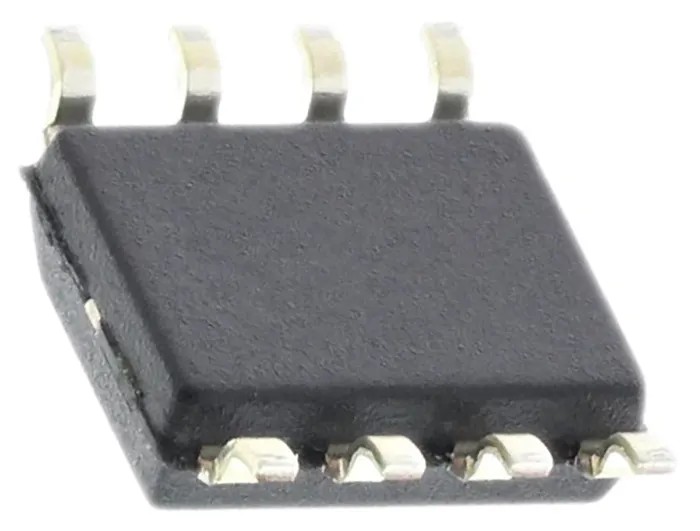

STMicroelectronics Operational Amplifier 4 MHz Bandwidth Surface Mount SOIC 8-Pin 12 V TS921ID

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier 4 MHz Bandwidth Surface Mount SOIC 8-Pin 12 V TS921ID

Name: STMicroelectronics Operational Amplifier 4 MHz Bandwidth Surface Mount SOIC 8-Pin 12 V TS921ID
Brand: STMicroelectronics
SKU: 374900
Price: 0.8 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.65mm
Length	5mm
Model	TS921ID
Width	4mm
Mount Type	Surface
Low Noise	9 nV/√Hz
Series	TS921
Output Current	80mA
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	8
Maximum Supply Voltage	12V
Minimum Supply Voltage	2.7V
GBP - Gain Bandwidth Product	4MHz
Input Bias Current	100 nA
Vos - Input Offset Voltage	5 mV
Slew Rate	1.3V/μs
High output current	80 mA (able to drive 32 Ω loads)
Input Offset Current	30 nA

Key Features

This operational amplifier is designed for surface mount with an 8-pin SOIC package.
The device supports supply voltages from 2.7 V to 12 V ensuring versatile application range.
It provides a high output current of up to 80 mA, capable of driving 32 Ω loads.
Features include low distortion, low input bias current, and excellent audio performance.
Operating temperature ranges from -40°C to 125°C for industrial-grade reliability.
Compact dimensions with length 5 mm, width 4 mm, and height 1.65 mm support high-density PCB designs.
Low input offset voltage of 5 mV and slew rate of 1.3 V/μs aid high speed analog applications.
This product is ideal for electronics, audio systems, industrial control, and instrumentation.

Product Description

STMicroelectronics TS921ID is a precision operational amplifier featuring a 4 MHz gain bandwidth product and a maximum supply voltage of 12 V supplied in an 8-pin SOIC surface mount package. It is engineered for a broad range of applications requiring low noise and excellent audio fidelity, such as industrial controls, laboratory instrumentation, and audio amplification systems.

This device offers rail-to-rail input and output capability, delivering a high output current of 80 mA suitable for driving 32 Ω loads. Its BiCMOS technology construction results in low distortion of 0.005% and a low input offset voltage of 5 mV, providing stable and accurate analog signal processing.

The amplifier supports a minimum supply voltage of 2.7 V, with operating temperature from -40°C to 125°C, ensuring dependable performance in harsh environments. The compact size with 5 mm length, 4 mm width, and 1.65 mm height facilitates integration into dense electronic assemblies.

Additional features include an input bias current of 100 nA, input offset current of 30 nA, and a slew rate of 1.3 V/μs. These specifications enhance response time and precision, making the TS921ID suitable for audio, measurement, and industrial applications.

The product is designed for surface mounting on PCBs, enabling automated manufacturing processes and high reliability in use. Operational bandwidth of 4 MHz for high speed signal processing. Rail-to-rail input/output and high output current for versatile use cases.

Low noise and distortion ensure excellent audio and signal quality. Suitable for industrial, laboratory, audio, and control systems. Compact and surface mount package supports modern PCB layouts. Explore more electronic components and Operational Amplifiers on EnvMart for robust and reliable solutions tailored to your industrial, commercial, and research needs.
