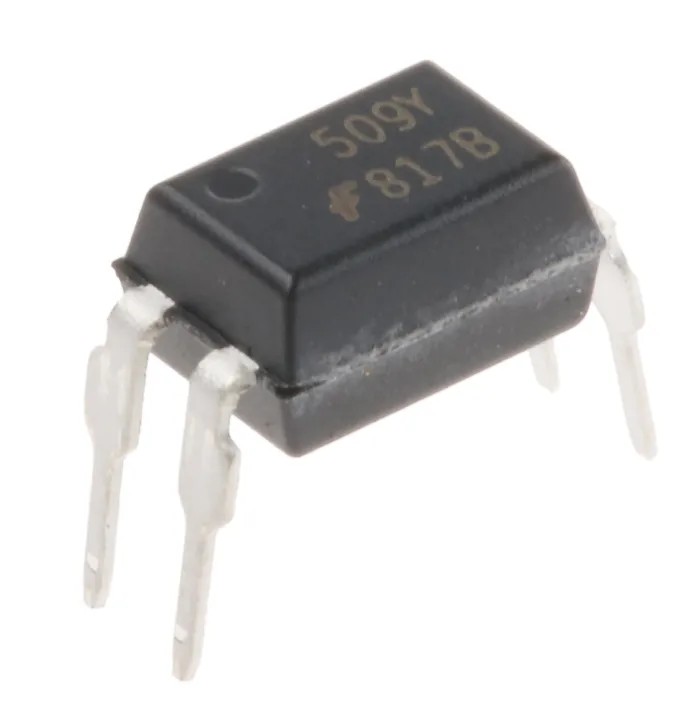

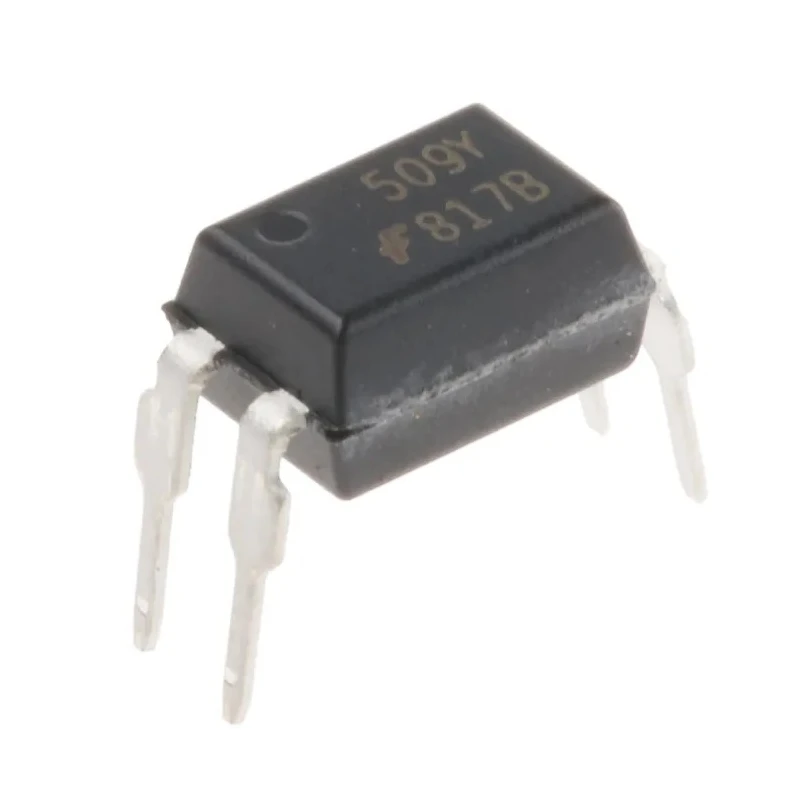

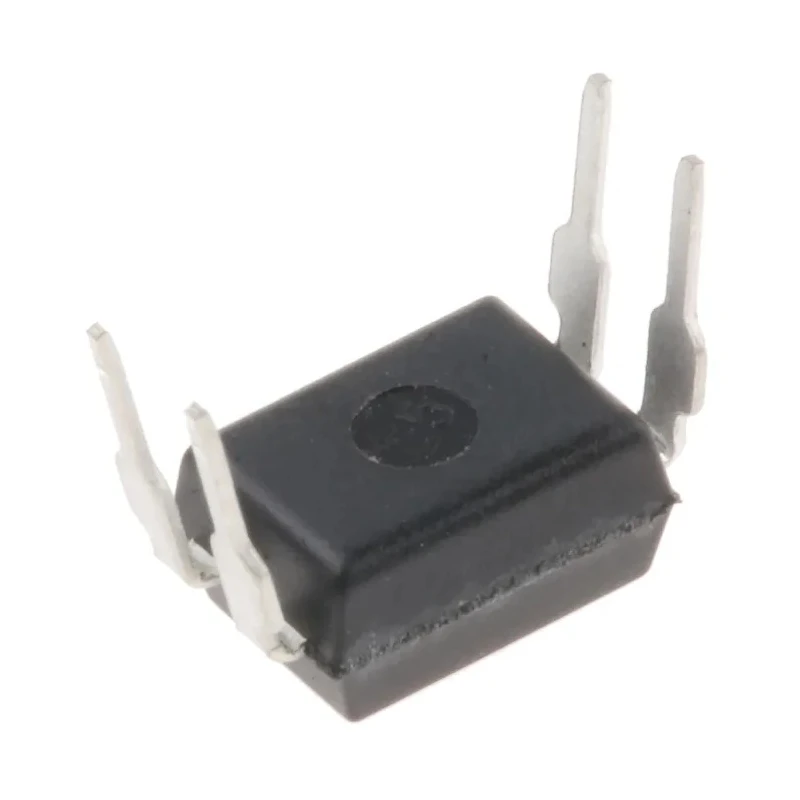

onsemi DC Input Optocoupler Through Hole 4-Pin MDIP 50mA Input Current FOD817B

Free Delivery in India | Lowest Global Shipping Charges

onsemi DC Input Optocoupler Through Hole 4-Pin MDIP 50mA Input Current FOD817B

Name: onsemi DC Input Optocoupler Through Hole 4-Pin MDIP 50mA Input Current FOD817B
Brand: onsemi
SKU: 374865
Price: 0.27 USD
Availability: InStock



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	FOD817B
Packaging	Tube
Mount Type	Through Hole
Output type	Transistor
Series	FOD
Maximum Operating Temperature	110°C
Package Type	MDIP
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	C-UL, UL and VDE
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	18μs
Maximum Current Transfer Ratio	260%
Minimum Current Transfer Ratio	130%

Key Features

The device operates with a maximum forward voltage of 1.4V.
It features a maximum input current rating of 50mA.
The typical rise and fall times are 18 microseconds each.
It provides a maximum current transfer ratio of 260% and a minimum of 130%.
Operating temperature ranges from -55°C to 110°C ensuring reliability in various conditions.
The optocoupler is UL, C-UL, and VDE approved, ensuring industry safety standards compliance.
Packaged in tubes for easy use in production lines.
The device includes one channel and has four pins arranged in an MDIP package format.

Product Description

The onsemi FOD817B is a high performance DC Input Optocoupler designed for applications requiring electrical isolation and signal transmission with transistor output. It is packaged in a 4-Pin Mini DIP (MDIP) through-hole mount, facilitating straightforward PCB integration in electronic circuits.

This device can handle a maximum forward voltage of 1.4V and supports an input current of up to 50mA, making it versatile for low power electronic applications. Its typical rise and fall times of 18 microseconds each provide responsive switching capabilities.

Operating within a broad temperature range from -55°C to 110°C, the FOD817B ensures stable performance even under harsh environmental conditions found in industrial or automotive settings. It offers a current transfer ratio between 130% minimum and 260% maximum, allowing efficient signal transfer with electrical isolation.

The optocoupler complies with recognized safety certifications including C-UL, UL, and VDE, which attests to its safety and reliability in power electronics and signal isolation circuits.

This product is packaged in tubes, suitable for automated assembly lines to enhance manufacturing efficiency. With one channel and four pins in the MDIP package, it is ideal for incorporation in circuits requiring isolated transistor output switching.

The onsemi FOD817B operates with a maximum forward voltage of 1.4V. The device supports a maximum input current of 50mA. Typical rise and fall times are both 18 microseconds. Current transfer ratio ranges from 130% to a maximum of 260%.

Operating temperature range is -55°C to 110°C. Complies with C-UL, UL, and VDE standards. Packaged in tubes intended for high-efficiency production. Contains a single channel with 4 pins in an MDIP configuration.

This optocoupler is ideally suited for diverse industrial and electronic applications including power control, signal isolation in communication devices, and measurement instruments. It excels in providing electrical isolation between input and output, protecting sensitive electronics from high voltages or spikes.
