onsemi DC Input Optocoupler Through Hole 8-Pin MDIP 1 Channel 6N137M

Free Delivery in India | Lowest Global Shipping Charges

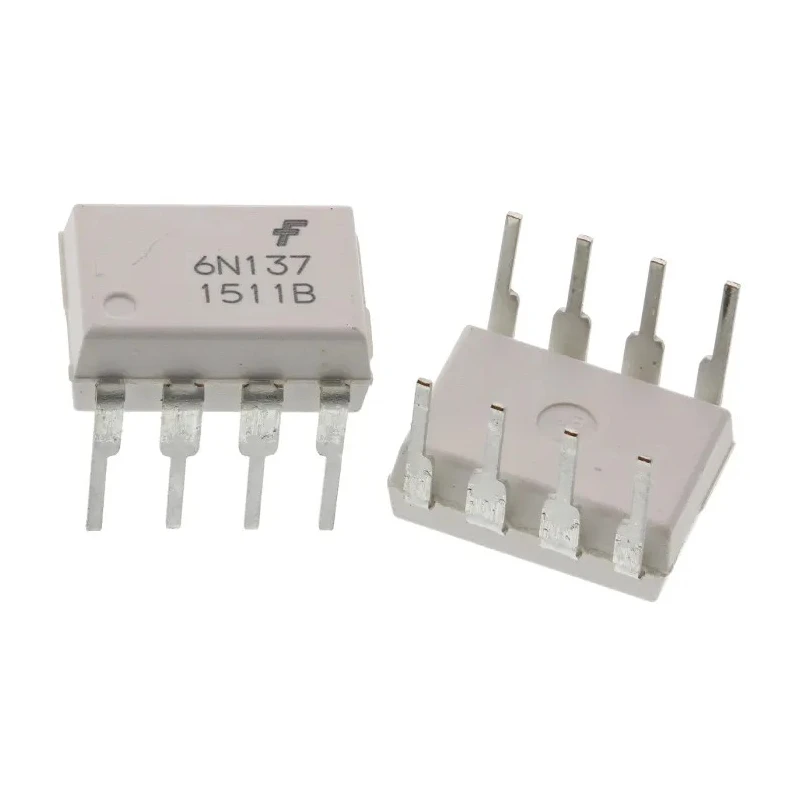

onsemi DC Input Optocoupler Through Hole 8-Pin MDIP 1 Channel 6N137M

Name: onsemi DC Input Optocoupler Through Hole 8-Pin MDIP 1 Channel 6N137M
Brand: onsemi
SKU: 374120
Price: 1.52 USD
Availability: InStock



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	6N137M
Packaging	Tape & Reel
Mount Type	Through Hole
Series	6N137
Maximum Operating Temperature	100°C
Package Type	MDIP
Minimum Operating Temperature	-40°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	DIN-EN/IEC60747-5-2 (VDE), UL Recognized (File E90700,Vol. 2)
Maximum Forward Voltage	1.8V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	30ns
Typical Fall Time	10ns

Key Features

Features a maximum forward voltage of 1.8V ensuring efficient input operation.
Supports DC input current type with a maximum input current of 50mA.
Typical rise and fall times are 30ns and 10ns respectively for fast switching.
Rated isolation voltage of 5kVrms providing excellent protection between input and output.
Operates over a wide temperature range from -40°C to 100°C.
Complies with DIN-EN/IEC60747-5-2 (VDE) and UL Recognized standards for quality assurance.
Packaged in tape & reel format facilitating automated assembly processes.

Product Description

onsemi 6N137M is a DC input optocoupler designed for use in electronic and electrical systems requiring galvanic isolation combined with fast logic output response. This device incorporates a high-isolation barrier providing a typical isolation voltage of 5kVrms while maintaining low input forward voltage and current.

Housed in an 8-pin through-hole MDIP package, the optocoupler is designed for robust mounting and easy insertion in PCB assemblies. Its single channel supports DC input currents up to 50mA with a maximum forward voltage of 1.8V. The device features rapid switching times with a typical rise time of 30ns and fall time of 10ns, making it suitable for digital interfaces and signal isolation in industrial, laboratory, manufacturing, and communication equipment applications.

This model complies with rigorous international standards such as DIN-EN/IEC60747-5-2 and is UL recognized (File E90700, Vol. 2), assuring reliability for demanding environments. Operating reliably between -40°C and 100°C, it meets the needs of various industrial and commercial use cases.

The product arrives packaged in tape and reel, enhancing efficiency in automated production lines and reducing handling errors. Typical applications include signal isolation, logic interfacing, and noise reduction in sensitive control circuits across automation, HVAC, and power systems.

Maximum forward voltage of 1.8V ensures low power dissipation. Isolation voltage rating of 5kVrms for safety assurance. Fast switching with rise and fall times of 30ns and 10ns respectively. Wide operating temperature range from -40°C to 100°C to suit diverse environments.

Tape & reel packaging supports automated assembly processes. Meets DIN-EN/IEC60747-5-2 (VDE) and UL Recognized standards. Single channel operation within 8-pin MDIP through-hole package. Explore more high-performance Optocouplers and electronic components in the onsemi category at EnvMart for your industrial and commercial electronic applications.
