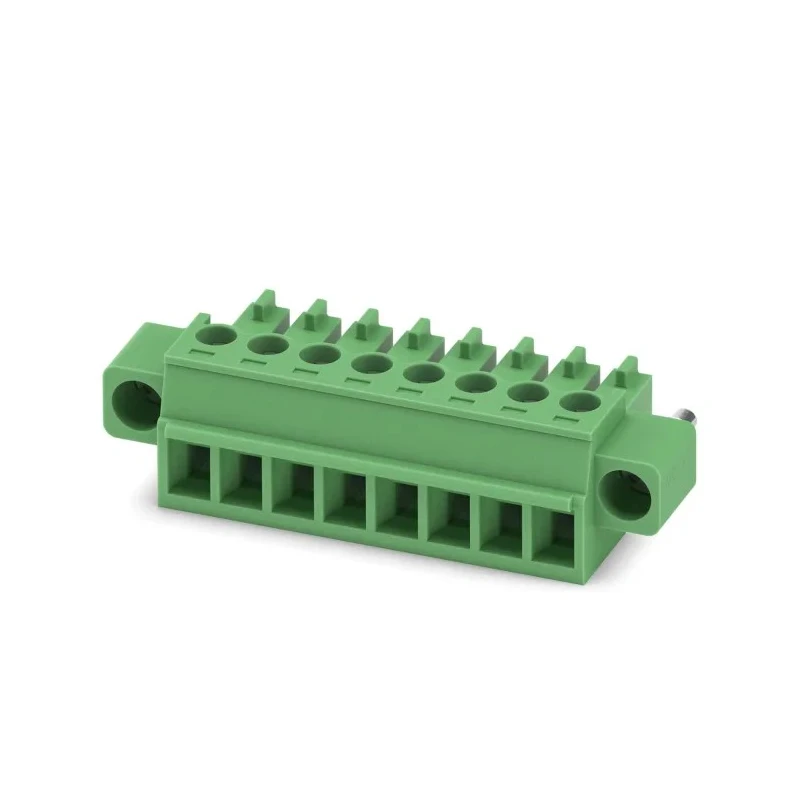

Phoenix Contact MC 1.5/8-STF-3.81 Series Pluggable Terminal Block, 8-Contact, 3.81 mm Pitch, 1 Row 1827761

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MC 1.5/8-STF-3.81 Series Pluggable Terminal Block, 8-Contact, 3.81 mm Pitch, 1 Row 1827761

Name: Phoenix Contact MC 1.5/8-STF-3.81 Series Pluggable Terminal Block, 8-Contact, 3.81 mm Pitch, 1 Row 1827761
Brand: PHOENIX CONTACT
SKU: 374018
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	8A
Length	40.87mm
Model	1827761
Depth	11.1mm
Width	16.1mm
Housing Material	Polyamide
Series	MC 1.5/8-STF-3.81
Number of Rows	1
Pitch	3.81mm
Standards/Approvals	RoHS
Number of Contacts	8
Connector Gender	Female
Minimum Wire Size mm²	2mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	16AWG
Wire Connection Method	Screw

Key Features

Includes 8 female contacts arranged in a single row.
Supports wire sizes from 28 AWG to 16 AWG (0.14 mm² to 1.5 mm²).
Rated current capacity of 8 A and voltage rating of 320 V.
Constructed with polyamide housing ensuring durability and reliability.
Utilizes screw connection method with tension sleeve for secure wire fixing.
Complies with RoHS standards and suitable for high vibration environments.
Operating temperature range from -40°C to +70°C for versatile applications.
Green colored connector with straight orientation for easy PCB mounting.

Product Description

Phoenix Contact 1827761 MC 1.5/8-STF-3.81 Series Pluggable Terminal Block is an 8-contact female terminal block with 3.81 mm pitch and single-row configuration designed for reliable PCB connections. Rated for 8 A current and 320 V voltage, it features a polyamide housing providing excellent insulation and mechanical stability.

This terminal block supports wire sizes ranging from 28 AWG (0.14 mm²) to 16 AWG (1.5 mm²) and employs a screw connection method with tension sleeves to secure wires firmly, ensuring high vibration resistance and preventing loosening.

The compact dimensions of length 40.87 mm, width 16.1 mm, and depth 11.1 mm make it suitable for use in tight spaces on PCBs and industrial control panels. The connector’s green color and straight orientation enable easy identification and mounting.

Compliant with RoHS standards, this terminal block is ideal for industrial, manufacturing, automation, and electrical control applications requiring secure and permanent connections of power, signals, or data.

The MC 1.5/8-STF-3.81 series is recognized for its high-quality copper alloy contacts with tin plating, offering maximum reliability in demanding environments. It operates efficiently across a wide temperature range from -40°C to +70°C.

Includes 8 female contacts arranged in a single row. Supports wire sizes from 28 AWG to 16 AWG (0.14 mm² to 1.5 mm²). Rated current capacity of 8 A and voltage rating of 320 V. Constructed with polyamide housing ensuring durability and reliability.

Utilizes screw connection method with tension sleeve for secure wire fixing. Compact design with dimensions: length 40.87 mm, width 16.1 mm, depth 11.1 mm. Complies with RoHS standards and suitable for high vibration environments.

Operating temperature range from -40°C to +70°C for versatile applications. Green colored connector with straight orientation for easy PCB mounting. Part of the MC 1.5/8-STF-3.81 series known for high quality and performance.

Choose Phoenix Contact MC 1.5/8-STF-3.81 Series Pluggable Terminal Blocks for reliable industrial and electronic applications. Explore more connectors and components at EnvMart to suit your project requirements.
