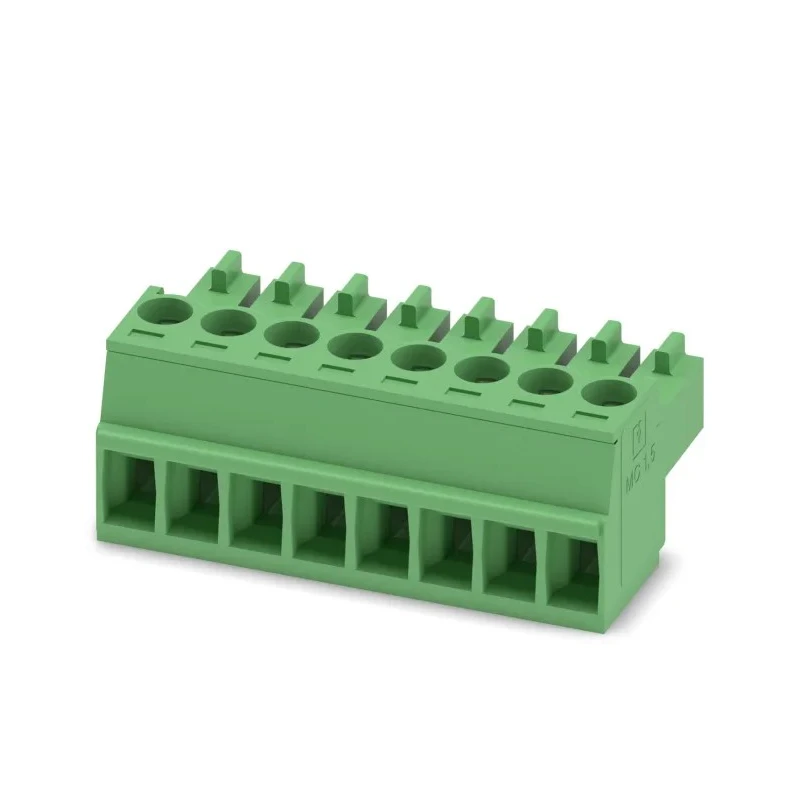

Phoenix Contact MC 1.5/8-ST-3.5 Series Pluggable Terminal Block, 8-Contact, 3.5 mm Pitch, 1 Row 1840421

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MC 1.5/8-ST-3.5 Series Pluggable Terminal Block, 8-Contact, 3.5 mm Pitch, 1 Row 1840421

Name: Phoenix Contact MC 1.5/8-ST-3.5 Series Pluggable Terminal Block, 8-Contact, 3.5 mm Pitch, 1 Row 1840421
Brand: PHOENIX CONTACT
SKU: 373986
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	8A
Length	28mm
Model	1840421
Depth	11.1mm
Width	16.1mm
Housing Material	Polyamide
Series	MC 1.5/8-ST-3.5
Number of Rows	1
Pitch	3.5mm
Standards/Approvals	RoHS
Number of Contacts	8
Connector Gender	Female
Minimum Wire Size mm²	2mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	16AWG
Wire Connection Method	Screw

Key Features

The terminal block features a compact 3.5 mm pitch for space-saving PCB layouts.
It supports up to 8 contacts in a single row configuration.
Screw terminal connection with integrated tension sleeves ensures secure and vibration-resistant wiring.
Compatible with conductor cross-sections from 0.14 mm² to 1.5 mm² and AWG 28 to AWG 16 wires.
Constructed with durable polyamide housing providing shock resistance and UL 94 V0 flame-retardant rating.
Rated for a maximum current of 8A and voltage of 320V.
Operating temperature range spans from -40°C to +100°C for reliable use in demanding environments.
Its straight orientation and green color aid easy identification and installation.

Product Description

Phoenix Contact 1840421 series pluggable terminal block is a robust and compact connector solution designed for industrial and manufacturing electrical systems. Featuring an 8-contact single-row design with a 3.5 mm pitch, this terminal block accommodates multiple wires efficiently on PCB layouts where space is at a premium.

The unit carries screw terminals with integrated tension sleeves to ensure minimal disruption from mechanical vibrations or conductor movement, enhancing long-term connection reliability. Its polyamide housing provides excellent shock resistance and meets UL 94 V0 flame-retardant standards, ensuring safety in industrial environments.

Designed to support conductor cross-sections between 0.14 and 1.5 mm² (28 to 16 AWG), it caters to a wide range of wiring needs. It supports a continuous current rating of 8A and operates at voltages up to 320V, suitable for controlling and power applications. The straight orientation and green color coding simplify installation and wiring verification.

Operating over a temperature range of -40°C to +100°C, the terminal block performs reliably under harsh conditions encountered in manufacturing plants, rail industry electrical panels, and automated control devices. Its compact dimensions - 28 mm length, 16.1 mm width, and 11.1 mm depth - fit well into constrained mounting environments.

The terminal block uses screw connection method with tension sleeves for vibration resistance. Housing is robust polyamide with UL 94 V0 flame-resistance. Voltage rating up to 320V and current rating of 8A. Supports 8 conductor contacts on a single row at 3.5 mm pitch.

Operating temperature -40°C to +100°C ensures durability in demanding industrial use.

This Phoenix Contact terminal block is well-suited for various electronics applications requiring safe, reliable, and compact wire connections. It is commonly used in industrial automation, manufacturing process controls, and rail transport equipment. Explore more Pluggable Terminal Blocks and components for your electrical system needs at EnvMart.
