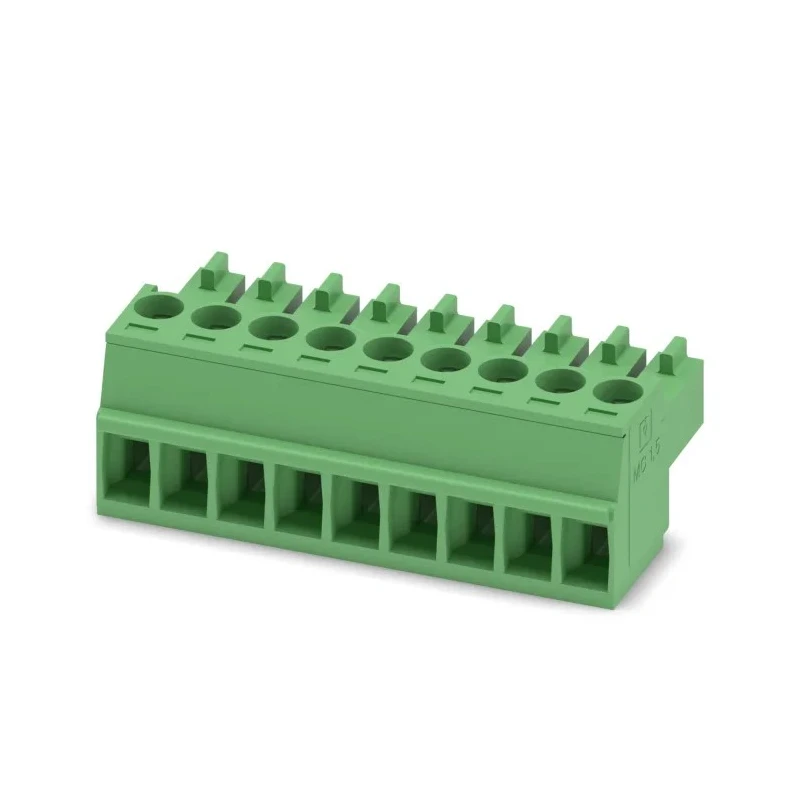

Phoenix Contact MC 1.5/9-ST-3.5 Series Pluggable Terminal Block, 9-Contact, 3.5 mm Pitch, 1 Row 1840434

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MC 1.5/9-ST-3.5 Series Pluggable Terminal Block, 9-Contact, 3.5 mm Pitch, 1 Row 1840434

Name: Phoenix Contact MC 1.5/9-ST-3.5 Series Pluggable Terminal Block, 9-Contact, 3.5 mm Pitch, 1 Row 1840434
Brand: PHOENIX CONTACT
SKU: 373964
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	8A
Length	31.5mm
Model	1840434
Depth	11.1mm
Width	16.1mm
Housing Material	Polyamide
Series	MC 1.5/9-ST-3.5
Number of Rows	1
Pitch	3.5mm
Standards/Approvals	RoHS
Number of Contacts	9
Connector Gender	Female
Minimum Wire Size mm²	2mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	16AWG
Wire Connection Method	Screw

Key Features

Rated nominal current of 8A for reliable conductivity.
Features 3.5mm pitch with 1 row configuration.
Screw connection method ensures tight and secure wire fixation.
Compatible with wire sizes from 28 AWG to 16 AWG.
Constructed from green polyamide housing material for durability.
Designed with female connector gender and straight orientation.
Operates at a voltage rating of 320V.
Compact dimensions of 31.5mm length, 16.1mm width, and 11.1mm depth.

Product Description

Phoenix Contact 1840434 is a high-quality pluggable terminal block from the MC 1.5/9-ST-3.5 series designed for electrical and electronic applications. Featuring 9 contacts and a 3.5 mm pitch across a single row, this terminal block allows secure and efficient connection in low-voltage circuits up to 320V.

Its screw connection system provides a tight and reliable wire connection, accommodating wires from 28 AWG to 16 AWG and cross-sectional areas between 0.14 mm² and 1.5 mm². The terminal block's housing is made from durable green polyamide material, ensuring mechanical strength and electrical insulation.

This product is ideally suited for industrial, automation, PCB, and control panel applications where precise, compact, and safe wiring is critical. The terminal block has a nominal current rating of 8A and low temperature rise, making it suitable for demanding environments.

Physical dimensions are 31.5 mm in length, 16.1 mm in width, and 11.1 mm in depth, fitting compact layout requirements. Its straight orientation and female connector gender enhance its versatility in multiple wiring scenarios.

Rated nominal current of 8A ensures reliable operation. Compact 3.5 mm pitch spacing for high-density PCB use. Screw connection method provides a secure grip on wires. Polyamide housing offers durability and insulation. Supports wire sizes from 28 AWG to 16 AWG.

Voltage rating up to 320V for various electronic applications. Compliance with RoHS standards guarantees eco-friendly design. Single-row configuration with 9 contacts optimizes space. Easy to install and maintain in industrial environments.

Optional accessories such as mating plugs and dedicated screwdrivers are available to complement this terminal block for streamlined assembly and maintenance. This terminal block is a trusted component in power and signal distribution within manufacturing, industrial automation, PCB mounting, and electrical control systems.

Explore the category of Pluggable Terminal Blocks for additional compatible products and Phoenix Contact solutions on EnvMart.
