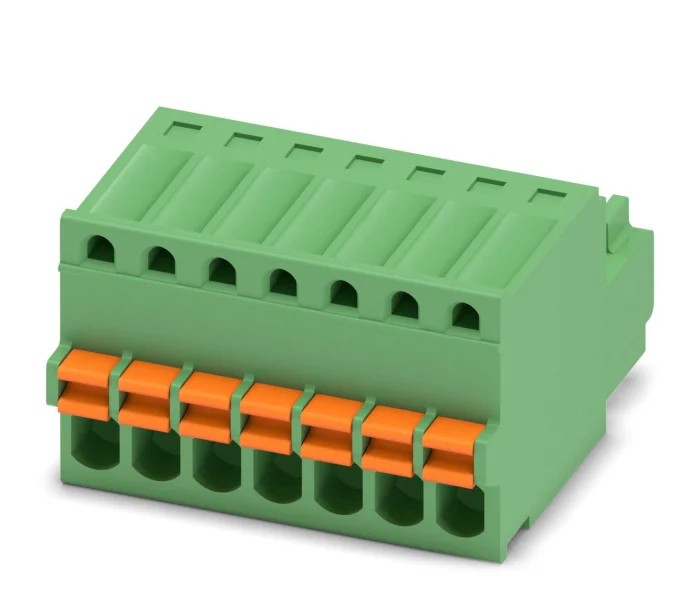

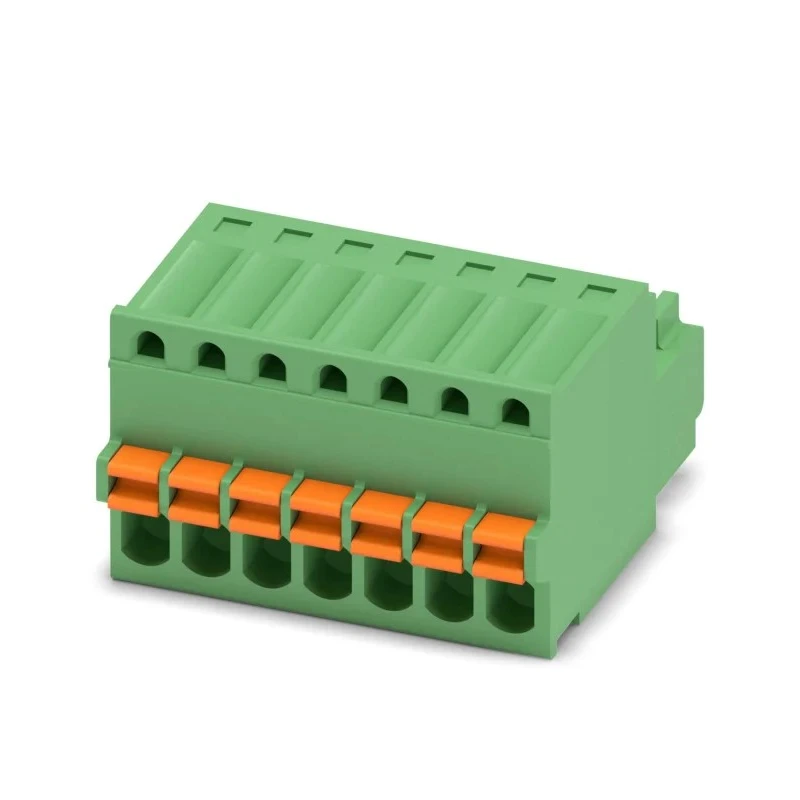

Phoenix Contact FK-MC 0.5/7-ST-2.5 Series Pluggable Terminal Block, 7-Contact, 2.5 mm Pitch, 4A Current, Female 1881370

Phoenix Contact 1881370 FK-MC 0.5/7-ST-2.5 Series Pluggable Terminal Block, with 7 contacts and a 2.5 mm pitch, provides a reliable solution for signal, data, and power interconnections. Designed with a female connector and push-in spring wire connection method, it ensures firm retention of conductors, mitigating issues caused by vibrations.

The compact one-row terminal block features a high surge voltage rating of 2.5 kV, making it resilient to electrical faults. Its polyamide housing delivers excellent mechanical protection and chemical resistance, suitable for harsh environments spanning temperatures from -40°C to +100°C.

With a current rating of 4A and a voltage rating of 320V, this terminal block accommodates wire sizes ranging from 0.14 mm² to 0.5 mm² (26 to 20 AWG), making it versatile for various industrial electronics applications. The straight orientation supports quick and straightforward wiring for PCB-mounted systems.

Manufactured to IEC 60999-1 standards, it minimizes conductor damage during mating, enhancing long-term reliability. Typical industrial applications include automated machinery control and server management where dependable electrical connections are critical.

Seven-contact configuration with 2.5 mm pitch for space efficiency. Push-in spring connection ensures secure wire retention without screws. Polyamide housing offers durable impact and chemical resistance. Wide operating temperature range from -40°C to +100°C.

Meets IEC 60999-1 standard for electrical and mechanical safety. Compact dimensions of 18.1 mm length, 19.2 mm width, and 11.75 mm depth. Voltage rating of 320 V and current rating of 4 A.

This Phoenix Contact Pluggable Terminal Block is an excellent choice for electronics, industrial automation, and power distribution tasks requiring a secure, compact, and durable terminal solution. Browse our selection of Pluggable Terminal Blocks and related products on EnvMart to find compatible components and accessories.
