Phoenix Contact MCV 1.5/11-G-3.81 Series Pluggable Terminal Block 11-Contact 3.81 mm Pitch 250V 8A 1 Row 1803510

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MCV 1.5/11-G-3.81 Series Pluggable Terminal Block 11-Contact 3.81 mm Pitch 250V 8A 1 Row 1803510

Name: Phoenix Contact MCV 1.5/11-G-3.81 Series Pluggable Terminal Block 11-Contact 3.81 mm Pitch 250V 8A 1 Row 1803510
Brand: PHOENIX CONTACT
SKU: 373632
Price: 4.08 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	Phoenix Contact
Colour	Green
Orientation	Right Angle
Current	8A
Length	7.25mm
Model	1803510
Depth	12.6mm
Width	43.3mm
Housing Material	Polybutylene Terephthalate
Series	MCV 1.5/11-G-3.81
Number of Rows	1
Pitch	3.81mm
Number of Contacts	11
Connector Gender	Male
Maximum Wire Size mm²	1.5mm²
Wire Connection Method	Solder

Key Features

This terminal block supports a nominal current of 8 amperes.
It is designed with a green polybutylene terephthalate housing for durability.
The connector has a male gender and right-angle orientation for versatile PCB integration.
Connection method involves soldering to ensure secure wire attachment.
The maximum wire size supported is 1.5 mm² suited for various applications.
Rated for a voltage of 250 volts suitable for a wide range of electrical circuits.
Manufactured in Germany ensuring quality and compliance with industrial standards.

Product Description

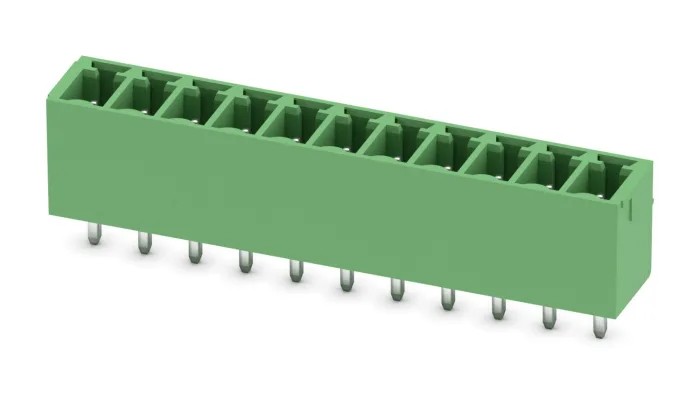

Phoenix Contact 1803510 is a high-quality pluggable terminal block belonging to the MCV 1.5/11-G-3.81 series. It features 11 contacts with a precise 3.81 mm pitch laid out in a single row, designed primarily for robust electrical connectivity on printed circuit boards.

Constructed from green polybutylene terephthalate (PBT), the housing ensures mechanical strength and resistance to environmental extremes. This material lends the terminal block excellent durability and suitability for industrial, manufacturing, and electronic assembly applications.

The terminal block supports a nominal current of 8 A and is rated for 250 V, making it ideal for low to medium power circuitry. Its male gender right-angle connector format facilitates flexible PCB layouts and integration, allowing for multi-row arrangements where required.

Wiring is secured using a solder connection method compatible with wave soldering techniques for efficient PCB mounting. The maximum wire cross-section accommodated is 1.5 mm², accommodating a variety of wire sizes used in control and power distribution circuits.

Dimensionally compact with 7.25 mm length, 43.3 mm width, and 12.6 mm depth, this terminal block offers space savings without compromising connection reliability. The product is made in Germany, reflecting strong manufacturing quality and adherence to relevant standards, although it holds no specific certifications listed.

Nominal current rating of 8 amperes ensures reliable power handling. Green PBT housing provides durability and chemical resistance. Designed for wave soldering on PCBs with a 3.81 mm pitch. Right-angle male connector format enables versatile PCB design.

Supports wires up to 1.5 mm² cross-sectional area. Voltage rating of 250 V suits various electronic and power circuits. Compact form factor with minimal footprint dimensions. Manufactured in Germany to ensure industrial-grade quality.

This pluggable terminal block is well suited for industrial automation, electronic component assemblies, power distribution boards, and control cabinets. It is widely used in manufacturing environments requiring dependable, modular electrical connections.
