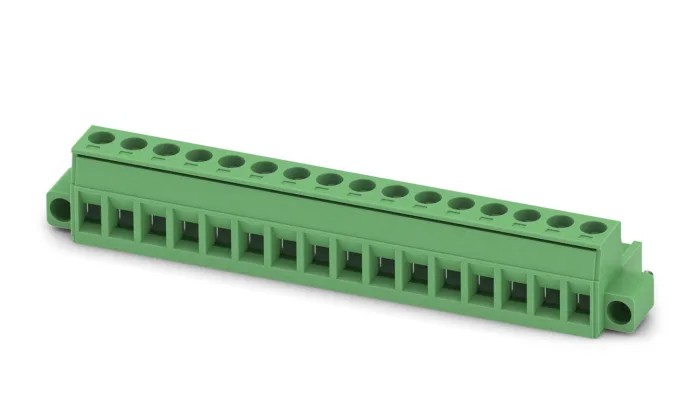

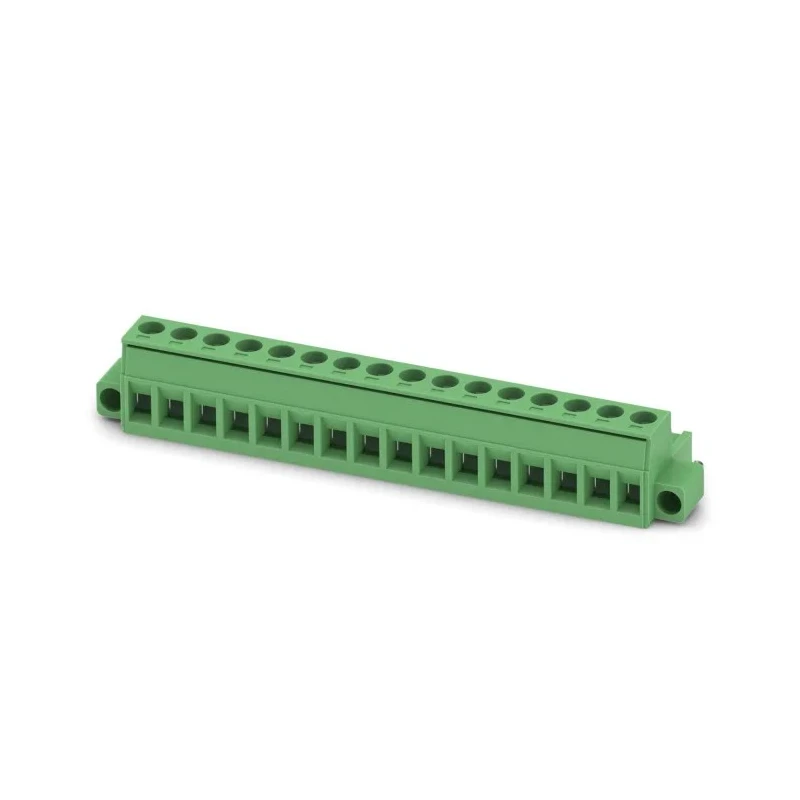

Phoenix Contact MSTB 2.5/16-STF-5.08 Series Pluggable Terminal Block 16-Contact 5.08 mm Pitch 320V 12A 1 Row 1778124

Phoenix Contact 1778124 MSTB 2.5/16-STF-5.08 Series Pluggable Terminal Block features a compact design with 16 contacts spaced at a 5.08 mm pitch, ideal for PCB mounting applications. The terminal block supports a rated current of 12A and a voltage of 320V, making it suitable for various industrial and electrical installations.

The terminal block housing is manufactured from high-quality polyamide, offering excellent insulation and resistance against corrosion, ensuring durability even in humid or challenging environments. The green-colored housing complies with IP20 safety standards, providing finger-safe protection against inadvertent contact.

Connection is achieved via screw connection with tension sleeve, which enables secure and reliable wire attachment capable of accommodating wire sizes from 0.2 mm² up to 2.5 mm² (equivalent to AWG 24 to 12). The single row, straight orientation configuration facilitates easy integration into compact layouts.

This product conforms to UL94 V0 flammability requirements, ensuring flame retardance and enhanced safety in the event of fire. While no formal international standards approvals are declared, its operational specifications make it suitable for machine-building and electrical installation applications across industrial, manufacturing, and automation sectors.

The mechanical durability of 25 connection cycles allows for multiple wiring changes without degradation of connection integrity, supporting maintenance and system upgrades. The terminal block’s nylon construction improves system longevity by preventing corrosion and electrical shocks, which are critical in maintaining consistent electrical performance.

Supports current rating of 12 amperes for reliable power handling. Constructed with polyamide housing providing strong insulation and durability. Features screw connection with tension sleeve for secure wire attachment. Compatible with wire sizes from 0.2 mm² to 2.5 mm² (AWG 24 to 12).

Single row design with straight orientation for compact PCB mounting. Rated voltage of 320 volts suitable for multiple electrical applications. Green color housing with IP20 finger-safe protection standard. Mechanical durability rated at 25 cycles ensuring repeated connection reliability.

The Phoenix Contact MSTB series provides reliable Pluggable Terminal Block solutions widely implemented in industrial automation, electrical installation, and manufacturing applications. Browse the EnvMart electronics categories to find compatible connectors and terminal block accessories.
