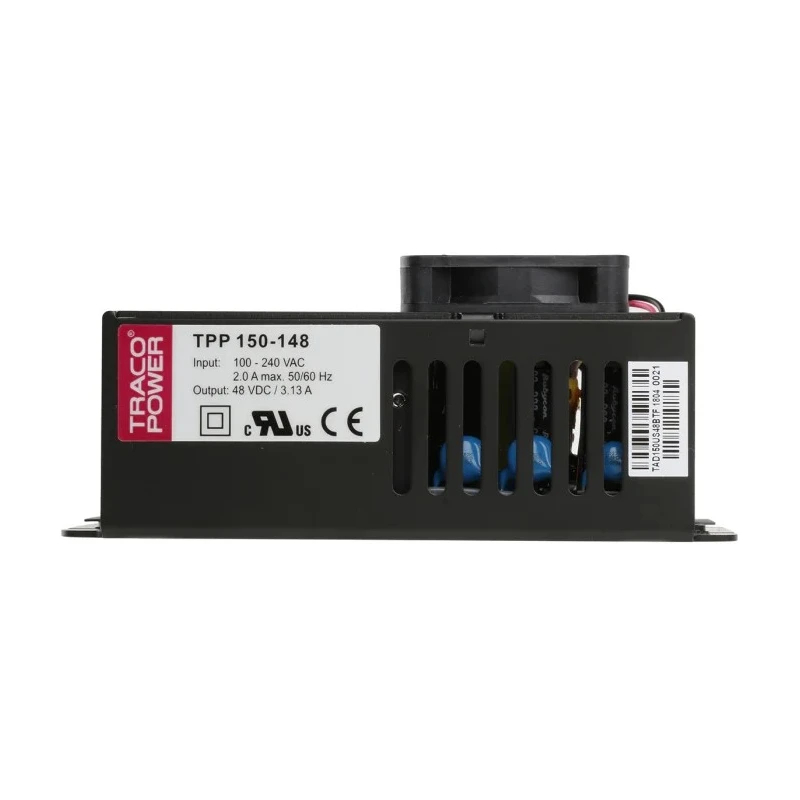

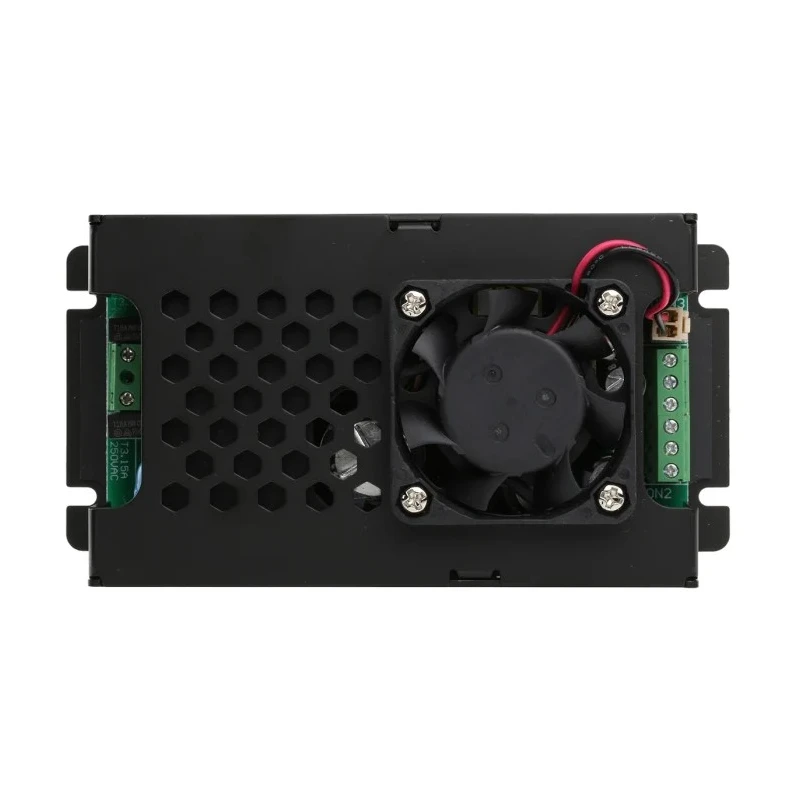

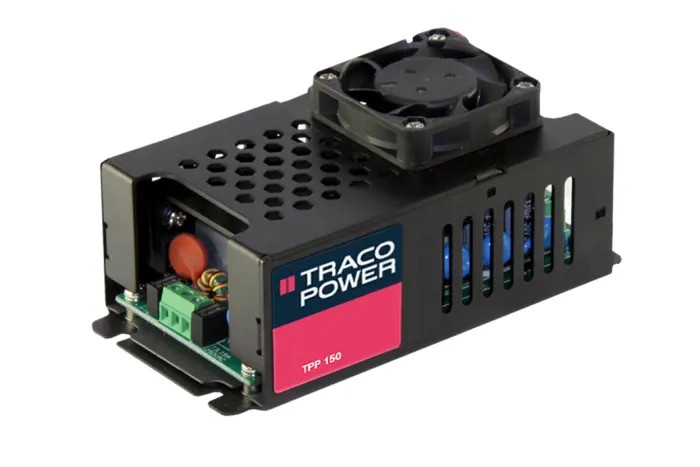

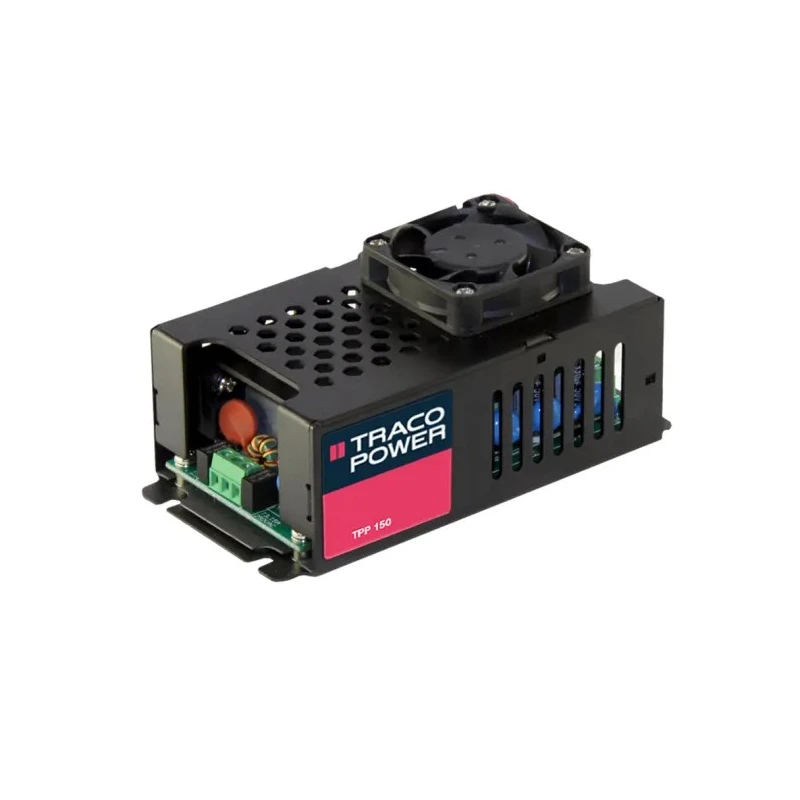

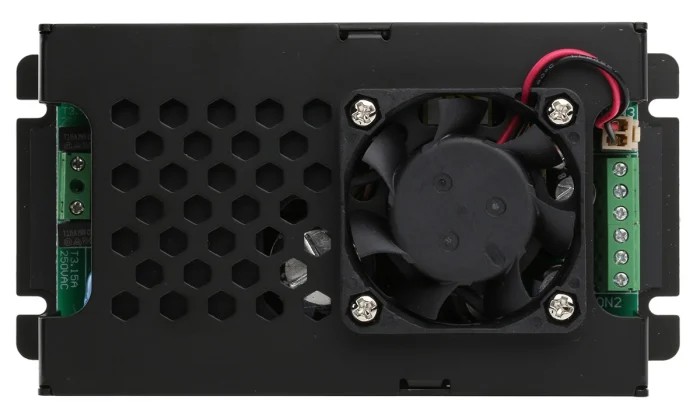

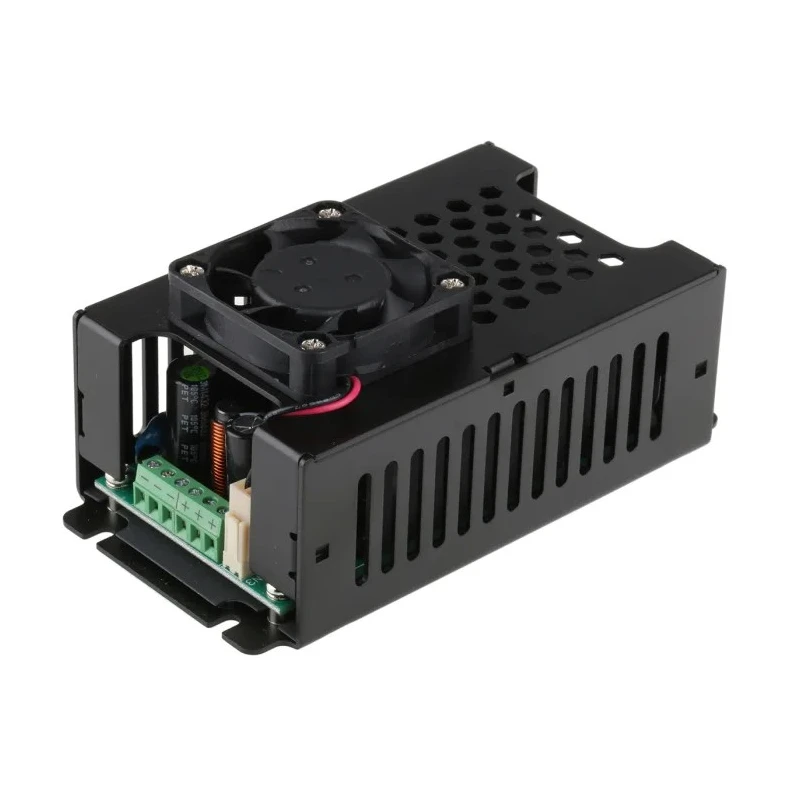

TRACOPOWER Switching Power Supply 48V 150W Universal Input Chassis Mount TPP 150-148

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 48V 150W Universal Input Chassis Mount TPP 150-148

Name: TRACOPOWER Switching Power Supply 48V 150W Universal Input Chassis Mount TPP 150-148
Brand: TRACOPOWER
SKU: 373547
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	150W
Efficiency	92%
Model	TPP 150-148
Depth	101.6mm
Gross Weight	273g
Width	50.8mm
Mount Type	Chassis
Series	TPP 150
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V
Standards/Approvals	ANSIAAMI ES 606011, EN 606011, IEC 606011, UL 609501
Maximum Output Voltage	48V
SMPS Output Current	3.13A
Minimum Input Voltage	90V ac
2 x MOPP Medical safety according to AAMI/ANSI ES 60601-1	2005 (R)

Key Features

Supports universal AC input voltage range from 90VAC to 264VAC.
Provides single output with 3.13A rated current at 48VDC.
High operating efficiency of up to 92% ensures reliable and energy-efficient performance.
Operates within temperature range from -20°C to 70°C, suitable for diverse industrial conditions.
Compact size with 101.6mm depth and 50.8mm width for versatile mounting.
Reinforced double I/O isolation meeting medical safety standards for safe usage.
Low leakage current and active power factor correction (>95%) enhance system stability.
Constructed with industrial-grade components for dependable long-term use.

Product Description

TRACOPOWER TPP 150-148 switching power supply is a high-performance AC to DC embedded switch mode power supply designed for industrial and medical applications. It features a single output voltage of 48V with a power rating of 150W, providing a stable output current of 3.13A. The power supply supports a universal input voltage range from 90VAC to 264VAC and 120VDC to 370VDC, making it adaptable to various electrical environments.

The robust chassis mount design with dimensions 101.6mm depth and 50.8mm width supports easy integration into existing systems. It operates efficiently with up to 92% efficiency, minimizing energy waste and heat generation. The unit can operate reliably in ambient temperatures from -20°C up to 70°C, with built-in thermal management to ensure durability.

This power supply incorporates reinforced double I/O isolation certified under the latest medical safety standards, making it suitable for use in sensitive healthcare devices. Active power factor correction (>95%) and low leakage current reduce electrical disturbances, improving system safety and performance.

The construction utilizes industrial-grade quality components, ensuring long service life and reliability in demanding industrial, laboratory, and medical equipment scenarios. Compliance with ANSI/AAMI ES 60601-1, EN 60601-1, IEC 60601-1, and UL 60950-1 standards confirms its suitability for medical and general industrial use.

Supports universal AC input voltage from 90V to 264V AC. Single output at 48V DC with output current of 3.13A. High efficiency of 92% suitable for energy-conscious applications. Robust chassis mount with compact footprint of 101.6mm depth and 50.8mm width.

Operable temperature range from -20°C to 70°C for versatile use. Reinforced double I/O isolation for safety compliance in medical environments. Active power factor correction to greater than 95%. Low leakage current minimizes risks in sensitive equipment.

Manufactured using industrial quality components for reliability. Certified to ANSI/AAMI ES 60601-1 and UL 60950-1 safety standards.

This TRACOPOWER switching power supply is ideal for industrial, laboratory, medical, and commercial applications requiring reliable and safe 48V DC power. Explore more from the Power Supplies category at EnvMart for complementary products and advanced power management solutions.

Explore more products in our Switching Power Supplies category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model provides a single output voltage of 48V DC with a rated output current of 3.13A.

It operates with a high efficiency of up to 92%, which helps minimize energy waste.

The chassis mount design has a compact footprint with a depth of 101.6mm and a width of 50.8mm.

It can operate reliably within a temperature range of -20°C to 70°C, making it suitable for various industrial conditions.

This power supply is certified to ANSI/AAMI ES 60601-1, EN 60601-1, IEC 60601-1, and UL 60950-1 standards, ensuring safety for medical and industrial applications.

It features a chassis mount design, facilitating easy integration into existing systems.

The gross weight of this unit is 273g.

Yes, it includes active power factor correction greater than 95%, which enhances system stability.
