Wurth Elektronik Wirewound Surface Mount Inductor 18 μH ±10 % 1.1 A Idc 4532 WE-PD2 744773118

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Wirewound Surface Mount Inductor 18 μH ±10 % 1.1 A Idc 4532 WE-PD2 744773118

Name: Wurth Elektronik Wirewound Surface Mount Inductor 18 μH ±10 % 1.1 A Idc 4532 WE-PD2 744773118
Brand: Wurth Elektronik
SKU: 372811
Price: 1.83 USD
Availability: InStock



Category Surface Mount Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	3.2mm
Length	4.5mm
Depth	4mm
Packaging	Tape & Reel
Series	WE-PD2
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Inductance	18μH
Standards/Approvals	JEDEC JS709B, REACH, RoHS
Package/Case	4532
Maximum DC Current	1.1A
Maximum DC Resistance	338mΩ
Inductance Tolerance	±10 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	22MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

This inductor features a 4532 package size suitable for surface mount technology.
It is an unshielded wirewound type with maximum DC resistance of 338 mΩ.
Designed for reliable operation between -40°C and 125°C.
Has a maximum self-resonant frequency of 22 MHz for efficient signal handling.
Suitable for use in automotive electronics with AEC-Q200 standard compliance.
Constructed with moulded wirewound technology for durability.
Termination style is surface mount, ideal for reflow soldering processes.
Product originates from China and meets JEDEC JS709B, REACH, and RoHS standards.

Product Description

Wurth Elektronik 744773118 Wirewound Surface Mount Inductor, series WE-PD2, offers an inductance of 18 μH ±10 % with a current rating of 1.1 A Idc, designed specifically for efficient power regulation in various electronic applications.

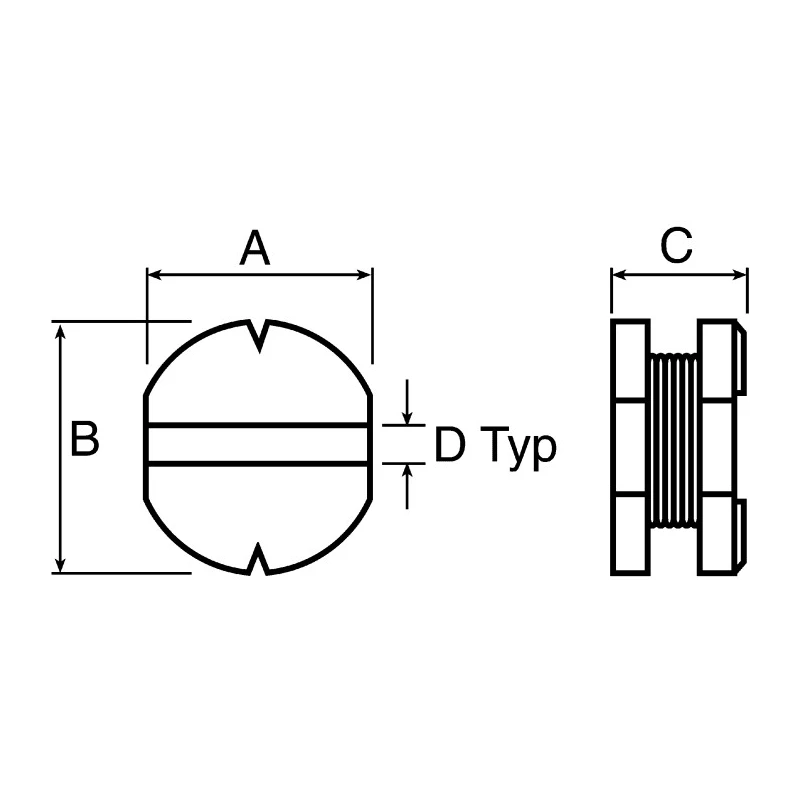

The component has a 4532 package with dimensions 4.5 mm in length, 4 mm in depth, and 3.2 mm in height, making it suitable for space-constrained PCB layouts requiring surface mount technology.

Its unshielded wirewound construction provides stable inductance with a maximum DC resistance of 338 mΩ, ensuring minimal power loss. Operating temperature ranges from -40°C to 125°C enable durability across diverse environmental conditions.

The maximum self-resonant frequency of 22 MHz supports high-frequency switching applications such as DC/DC converters, laptops, mobile phones, and other power-sensitive electronics. The product complies with the automotive standard AEC-Q200 and meets JEDEC JS709B, REACH, and RoHS environmental standards.

Manufactured in China, the WE-PD2 Series inductors by Wurth Elektronik are molded wirewound power inductors designed for reflow soldering processes, offering high current capability and reliability.

This inductor features a 4532 case size with surface mount termination style. Inductance tolerance is ±10 %, suitable for precision electronic designs. It supports a maximum DC current of 1.1 A and is unshielded for specific application uses.

Maximum operating temperature is 125°C, allowing robust thermal performance. The package is supplied in tape and reel format, facilitating automated assembly. Compliant with multiple standards including JEDEC JS709B, REACH, RoHS, and automotive AEC-Q200.

Ideal for industrial, automotive, communications, and consumer electronics applications that demand compact, reliable power inductors. Explore more Surface Mount Inductors and Wurth Elektronik products on EnvMart to find the best components for your projects and manufacturing needs.
