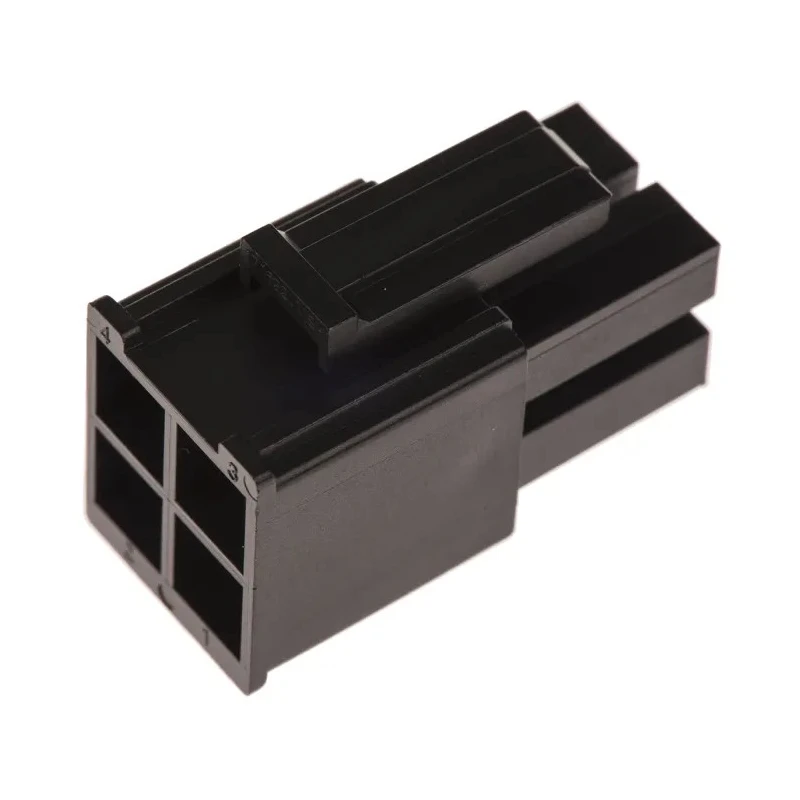

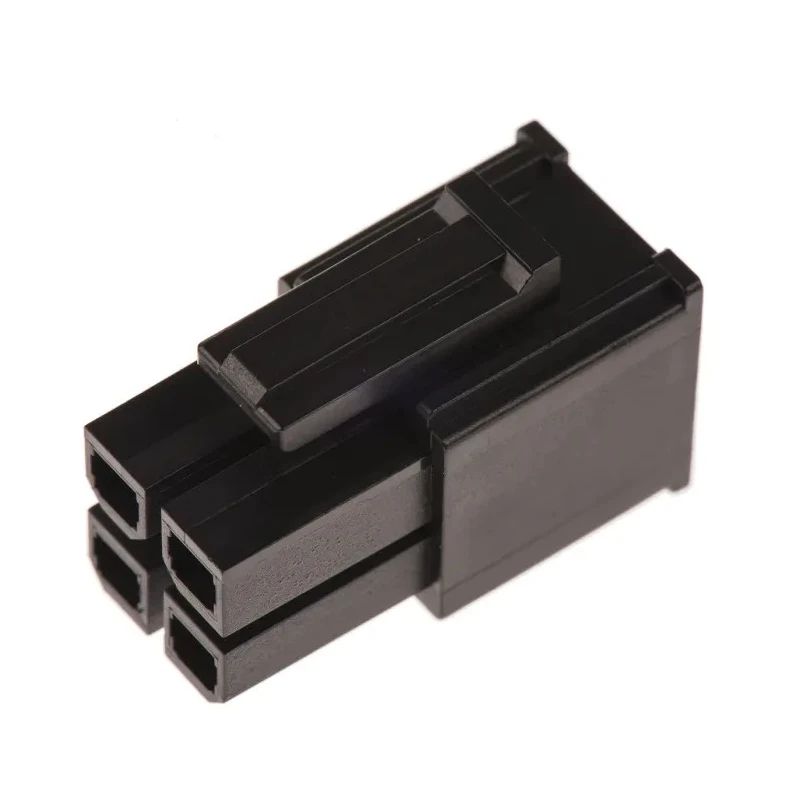

Molex Mega-Fit Male Connector Housing 4 Way 2 Row Straight 5.7 mm Pitch 171692-0104

Molex 171692-0104 Mega-Fit Male Connector Housing is engineered for high current density applications requiring compact and reliable connections. This 4-way, 2-row straight connector housing has a tight pitch of 5.7 mm that supports currents up to 23 amps per circuit, making it ideal for demanding electronic systems.

The housing is made from durable polybutylene terephthalate (PBT) material that resists chemical exposure and heat damage, ensuring long-lasting performance. Safety is enhanced by fully isolated terminals that protect against electric shocks during handling and mating of connectors. Additionally, the positive locking feature provides an audible click, assuring secure connection to the header.

With a operating temperature range from -40°C to +120°C, this connector housing meets the requirements of harsh environments commonly encountered in industrial machinery, automotive electronics, marine equipment, and aerospace applications. Its lightweight construction, weighing only 1.91 grams, minimizes load on printed circuit boards (PCB).

The Molex Mega-Fit series is versatile and compatible with wire-to-wire, wire-to-board, and power connectors, providing flexible integration options. Its compact length of 12.05 mm and width of 14.26 mm make it well suited for dense PCB layouts.

Reliable PCB-to-PCB or PCB-to-cable connection housing. Positive locking with audible confirmation on secure mating. Robust PBT housing resistant to heat and chemicals. High current capacity of 23 A per circuit. Wide temperature range (-40°C to +120°C) for extreme environments.

Fully isolated terminals for electrical safety. Ultra-lightweight design to reduce board stress. Compatible with various connector types (wire-to-wire, wire-to-board, power). Dimensions: 12.05 mm length, 14.26 mm width.

This connector housing is essential for applications in automation control panels, marine-based equipment, automotive systems, aerospace technology, and industrial process automation. Molex products such as this Mega-Fit series housing support designers in creating compact, reliable, high-performance connectors for diverse electrical and electronic applications.
