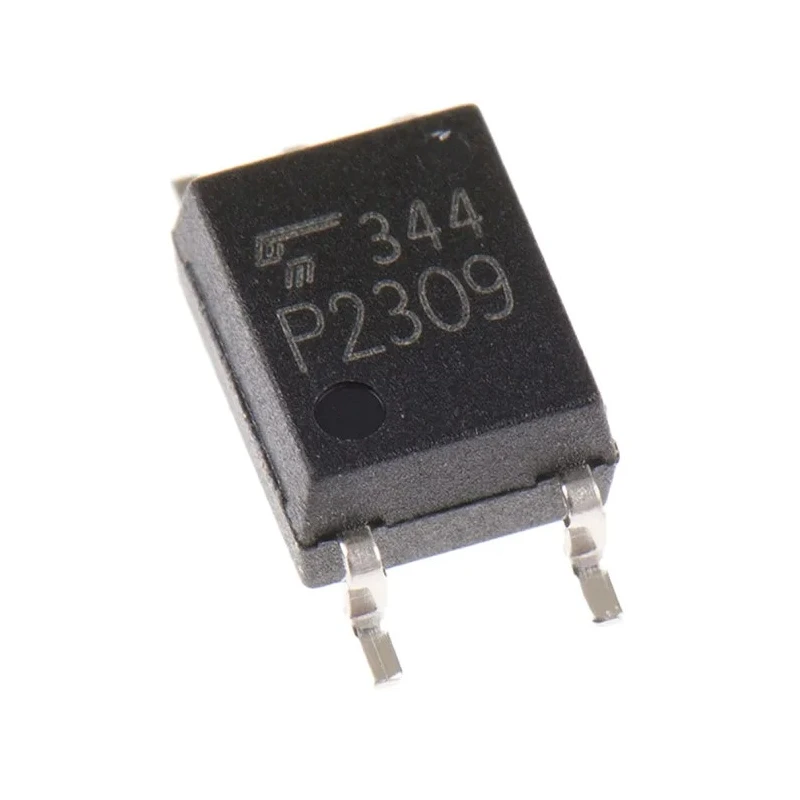

Toshiba AC Input Optocoupler Surface Mount 5-Pin SOIC TLP2309
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TLP2309 |
| Mount Type | Surface |
| Series | TLP2309 |
| Maximum Operating Temperature | 110°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN60747-5-2, UL1577, CSA Component Acceptance Service No.5A |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 5 |
| Input Current Type | AC |
| Maximum Current Transfer Ratio | 15% |
Key Features
- Features AC input current type suitable for inverter logic output.
- Has a maximum forward voltage of 1.7 volts.
- Equipped with a single channel and 5 pins in a SOIC package.
- Supports maximum input current of 20 milliamps for reliable operations.
- Offers isolation voltage rating up to 3750 Vrms for safety.
- Operating temperature range from -40°C to 110°C.
- Conforms to EN60747-5-2, UL1577, and CSA Component Acceptance Service No.5A standards.
- Ideal for industrial and electronics applications including power and signal isolation.
Product Description
Toshiba TLP2309 AC Input Optocoupler is a high-quality electronic component designed for surface mount applications. It features a 5-pin SOIC package and supports AC input current with a maximum forward voltage of 1.7V, making it suitable for robust and efficient signal isolation in various industrial and electronic circuits.
This optocoupler contains one channel and provides an isolation voltage of 3750 Vrms to protect sensitive components from voltage spikes and noise. Its maximum input current rating is 20mA, ensuring reliable performance within electronic control systems.
The device operates efficiently over a wide temperature range from -40°C to 110°C, making it versatile for use in harsh industrial environments. It complies with international safety and performance standards including EN60747-5-2, UL1577, and CSA Component Acceptance Service No.5A, ensuring reliable and certified operation.
Equipped with inverter logic output and open collector logic output, the TLP2309 model allows flexible use in digital switching and isolation applications. It is optimized for use in power electronics, automation, HVAC systems, signal processing, and measurement equipment.
AC input current type suitable for inverter logic output. Max forward voltage: 1.7V for stable input performance. Single channel configuration with 5 pins in SOIC packaging. Maximum input current rating of 20mA. High isolation voltage (3750 Vrms) ensures electrical safety.
Wide operating temperature range (-40°C to 110°C). Meets key industrial standards: EN60747-5-2, UL1577, CSA No.5A. Open collector logic output included. Designed for industrial electronics and power management applications.
Not certified for automotive applications.
This Toshiba optocoupler is suitable for industrial, automation, power electronics, and HVAC applications requiring galvanic isolation and noise reduction. Its robust specifications ensure long-term reliability in complex electronic systems.
Explore more Toshiba electronics components and Optocouplers on EnvMart for your industrial and manufacturing needs.
