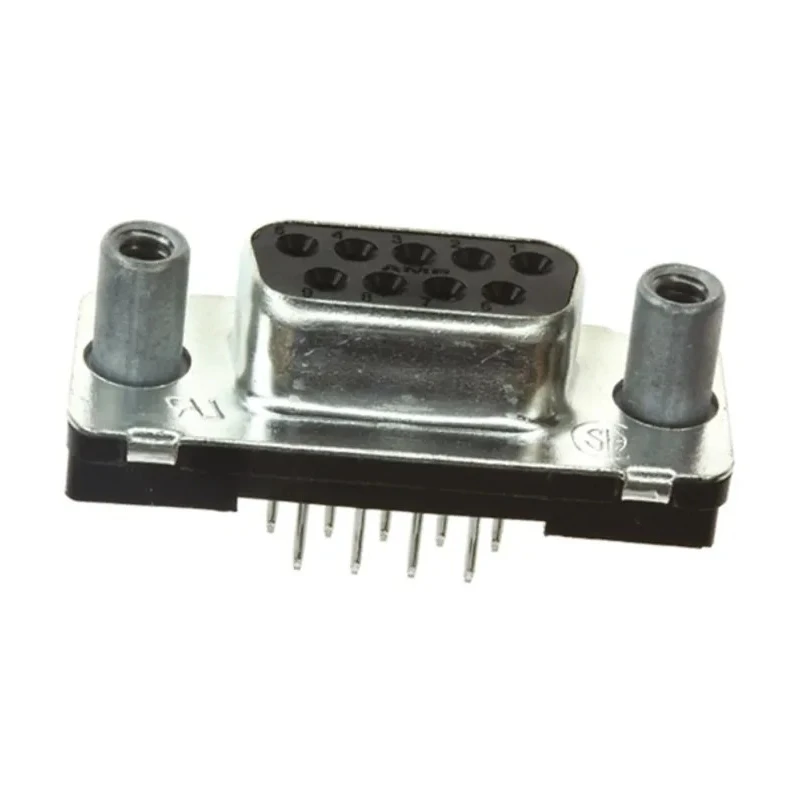

TE Connectivity AMPLIMITE HD-20 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Female 1-5747150-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 1 |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- The connector features a DS-1 shell size and is part of the AMPLIMITE HD-20 series.
- It supports a maximum current of 6 amps and operates between -55°C to 105°C temperatures.
- Housing material is durable thermoplastic with tin over nickel plating on phosphor bronze contacts.
- Termination type is solder with 4 to 40 UNC mounting hardware included.
- This connector is suitable for electronic and electrical applications requiring reliable signal connections.
Product Description
TE Connectivity 1-5747150-6 AMPLIMITE HD-20 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector is designed for PCB mounting with a robust thermoplastic housing and tin over nickel plated phosphor bronze contacts ensuring excellent conductivity and corrosion resistance.
This female connector features a DS-1 metal shell size and is mounted via through holes using standard 4 to 40 UNC hardware, providing secure attachment and durability in electronic assemblies.
The connector operates reliably within a temperature range from -55°C to 105°C and can carry currents up to 6 amps making it ideal for power and signal applications in industrial, laboratory, manufacturing, and telecommunications equipment.
Part of the AMPLIMITE HD-20 series, it uses a 2.74 mm pitch and size 20 contacts with solder termination for durable connections.
The front metal shell is tin plated steel, and the sockets are made of phosphor bronze with tin over nickel plating, ensuring longevity and consistent performance in demanding environments.
The connector supports 9 contacts for multiple signal paths. Thermoplastic housing rated 94V-0 provides excellent electrical insulation and flame resistance. Standard mounting hardware (4 to 40 UNC) ensures compatibility with common PCB designs.
Suitable for applications in electronics manufacturing, test equipment, and communication interfaces. Designed for easy integration into various connector systems requiring D-subminiature connections.
Experience reliable electrical connectivity with TE Connectivity's AMPLIMITE HD-20 1-5747150-6 connector, engineered for quality and durability in rigorous industrial and commercial environments. Browse our full range of high-performance connectors at EnvMart to find the perfect match for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current of 6 amps.
It operates reliably between -55°C to 105°C.
This connector is designed for through hole mounting.
The housing is made of thermoplastic, while the contacts are phosphor bronze with tin over nickel plating.
This model features 9 contacts.
The contact pitch size is 2.74 mm.
It uses solder termination for connections.
The connector has a DS-1 shell size.
Standard 4 to 40 UNC mounting hardware is included for installation.
It is suitable for electronic and electrical applications requiring reliable signal connections, including industrial and telecommunications equipment.
The connector features a female contact gender.
The country of origin for this connector is India.
