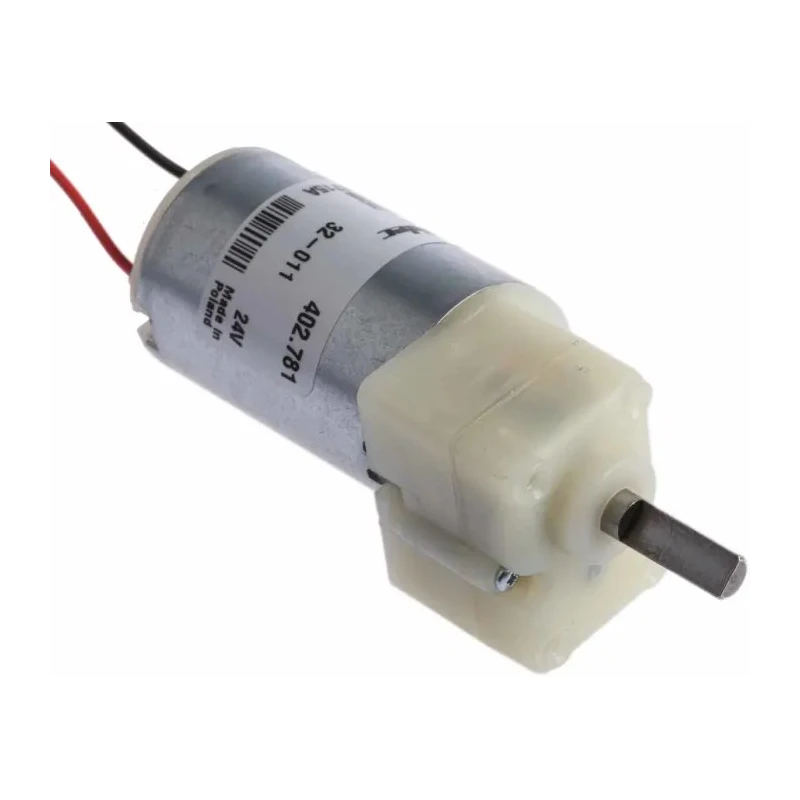

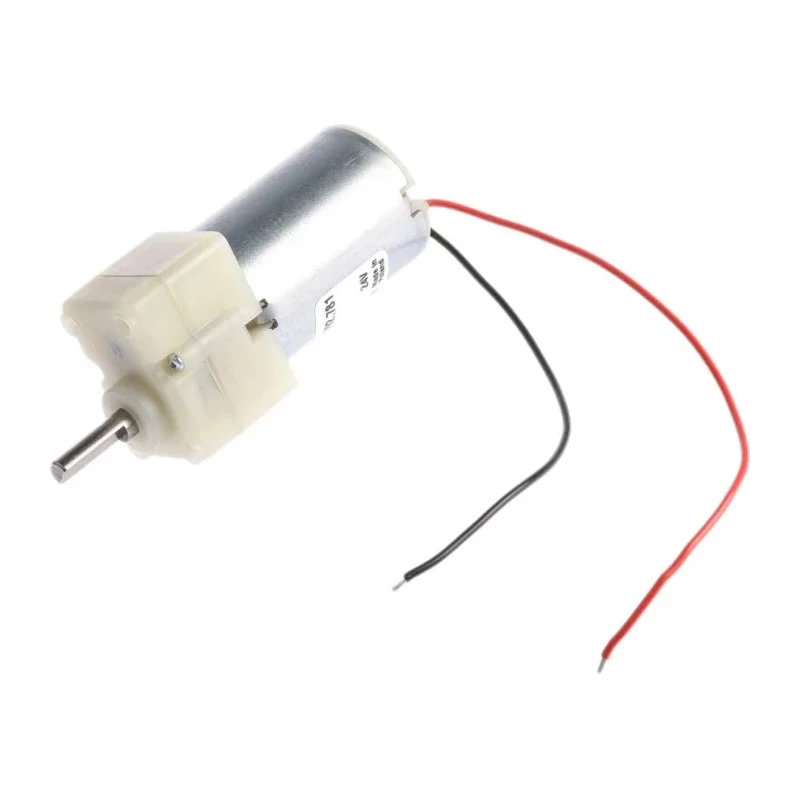

Crouzet Advanced Motor Brushed Geared DC Geared Motor, 2.56 W, 24V dc, 50 Ncm Torque, 55 rpm, 6 mm Shaft Diameter 402781 GMAG

Free Delivery in India | Lowest Global Shipping Charges

Crouzet Advanced Motor Brushed Geared DC Geared Motor, 2.56 W, 24V dc, 50 Ncm Torque, 55 rpm, 6 mm Shaft Diameter 402781 GMAG

Name: Crouzet Advanced Motor Brushed Geared DC Geared Motor, 2.56 W, 24V dc, 50 Ncm Torque, 55 rpm, 6 mm Shaft Diameter 402781 GMAG
Brand: CROUZET
SKU: 384727
Price: 337.41 USD
Availability: InStock



Category DC Geared Motors Brand CROUZET Condition New

Specifications

Country of Origin	Germany
Brand	Crouzet
Material	Steel
Length	83.5mm
Model	402781 GMAG
Depth	33mm
Width	33mm
Mount Type	Screw
Current Rating	500mA
Series	GMAG
Power Rating	2.56W
Sub Type	Brushed Geared
Output Speed	55rpm
Shaft Diameter	6mm
Shaft Length	16.2mm
Supply Voltage	24V dc
Gear ratio	109:1
Standards/Approvals	RoHS
Maximum Output Torque	50Ncm
Gearhead Type	Spur
Core Construction	Permanent Magnet
Gear Ratio 109	1
109	1

Key Features

This motor features a brushed design combined with a spur gearbox for reliable performance.
It includes a 16.2 mm shaft length and a compact size of 83.5 x 33 x 33 mm (LxWxD).
The motor is constructed with steel material and a permanent magnet core for durability.
It is designed for screw mounting and supports bi-directional operation.
The current rating is 500 mA with protection class IP40 for safe use.
This motor complies with RoHS standards and originates from Germany.

Product Description

Nidec 402781 GMAG Brushed Geared DC Geared Motor is a precision-engineered 2.56 W motor designed for industrial and automation applications requiring reliable torque and speed control at 24V dc supply voltage.

This model incorporates a brushed motor with a spur gearhead, offering a high gear ratio of 109:1 which delivers a maximum output torque of 50 Ncm at a reduced output speed of 55 rpm. The motor shaft diameter measures 6 mm and has a length of 16.2 mm, suitable for integration into compact assemblies.

Built with steel materials and a permanent magnet core, it ensures robustness and long service life. The motor's compact dimensions of 83.5 mm length, 33 mm width, and 33 mm depth make it ideal for constrained spaces. The mounting is via screws, affording secure installation.

The current rating of 500 mA and IP40 protection class provide safe and reliable operation in industrial environments. This motor complies with RoHS standards, supporting environmental regulations. Manufactured in Germany, the GMAG series motors are geared DC motors suited for bi-directional applications where controlled mechanical output is critical.

This motor features a brushed design combined with a spur gearbox for reliable performance. The gear ratio is 109:1, enabling higher torque with reduced speed. It includes a 16.2 mm shaft length and a compact size of 83.5 x 33 x 33 mm (LxWxD).

The motor is constructed with steel material and a permanent magnet core for durability. It is designed for screw mounting and supports bi-directional operation. The current rating is 500 mA with protection class IP40 for safe use.

This motor complies with RoHS standards and originates from Germany.

This motor is ideal for industrial automation, robotics, HVAC controls, conveyor drives, and other applications requiring precise mechanical power transmission. Explore the full range of Nidec motors and motors at EnvMart for commercial and manufacturing solutions.
