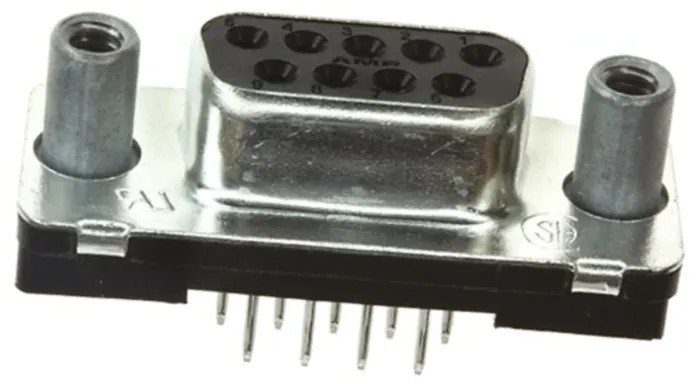

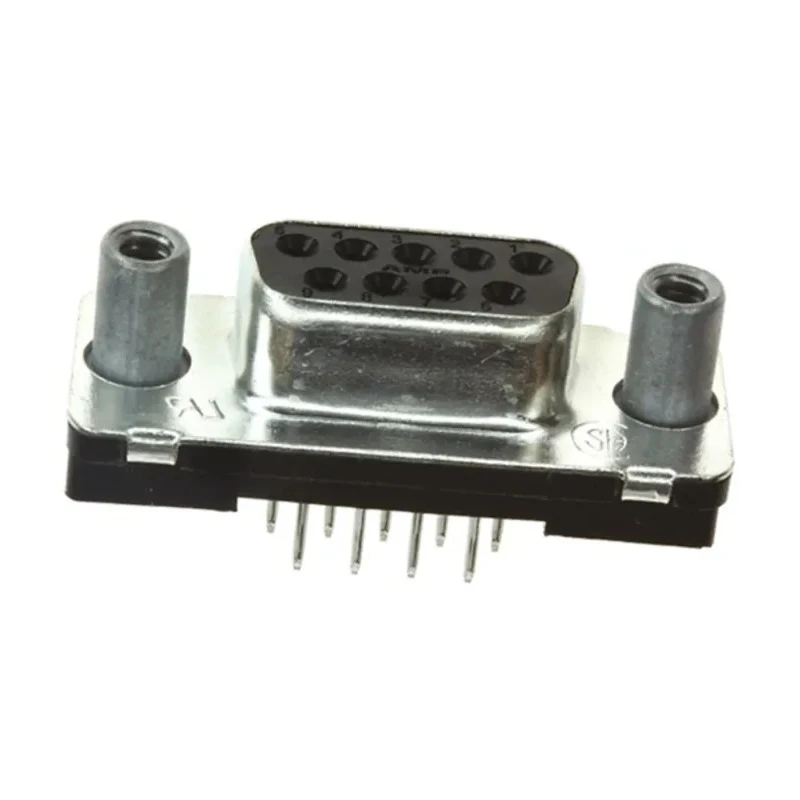

TE Connectivity AMPLIMITE HD-20 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Female 1-5747150-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 1 |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- This connector supports a current rating of 6A for robust electrical performance.
- Features a straight orientation suitable for through-hole mounting applications.
- Includes female connector gender with phosphor bronze contacts plated with tin over nickel.
- The housing material is thermoplastic rated to 94V-0 for flame retardance.
- Supports operating temperatures from -55°C to 105°C for broad environmental compatibility.
- Mounting hardware consists of 4 to 40 UNC thread size for secure attachment.
- Designed as part of the AMPLIMITE HD-20 series with DS-1 shell size.
- Termination type is solder for dependable electrical connection to PCBs.
Product Description
TE Connectivity 1-5747150-6 AMPLIMITE HD-20 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector is engineered for high reliability in electronic interconnections. This D-Sub Connector features a straight orientation designed for through-hole PCB mounting applications, delivering consistent performance with a current carrying capacity of 6A.
The connector boasts phosphor bronze female contacts plated with tin over nickel to ensure excellent conductivity and resistance to corrosion. Its thermoplastic housing meets 94V-0 flammability standards, supporting operation in temperatures ranging from -55°C to 105°C, making it suitable for demanding industrial and electronic environments.
Mounting hardware with 4 to 40 UNC threading guarantees secure fastening to circuit boards. The DS-1 shell size and AMPLIMITE HD-20 series design provide compatibility with a broad range of electronic assemblies requiring a 2.74 mm pitch spacing.
This connector is ideal for usage in industrial automation, instrumentation, communications equipment, and computer interfacing where durable and precise connections are critical. This connector supports a current rating of 6A for robust electrical performance.
Features a straight orientation suitable for through-hole mounting applications. Includes female connector gender with phosphor bronze contacts plated with tin over nickel. The housing material is thermoplastic rated to 94V-0 for flame retardance.
Supports operating temperatures from -55°C to 105°C for broad environmental compatibility. Mounting hardware consists of 4 to 40 UNC thread size for secure attachment. Designed as part of the AMPLIMITE HD-20 series with DS-1 shell size.
Termination type is solder for dependable electrical connection to PCBs. Contact size is 1 per specification for precision interfacing. Explore a comprehensive range of electronic connectors at EnvMart to meet your equipment assembly and prototyping requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports a current rating of 6A, ensuring robust electrical performance.
It operates within a temperature range of -55°C to 105°C, making it suitable for a variety of environments.
The termination type for this connector is solder, providing a dependable electrical connection to PCBs.
This connector features a pitch size of 2.74 mm, which is essential for compatibility with specific electronic assemblies.
The housing is made from thermoplastic rated to 94V-0 for flame retardance, and the contacts are phosphor bronze plated with tin over nickel for enhanced conductivity.
This model is designed for through-hole mounting applications, ensuring secure attachment to circuit boards.
This connector features female contacts, which are suitable for various electronic applications.
It is designed with a DS-1 shell size, allowing compatibility with a range of electronic assemblies.
The mounting hardware consists of 4 to 40 UNC thread size, which ensures secure fastening during installation.
This connector is part of the AMPLIMITE HD-20 series, known for its high reliability in electronic interconnections.
The country of origin for this connector is India.
This model features a total of 9 contacts, facilitating multiple connections in electronic applications.
