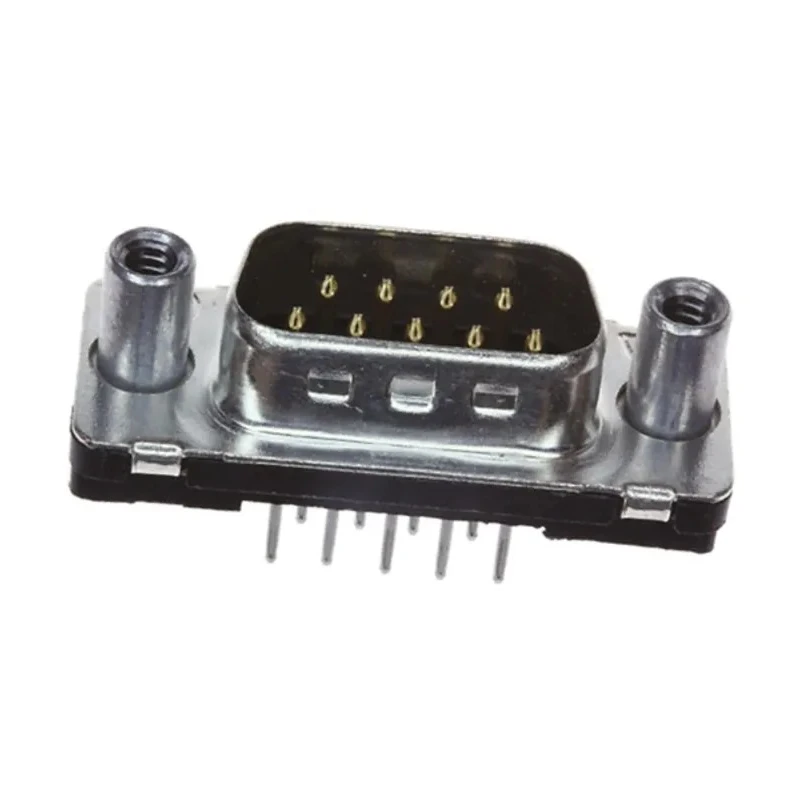

TE Connectivity AMPLIMITE HD-20 9 Way Straight 2.743 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Male 1-5747871-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.743mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Size | 1 |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- This connector features a thermoplastic housing resistant to temperatures from -55°C to 105°C.
- It has 9 brass contacts plated with tin over nickel for corrosion resistance.
- The connector uses a 4 to 40 UNC mounting hardware and is designed for solder termination.
- Its straight orientation and male contact gender suit PCB mounting applications.
- The product belongs to the AMPLIMITE HD-20 series, offering durability and reliable performance.
- Current rating is 6 amperes suitable for various electronic applications.
- The connector shell size is DS-1, compatible with standard D-Sub connector requirements.
Product Description
TE Connectivity 1-5747871-6 AMPLIMITE HD-20 9 Way Straight Through Hole D-Sub Connector features a 2.743 mm pitch and is designed for robust electrical connections in electronic and industrial applications.
This connector incorporates a thermoplastic housing with a temperature range from -55°C minimum to 105°C maximum, supporting high reliability under varying environmental conditions.
It includes 9 male brass contacts plated with tin over nickel, ensuring excellent conductivity and corrosion resistance. The termination type is solder, allowing strong PCB connections.
The mounting hardware conforms to 4 to 40 UNC standards, facilitating secure installation on printed circuit boards. Its straight orientation and DS-1 shell size adhere to common D-Sub connector requirements.
The AMPLIMITE HD-20 series is known for its rugged design, suitable for industrial, electronics manufacturing, and automation sectors. It supports a current of 6 amperes, meeting power demands for diverse circuitry.
This connector features a thermoplastic housing resistant to temperatures from -55°C to 105°C. It has 9 brass contacts plated with tin over nickel for corrosion resistance. The connector uses a 4 to 40 UNC mounting hardware and is designed for solder termination.
Its straight orientation and male contact gender suit PCB mounting applications. The product belongs to the AMPLIMITE HD-20 series, offering durability and reliable performance. Current rating is 6 amperes suitable for various electronic applications.
The connector shell size is DS-1, compatible with standard D-Sub connector requirements. This TE Connectivity D-Sub Connector is ideal for electronics, electrical equipment assembly, test and measurement setups, automation systems, and control gear applications.
Explore the wide range of connectors and electronic components on EnvMart for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector has a current rating of 6 amperes, suitable for various electronic applications.
The connector features a pitch of 2.743 mm, which is standard for its design.
It has a thermoplastic housing and 9 brass contacts plated with tin over nickel for corrosion resistance.
The operating temperature range for this connector is from -55°C to 105°C.
This model uses solder termination, allowing for strong PCB connections.
The mounting hardware conforms to 4 to 40 UNC standards, facilitating secure installation.
The connector has a straight orientation, suitable for various PCB mounting applications.
This D-Sub connector features 9 male contacts, designed for reliable electrical connections.
The connector shell size is DS-1, which is compatible with standard D-Sub connector requirements.
The connector is manufactured in India.
This model belongs to the AMPLIMITE HD-20 series, known for its rugged design.
This connector is suitable for electronics, electrical equipment assembly, test and measurement setups, and automation systems.
