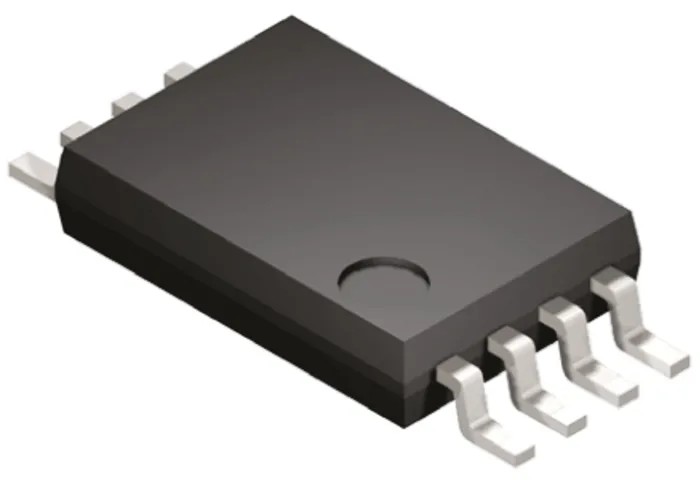

STMicroelectronics Operational Amplifier Dual Channel 3 MHz Gain Bandwidth, Surface Mount TSSOP 8-Pin 12 V TS952IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 4.5mm |
| Model | TS952IPT |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | TS952 |
| Output Current | 10mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 200 nA |
| Vos - Input Offset Voltage | 8 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 80 nA |
| Low current consumption | 0.9 mA (at 3 V) |
Key Features
- Features a gain bandwidth product of 3 MHz suitable for high-speed signal processing.
- Equipped with rail-to-rail input and output for full voltage swing capabilities.
- Operates at supply voltages ranging from 2.7 V to 12 V ensuring versatile power compatibility.
- Low current consumption of 0.9 mA at 3 V enhances energy efficiency.
- Compact surface mount TSSOP 8-pin package with dimensions 4.5 mm x 3.1 mm x 1.05 mm for PCB space saving.
- Input bias current of 200 nA and low input offset voltage of 8 mV ensure signal accuracy.
- Maximum output current of 10 mA supports various load requirements.
- Wide operating temperature range from -40°C to 125°C for demanding environments.
Product Description
STMicroelectronics TS952IPT dual channel operational amplifier is optimized for applications requiring 3 MHz gain bandwidth and rail-to-rail input/output operation. It supports supply voltages from 2.7 V to 12 V, making it suitable for various electronic systems including industrial, automotive, and consumer electronics.
This device features low distortion at 0.01%, low current consumption of 0.9 mA at 3 V, and precise input bias current of 200 nA, ensuring high accuracy signal amplification. The compact 8-pin TSSOP surface mount package (4.5 mm length, 3.1 mm width, 1.05 mm height) enables efficient PCB layout and integration into space-constrained designs.
The amplifier operates reliably within a temperature range of -40°C to 125°C and meets RoHS compliance along with the Automotive Electronics Council's AEC-Q100 standard, highlighting its suitability for automotive circuits.
Key technical features include a maximum output current of 10 mA, input offset voltage of 8 mV, and input offset current of 80 nA. These characteristics make the TS952IPT ideal for signal conditioning, filtering, and precision amplification tasks in semiconductor, industrial automation, instrumentation, and control systems.
Gain bandwidth product of 3 MHz ensuring high-speed operation. Rail-to-rail input and output voltages for full range signal processing. Wide supply voltage range from 2.7 V to 12 V for flexible power system use. Low power consumption enhances energy efficiency in portable and industrial devices.
Compact TSSOP 8-pin surface mount footprint minimizes board space. Wide temperature range supports harsh environmental conditions. Compliance with RoHS and automotive standards assures product reliability and regulation adherence.
This operational amplifier series, consisting of single, dual, and quad configurations, is designed to provide low distortion, low noise, and real rail-to-rail I/O performance suitable for a variety of applications including industrial controls, instrumentation, and automotive electronics.
Explore more within the Operational Amplifier products on EnvMart for comprehensive electronic component solutions.
