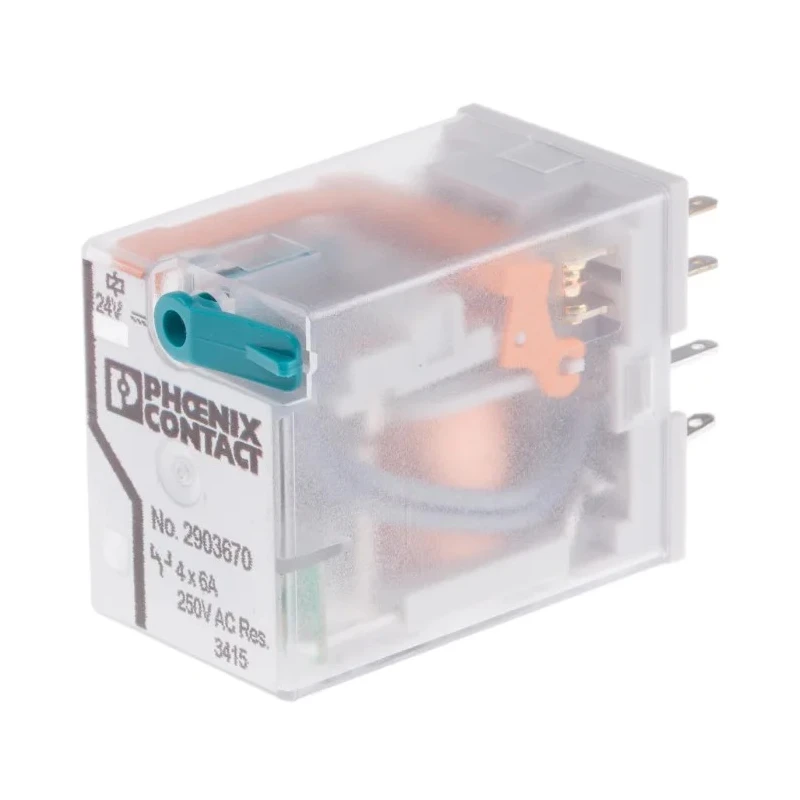

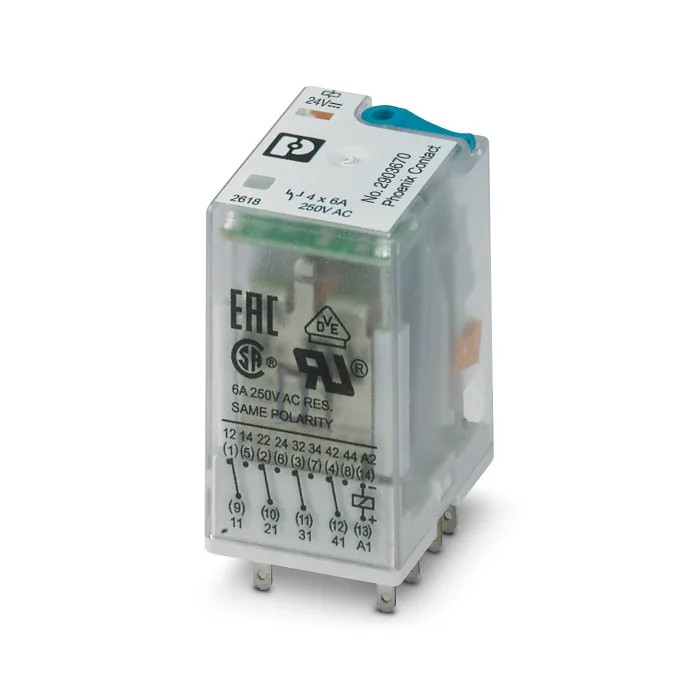

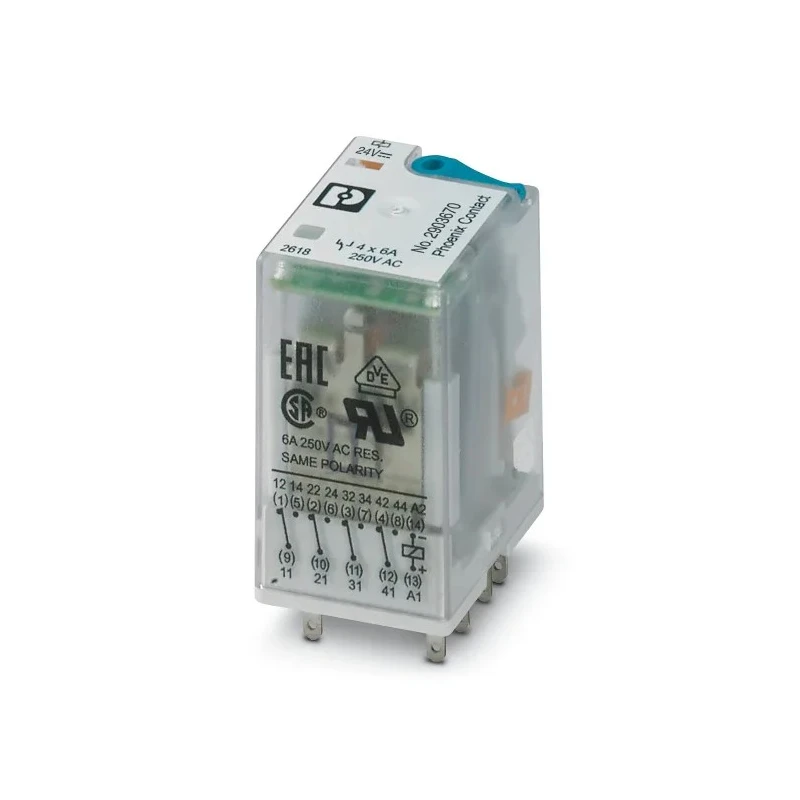

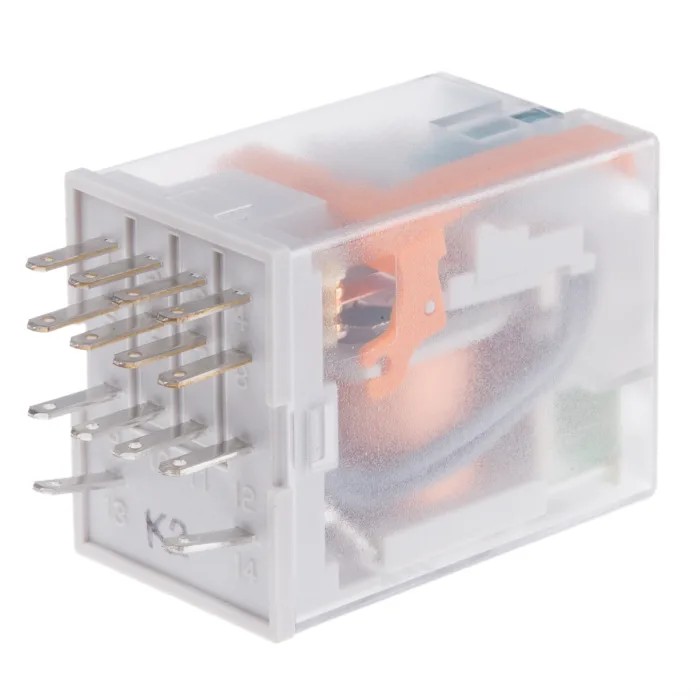

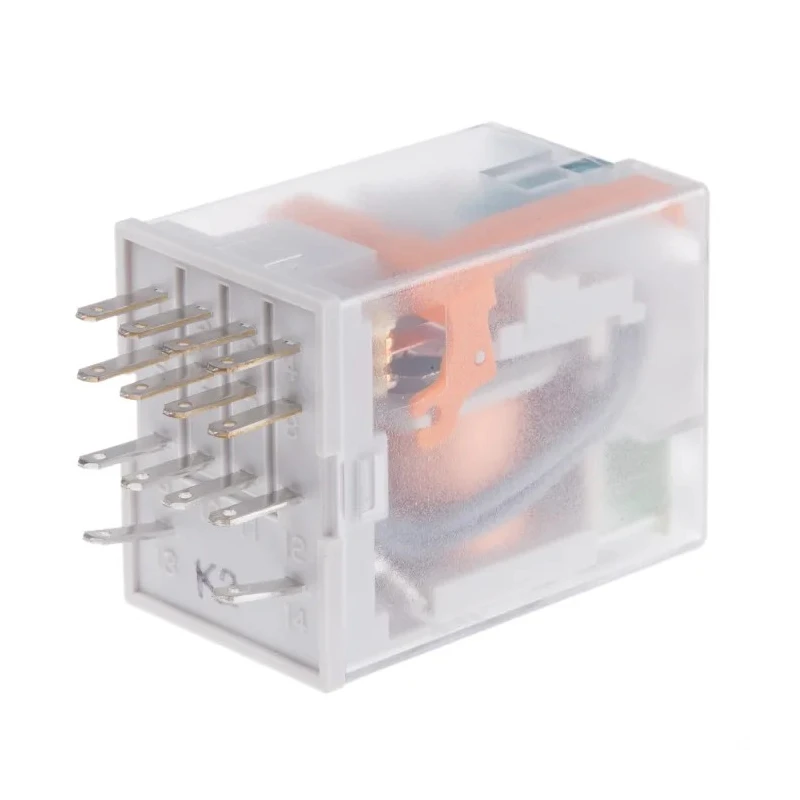

Phoenix Contact PCB Power Relay 24V DC Coil 6A Switching Current 4PDT REL-IR Series 2903670
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Phoenix Contact |
| Height | 35.6mm |
| Length | 21.2mm |
| Model | 2903670 |
| Width | 21.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | REL-IR |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Plug-In |
| Standards/Approvals | DIN, IEC |
| Coil Resistance | 640Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 36V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 77mW |
Key Features
- Relay operates with 24V DC coil voltage for efficient power control.
- Supports a switching current of 6 amps suitable for multiple applications.
- Designed for PCB mounting with plug-in terminal design for easy installation.
- Features 4PDT contact configuration allowing switching of multiple circuits.
- Durability with mechanical service life of 20 million cycles for long-term use.
- Contacts plated with silver alloy for enhanced corrosion resistance.
- Compact size with height 35.6mm, width 21.2mm, and length 21.2mm.
- Wide operating temperature range from -40°C to 70°C for varied environments.
Product Description
Phoenix Contact 2903670 PCB Power Relay features a 24V DC coil and supports a switching current of 6A with a 4PDT contact configuration. Designed specifically for printed circuit board mounting, this relay provides reliable switching performance for industrial and electronic applications.
Its plug-in terminal type allows for simplified wiring, facilitating quick and secure connections. The relay is part of the REL-IR series, known for quality and compliance with DIN and IEC standards.
The device operates efficiently with a coil resistance of 640 ohms and low coil power consumption of 77mW, making it energy efficient. It is engineered for long mechanical service life of up to 20 million cycles, offering exceptional durability and reliability in repetitive switching scenarios.
The compact form factor with dimensions of 35.6 mm height, 21.2 mm width, and 21.2 mm length allows for flexible mounting arrangements in tight PCB spaces. The contact material is silver alloy, which provides excellent resistance to corrosion and ensures consistent electrical performance.
It functions reliably within a temperature range from -40°C to 70°C, making it suitable for diverse industrial environments. Additionally, the relay includes an LED signal indicator to show operational status at a glance, along with a test button to verify functionality prior to installation.
The relay supports both AC and DC switching voltages up to 30V AC and 36V DC respectively. It is compliant with IEC 61810 regulations, ensuring safety and performance in low voltage device applications.
This Phoenix Contact power relay is ideal for factory automation, instrumentation control, and other industrial electronics requiring reliable PCB-mounted power relays. Available with plug-in terminals and designed for ease of installation and maintenance.
Explore more high-quality Power Relays and related components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It supports a maximum switching current of 6A.
This model features a 4PDT contact configuration, allowing for the switching of multiple circuits.
The relay has dimensions of 35.6mm in height, 21.2mm in width, and 21.2mm in length.
It operates within a temperature range of -40°C to 70°C.
The coil resistance is 640 ohms.
The contacts are made of silver alloy, which provides enhanced corrosion resistance.
It is designed for PCB mounting with a plug-in terminal type for easy installation.
It supports switching voltages of up to 30V AC and 36V DC.
The relay has a mechanical service life of up to 20 million cycles.
It complies with DIN and IEC standards, ensuring safety and performance in low voltage applications.
Yes, it includes an LED signal indicator to show operational status at a glance, along with a test button for functionality verification.
