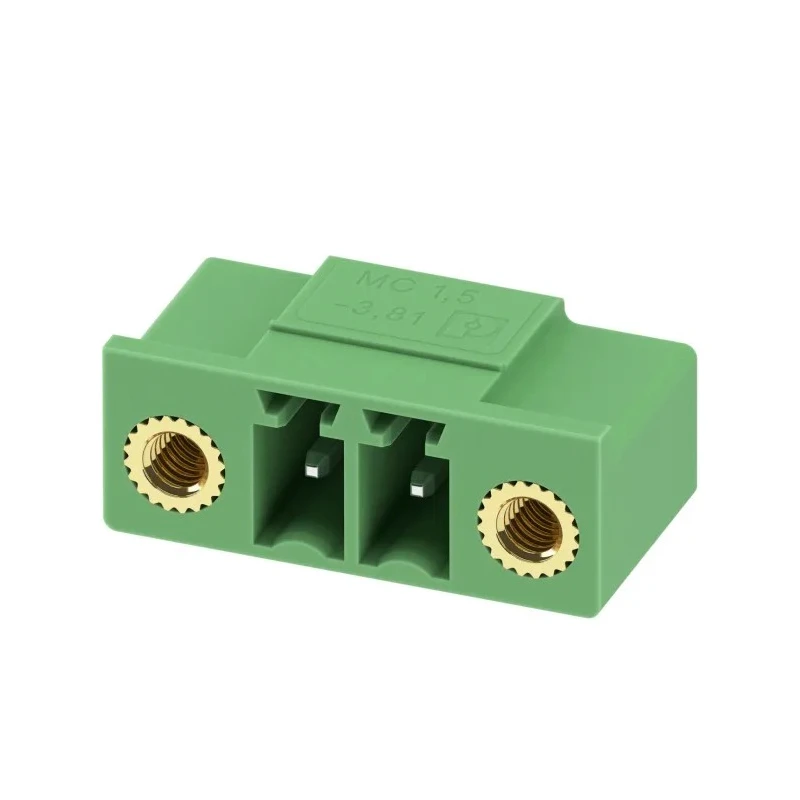

Phoenix Contact Pluggable Terminal Block 2-Contact 3.81 mm Pitch 1 Row 8A 250V Green Polyamide MC 1.5/2-GF-3.81-LR 1817806

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block 2-Contact 3.81 mm Pitch 1 Row 8A 250V Green Polyamide MC 1.5/2-GF-3.81-LR 1817806

Name: Phoenix Contact Pluggable Terminal Block 2-Contact 3.81 mm Pitch 1 Row 8A 250V Green Polyamide MC 1.5/2-GF-3.81-LR 1817806
Brand: PHOENIX CONTACT
SKU: 371785
Price: 2.71 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	Phoenix Contact
Colour	Green
Orientation	Right Angle
Current	8A
Length	18mm
Model	1817806
Depth	9.2mm
Width	7.25mm
Housing Material	Polyamide
Series	MC 1.5/2-GF-3.81-LR
Number of Rows	1
Pitch	3.81mm
Standards/Approvals	EU RoHS, EU REACH SVHC, cULus, CSA, CHINA RoHS
Number of Contacts	2
Connector Gender	Male
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	1.5mm²
Wire Connection Method	Push-in Lock

Key Features

Constructed with green polyamide housing for excellent durability.
Supports a nominal current rating of 8A at 250V operation voltage.
Features push-in lock wire connection method for secure and easy wiring.
Right angle orientation and 3.81 mm pitch ensure compatibility with standard PCB layouts.
Compact size with dimensions 18 mm length, 9.2 mm depth, and 7.25 mm width.
Suitable for through-hole mounting with wave soldering on printed circuit boards.
Operates reliably in temperatures from -40°C to 100°C.
Certified to multiple international standards including EU RoHS, EU REACH SVHC, cULus, CSA, and China RoHS.

Product Description

Phoenix Contact 1817806 pluggable terminal block is a premium 2-contact connector designed for electronic components, power, and connector applications requiring reliable PCB connections. Featuring a pitch of 3.81 mm and a single row configuration, this terminal block supports a nominal current of 8A and operates up to 250V, making it suitable for various industrial, laboratory, manufacturing, and HVAC applications.

The housing is made of robust green polyamide (PBT), providing high mechanical strength and chemical resistance, capable of operating in extreme temperature ranges from -40°C to 100°C. The push-in lock wire connection technology ensures reliable and secure electrical connections with a minimum wire size of 0.14 mm² and a maximum wire size of 1.5 mm². This right-angle terminal block is ideal for printed circuit board (PCB) designs using through-hole mounting and wave soldering techniques.

Its compact dimensions (18 mm length, 9.2 mm depth, 7.25 mm width) allow efficient space utilization on PCBs. It is certified to comply with major standards, including EU RoHS, EU REACH SVHC, cULus, CSA, and China RoHS, assuring environmental compliance and safety.

This connector is widely used in industrial automation, electronic equipment manufacturing, power distribution assemblies, and control gear, making it an essential component for quality and dependable electrical terminal connections.

Constructed with green polyamide housing for excellent durability. Supports a nominal current rating of 8A at 250V operation voltage. Features push-in lock wire connection method for secure and easy wiring. Right angle orientation and 3.81 mm pitch ensure compatibility with standard PCB layouts.

Compact size with dimensions 18 mm length, 9.2 mm depth, and 7.25 mm width. Suitable for through-hole mounting with wave soldering on printed circuit boards. Operates reliably in temperatures from -40°C to 100°C. Certified to multiple international standards including EU RoHS, EU REACH SVHC, cULus, CSA, and China RoHS.

Made in Germany ensuring high-quality manufacturing standards. Explore more Pluggable Terminal Blocks and connectors at EnvMart for your industrial, laboratory, and electrical engineering needs.
