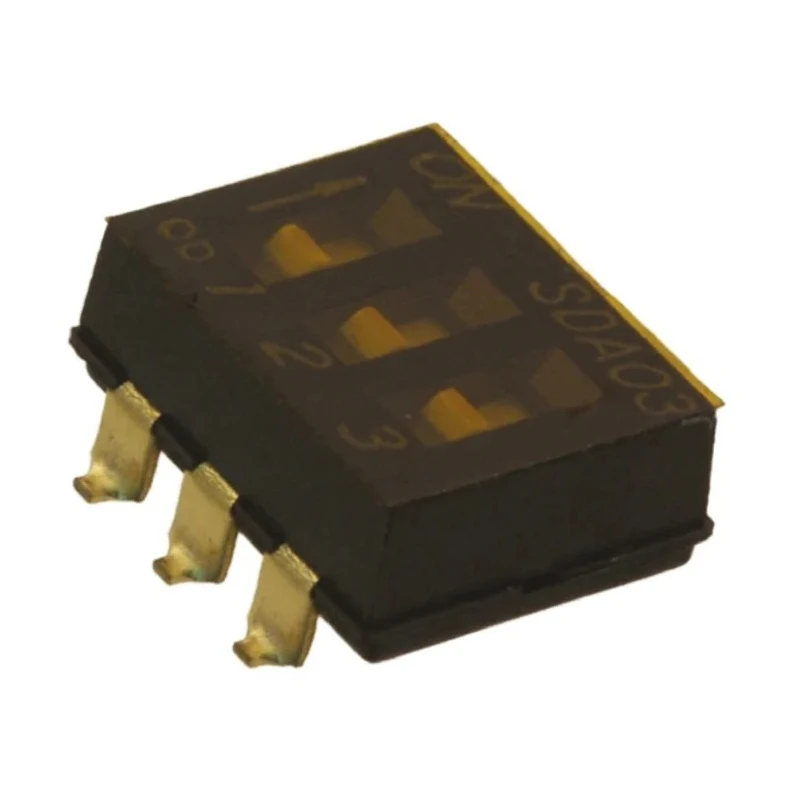

C & K Rotary Coded DIP Switch Flush Actuator Surface Mount SDA03H0SBR
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Model | SDA03H0SBR |
| Mount Type | Surface Mount |
| Actuator Type | Flush |
| Switch Contact Rating | 100 mA @ 5 V dc / 25 mA @ 24 V dc |
| Electrical Life | 1000 cycles minimum |
Key Features
- This rotary coded DIP switch is part of the C & K SDA Series low profile switches.
- It functions as a single pole single throw (SPST) switch with surface mount terminals.
- Flush actuator design delivers a compact and streamlined profile.
- Switch contact rating supports 100 mA at 5 V dc and 25 mA at 24 V dc.
- Has a minimum electrical life of 1000 cycles ensuring durability.
- Ideal for use in telecom, computers, test equipment, security, and instrumentation applications.
- The switch is RoHS compliant and suitable for industrial and electronic equipment manufacturing.
Product Description
C & K SDA03H0SBR Rotary Coded DIP Switch is a low profile, surface mount device featuring a flush actuator designed for space-constrained electronics assemblies.
This SPST rotary coded DIP switch belongs to the C & K SDA Series, known for reliable switching performance in industrial and electronic applications including telecom, computers, test equipment, security systems, and instrumentation.
The device has a switch contact rating of 100 mA at 5 V dc and 25 mA at 24 V dc, with an electrical life expectancy of at least 1000 cycles, ensuring dependable switching operations over extended use.
The surface mount package allows easy integration into printed circuit board assemblies, optimizing production efficiency. Its flush actuator design minimizes profile height, making it ideal for applications where panel aesthetics and compactness are critical.
This rotary coded DIP switch is part of a versatile family providing SPST operation with surface mount or through-hole terminal options. The SDA03H0SBR specifically offers surface mount with flush actuator type for specialized design requirements.
Applications span industrial automation, communication equipment, test and measurement, security devices, and other precision instrumentation. RoHS compliant manufacturing ensures environmental safety and compliance with international standards.
The compact size and reliable rating make it suitable for mounting in dense circuit board layouts and automated production lines.
This product is a top-choice component for specialists designing electronic devices requiring precise, coded rotary selection switches with a low profile footprint in Indian and global markets.
EnvMart offers this C & K Rotary Coded DIP Switch to support the needs of electronics and electrical engineers in a variety of industrial sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch contact rating for this model is 100 mA at 5 V dc and 25 mA at 24 V dc.
It has a minimum electrical life expectancy of 1000 cycles.
This model supports surface mount installation.
It is suitable for applications in telecom, computers, test equipment, security, and instrumentation.
The actuator type is flush, designed for a compact and streamlined profile.
The country of origin for this product is India.
The flush actuator design minimizes profile height, making it ideal for applications where space and aesthetics are critical.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
It belongs to the C & K SDA Series of low profile switches.
The SPST (Single Pole Single Throw) operation allows for straightforward on/off switching, making it versatile for various applications.
Yes, the surface mount package allows for easy integration into printed circuit board assemblies, optimizing production efficiency.
Its compact size and reliable rating make it suitable for mounting in dense circuit board layouts and automated production lines.
