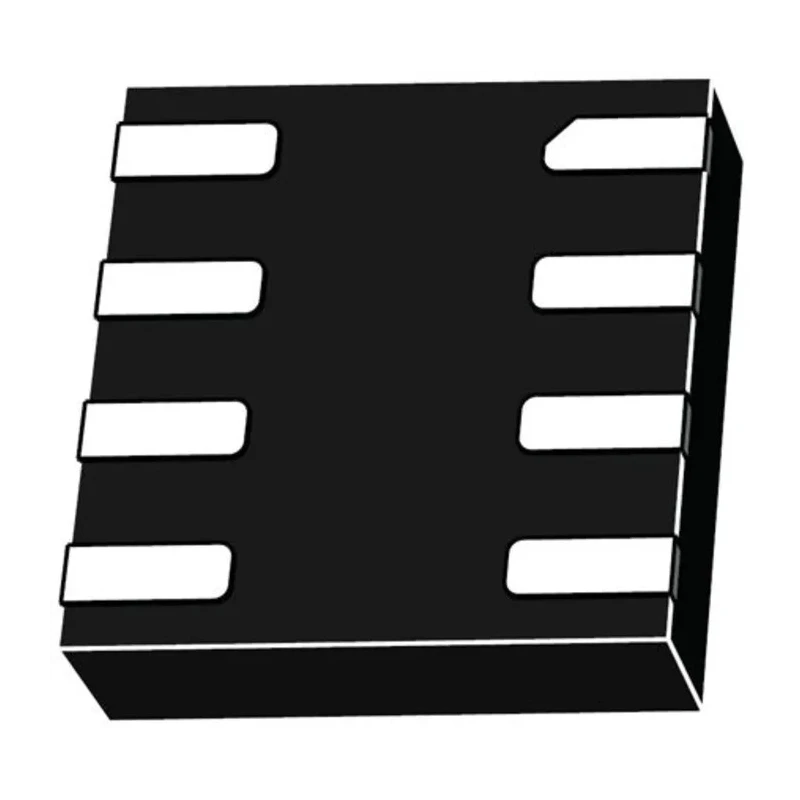

STMicroelectronics Operational Amplifier, Dual Channel, 8 kHz Gain Bandwidth, 8-Pin DFN Surface Mount, 1.5-5.5V TSU102IQ2T

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier, Dual Channel, 8 kHz Gain Bandwidth, 8-Pin DFN Surface Mount, 1.5-5.5V TSU102IQ2T

Name: STMicroelectronics Operational Amplifier, Dual Channel, 8 kHz Gain Bandwidth, 8-Pin DFN Surface Mount, 1.5-5.5V TSU102IQ2T
Brand: STMicroelectronics
SKU: 371613
Price: 2.79 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	0.75mm
Length	2mm
Model	TSU102IQ2T
Width	2mm
Mount Type	Surface
Series	TSU102
Output Current	4mA
Maximum Operating Temperature	85°C
Package Type	DFN
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.5V
GBP - Gain Bandwidth Product	8kHz
Input Bias Current	30 pA
Vos - Input Offset Voltage	3.4 mV
Slew Rate	3V/ms
Gain bandwidth product	8 kHz typical

Key Features

This device features a gain bandwidth product of 8 kHz typical for precise amplification.
It supports a supply voltage range from 1.5 V minimum to 5.5 V maximum.
The package type is DFN with 8 pins enabling efficient surface mounting on PCBs.
Its operating temperature range spans from -40°C to 85°C, suitable for a variety of industrial environments.
Low input bias current of 30 pA and input offset voltage of 3.4 mV ensure high accuracy signal processing.
A slew rate of 3 V/μs allows moderate signal speed response.
Output current capability is 4 mA ensuring interface with various loads.
The compact dimensions of 2 mm length, 2 mm width, and 0.75 mm height support space-constrained applications.

Product Description

STMicroelectronics TSU102IQ2T is a high precision dual operational amplifier designed for surface mount applications with an 8-pin DFN package. It offers a typical gain bandwidth product of 8 kHz and supports low voltage operation from 1.5 V to 5.5 V, making it ideal for portable and battery-powered devices.

This device features low input bias current of 30 pA and input offset voltage of 3.4 mV, enabling accurate and stable signal conditioning in sensor interfaces and analog signal processing.

The TSU102IQ2T supports a temperature range from -40°C to 85°C, suitable for automotive, industrial, and consumer electronics applications where robust performance is necessary under varying temperature conditions.

The 8-pin DFN package, measuring 2 mm x 2 mm x 0.75 mm, provides a compact footprint for high-density PCB layouts. A slew rate of 3 V/μs and output current of 4 mA accommodate moderate speed signals and varied load demands.

Being RoHS compliant ensures this operational amplifier meets international environmental safety standards. This amplifier is used extensively in industrial control systems, consumer electronics, and instrumentation applications requiring accurate analog signal amplification.

Its dual channel configuration allows for space and energy-efficient designs. Typical uses include sensor signal conditioning, active filters, and buffer amplifiers. The combination of low power operation and moderate gain bandwidth suits battery-powered equipment.

The compact DFN package facilitates modern PCB designs with space constraints.
