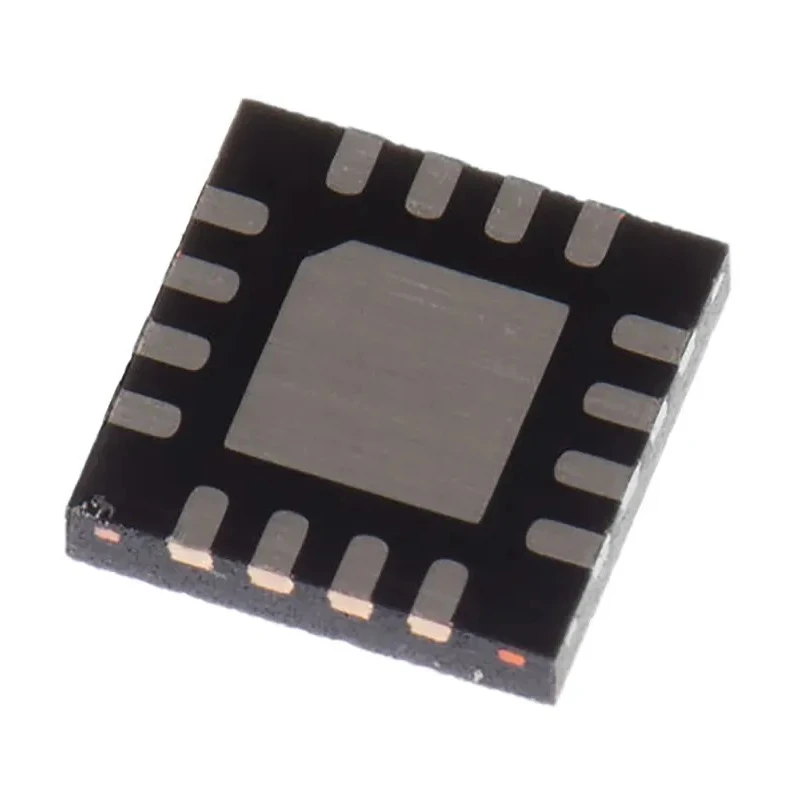

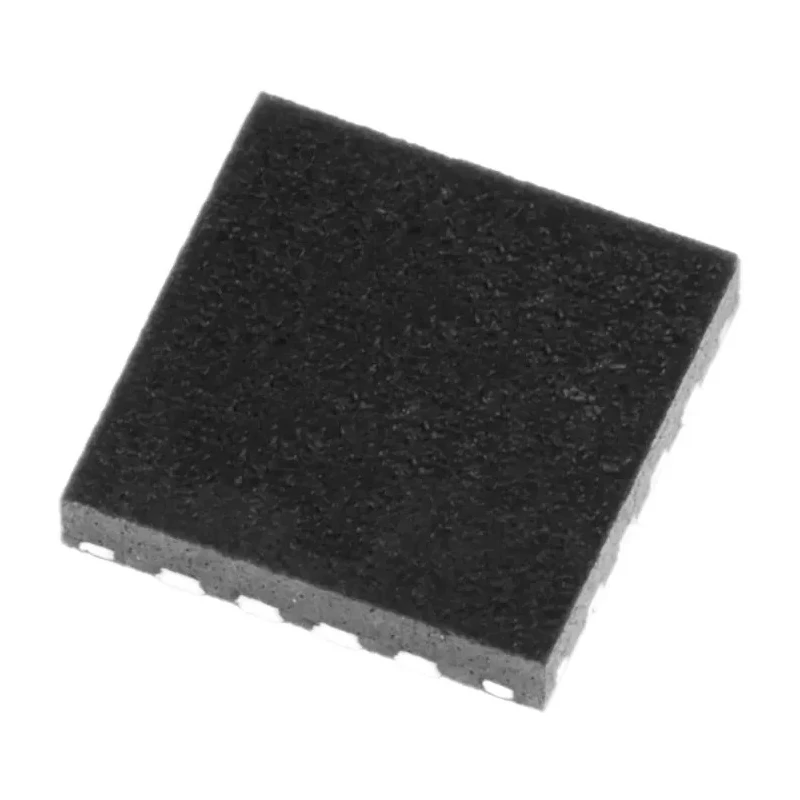

STMicroelectronics Operational Amplifier 8 kHz Gain Bandwidth Product, 16-Pin QFN Package, 1.5V to 5.5V Supply TSU104IQ4T

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier 8 kHz Gain Bandwidth Product, 16-Pin QFN Package, 1.5V to 5.5V Supply TSU104IQ4T

Name: STMicroelectronics Operational Amplifier 8 kHz Gain Bandwidth Product, 16-Pin QFN Package, 1.5V to 5.5V Supply TSU104IQ4T
Brand: STMicroelectronics
SKU: 371611
Price: 3.13 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	0.88mm
Length	3mm
Model	TSU104IQ4T
Width	3mm
Mount Type	Surface
Series	TSU104
Output Current	4mA
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Number Of Channels	4
Standards/Approvals	RoHS
Pin Count	16
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.5V
GBP - Gain Bandwidth Product	8kHz
Input Bias Current	30 pA
Vos - Input Offset Voltage	3.4 mV
Slew Rate	3V/ms
Gain bandwidth product	8 kHz typical

Key Features

Features 4 independent channels integrated in a single IC.
Operates over a temperature range of -40°C to 85°C for versatile industrial use.
Input offset voltage typically 3.4 mV with low input bias current of 30 pA.
Slew rate of 3 V/µs ensures good response speed for analog applications.
Output current capability up to 4 mA suitable for a variety of signal conditioning tasks.
Package dimensions are 3 mm by 3 mm by 0.88 mm height for compact PCB layouts.
Surface mount QFN package type supports high density assembly.
Compliant with RoHS standards ensuring environmental safety.

Product Description

STMicroelectronics TSU104IQ4T is a quad-channel operational amplifier designed for applications demanding a moderate gain bandwidth product of 8 kHz. Packaged in a space-saving 16-pin QFN type, this device supports a wide supply voltage range from 1.5 V to a maximum of 5.5 V, enabling flexible integration in battery powered and industrial circuits.

This operational amplifier supports operating temperatures from -40°C to +85°C, making it suitable for automotive and harsh environment applications. The device exhibits a typical input offset voltage of 3.4 mV and a low input bias current of just 30 pA, offering stable and accurate analog signal amplification.

The TSU104IQ4T features a slew rate of 3 V/µs, allowing it to handle moderately fast signal changes, and can deliver an output current up to 4 mA. Its compact footprint of 3 mm length by 3 mm width and 0.88 mm height fits well into high-density printed circuit boards.

The QFN surface mount package type simplifies automated assembly processes, improving production efficiency. The device is fully RoHS compliant, ensuring it meets environmental and safety regulations.

4 operational amplifier channels integrated on a single chip. Gain bandwidth product of 8 kHz, ideal for low-frequency analog signal processing. Wide supply voltage range from 1.5 V to 5.5 V, supporting diverse electronics.

Robust temperature operation from -40°C to +85°C suitable for automotive applications. Low input offset voltage and minimal bias current enhance signal integrity. Surface mount QFN 16-pin package offers compact size for space-limited designs.

RoHS compliance ensures environmentally friendly production and disposal.

This Operational Amplifier IC is widely used in industrial control systems, automotive electronics, instrumentation, and communications equipment. Its multiple channels and small package size allow efficient design of sensor interfaces, filters, and signal conditioning circuits.

For more electronics components including amplifiers and semiconductors, explore the comprehensive categories at EnvMart.
