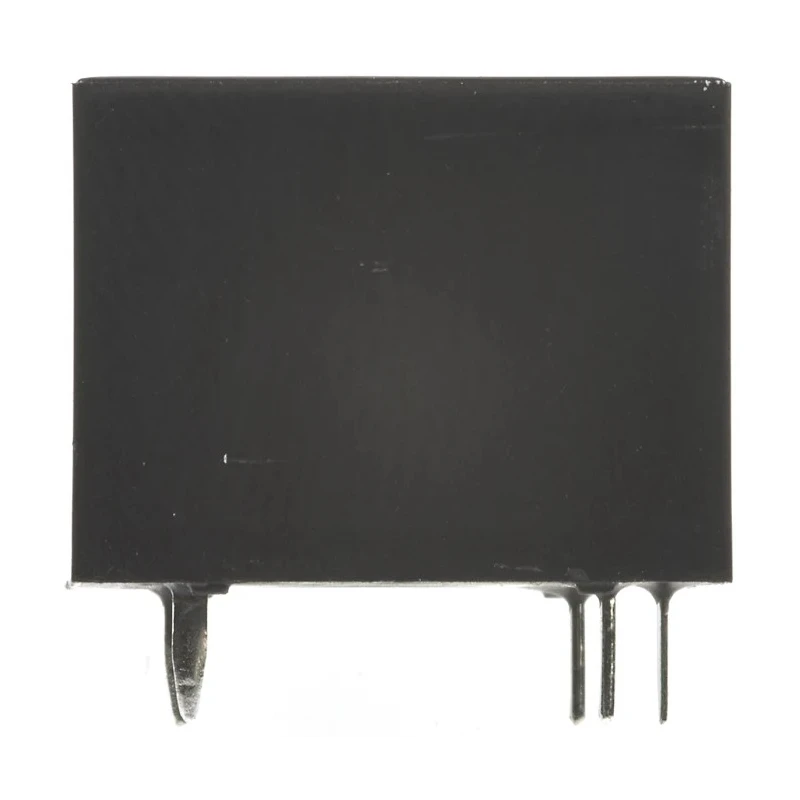

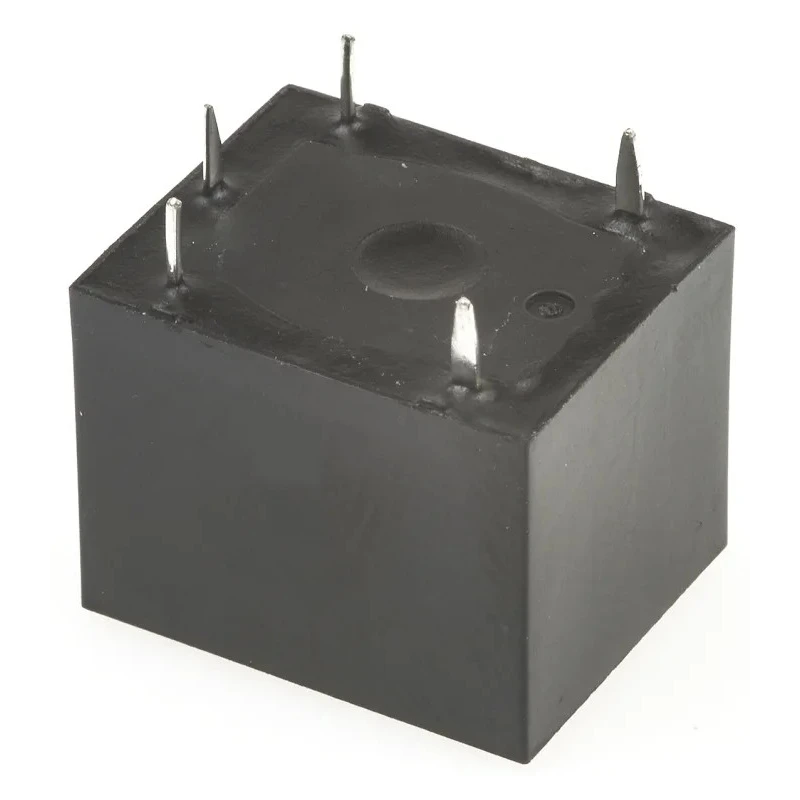

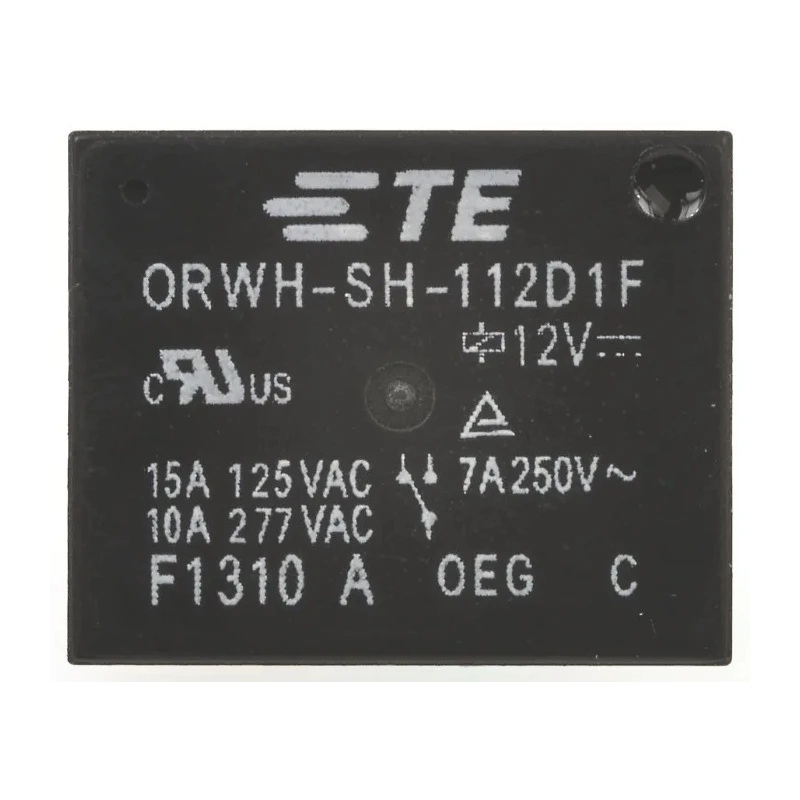

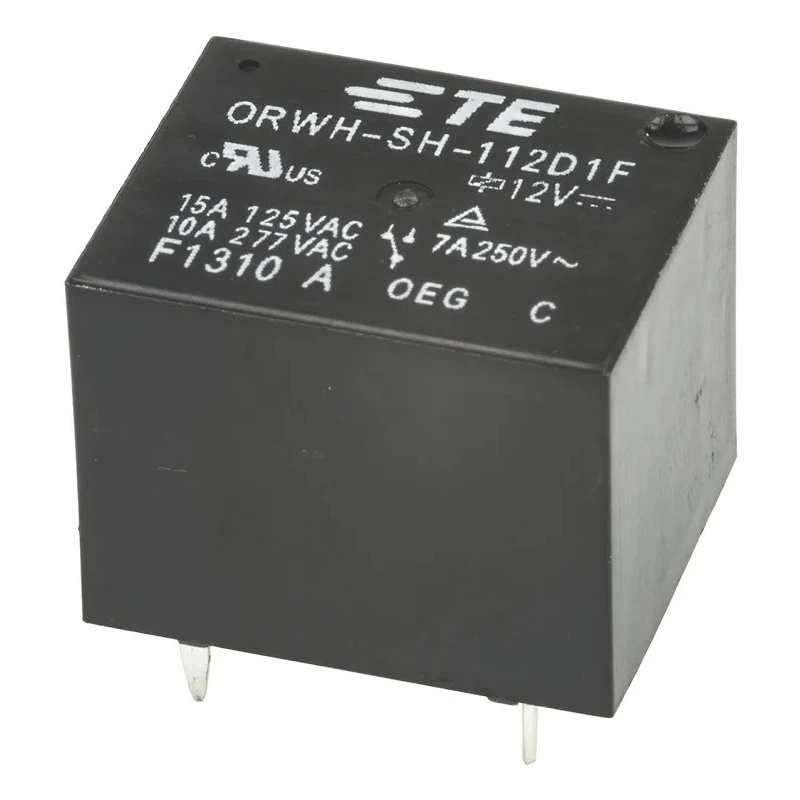

TE Connectivity PCB Power Relay 12V dc Coil, 10A Switching Current, SPDT 1-1721150-3
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15.8mm |
| Length | 19mm |
| Width | 15.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ORWH |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 400Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 277V |
| Coil Power | 360mW |
Key Features
- Designed for PCB mounting with PCB pin terminals for secure connection.
- Operating temperature range from -30°C to 70°C, suitable for various environments.
- Supports switching DC voltage up to 28V and AC voltage up to 277V.
- Coil resistance of 400Ω and coil power consumption of 360mW.
- Compact dimensions facilitating installation in constrained spaces.
- Silver alloy contact material ensures reliable electrical contact.
- RoHS compliant for environmental safety.
Product Description
TE Connectivity 1-1721150-3 PCB Power Relay is a miniature ORWH series relay designed for efficient and reliable switching in electrical and automation applications. It operates with a 12V dc coil voltage and supports a switching current of 10A with SPDT (Single Pole Double Throw) contact configuration, making it ideal for power relay requirements on PCB.
This relay is specifically engineered for PCB mount applications with PCB pin terminals, providing secure and stable mounting. It functions reliably within a wide operating temperature range from -30°C to 70°C, suitable for diverse industrial environments including heating, ventilation, and emergency lighting systems.
The relay supports switching voltages up to 28V dc in DC circuits and 277V in AC circuits. Its coil resistance is 400Ω with a coil power of 360mW, ensuring low power consumption during coil activation. The contact material is crafted from silver alloy, offering excellent conductivity and durability.

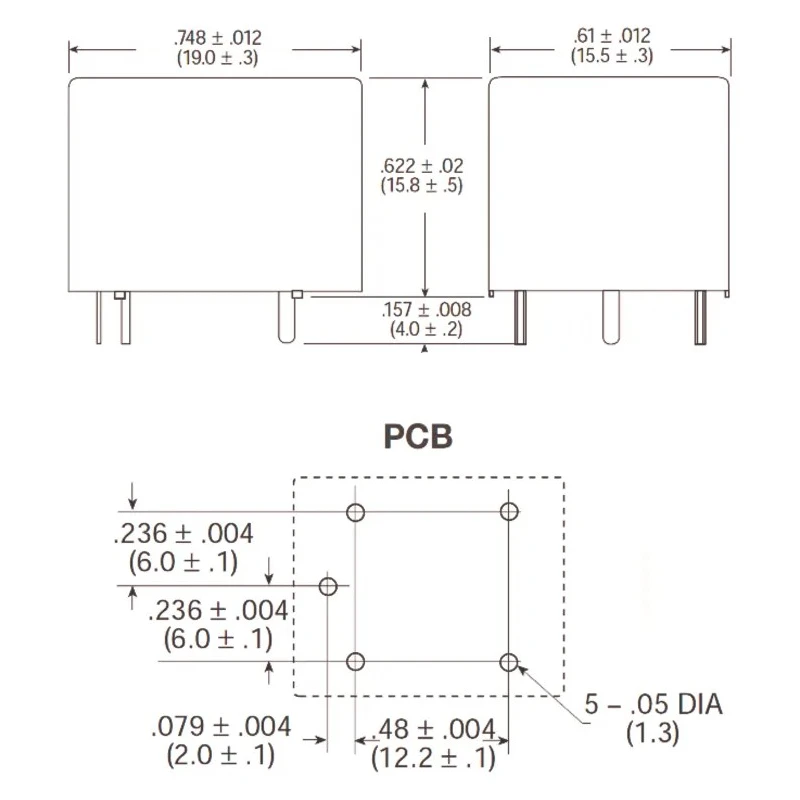

Compact in size, the relay measures 19mm in length, 15.8mm in height, and 15.5mm in width, allowing integration into limited space assemblies. Compliance with RoHS standards guarantees environmentally friendly design adhering to industry regulations.
Designed for PCB mounting with PCB pin terminals for secure connection. Operating temperature range from -30°C to 70°C, suitable for various environments. Supports switching DC voltage up to 28V and AC voltage up to 277V.
Coil resistance of 400Ω and coil power consumption of 360mW. Compact dimensions facilitating installation in constrained spaces. Silver alloy contact material ensures reliable electrical contact. RoHS compliant for environmental safety.
This PCB power relay from TE Connectivity is suitable for industrial, electrical, automation, HVAC, and manufacturing applications requiring reliable and compact relay switching solutions. Explore more Power Relay products at EnvMart to meet your technical and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 10A.
The relay measures 19mm in length, 15.8mm in height, and 15.5mm in width.
This model features a Single Pole Double Throw (SPDT) contact configuration.
It operates within a temperature range from -30°C to 70°C.
The coil resistance is 400Ω.
It supports switching DC voltage up to 28V and AC voltage up to 277V.
The coil power consumption is 360mW.
The contact material is made from silver alloy, ensuring reliable electrical contact.
Yes, it is RoHS compliant, adhering to environmental safety standards.
It is designed for PCB mounting with PCB pin terminals for secure connection.
This PCB power relay is suitable for industrial, electrical, automation, HVAC, and manufacturing applications.
