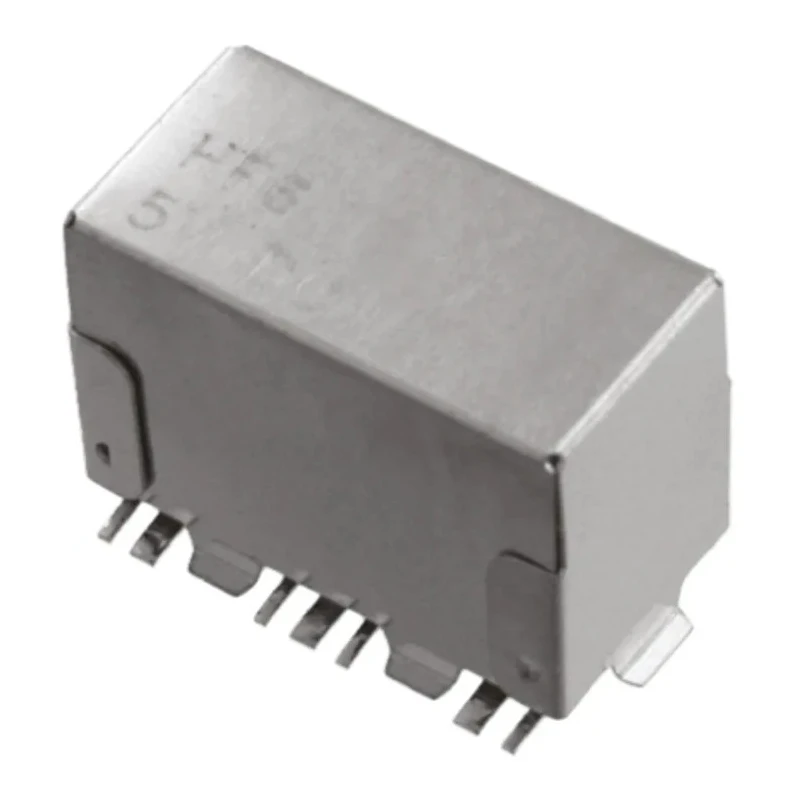

TE Connectivity Surface High Frequency Relay 12V dc Coil 2A SPDT PCB Terminal Surface Mount HF6 Series 1462052-6
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 9.6mm |
| Length | 14.9mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | HF6 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 1028Ω |
| Coil Power | 140mW |
| Contact Current | 2A |
Key Features
- Designed for high frequency systems up to 6 GHz with low VSWR of 1.45 dB.
- Features gold plated contacts and PCB terminal type suitable for surface mounting.
- Compact dimensions of 14.9mm length and 9.6mm height optimize PCB space usage.
- Operates efficiently with a coil power consumption of 140mW and coil resistance of 1028 ohms.
- Wide operating temperature range from -55°C to 85°C for diverse industrial environments.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
- High frequency HF6 series relay designed for monostable or bistable coil configurations.
- Manufactured in Portugal with strict quality and performance standards.
Product Description
TE Connectivity 1462052-6 Surface High Frequency Relay is engineered for superior performance in RF and microwave systems requiring precise switching capabilities. This relay supports 12V dc coil operation with a contact current rating of 2A and a SPDT (Single Pole Double Throw) contact configuration suitable for various signal conditioning applications in industrial, communication, and automation systems.
Its contact material is gold plated to ensure minimal contact resistance and high reliability at frequencies up to 6 GHz, making it ideal for sensitive high-frequency circuits. The relay employs a PCB terminal for surface mount configuration, facilitating compact and efficient assembly in modern electronics.
With a coil resistance of 1028 ohms and power consumption of 140mW, the relay maintains efficiency and low power usage. The device is rated for operation over a broad temperature range (-55°C to 85°C), ensuring robust performance in harsh and varying environmental conditions.
The compact size, with length 14.9mm and height 9.6mm, permits integration within densely packed electronic modules. It complies with RoHS standards, affirming commitment to reduced environmental impact and compliance with international regulatory requirements.
Typical industrial applications include telecommunications, RF testing equipment, aerospace, and medical instrumentation where precision switching and signal integrity are critical.
Designed for high frequency systems up to 6 GHz with low VSWR of 1.45 dB. Gold plated contacts ensure high conductivity and corrosion resistance. Surface mount PCB terminals for easy assembly and compact installation. Wide operating temperature range for versatility in application.
Low coil power consumption reduces overall system energy usage. Meets RoHS certification for environmental safety compliance. Manufactured in Portugal under rigorous quality standards. Explore our extensive range of high performance HF & RF Relays from TE Connectivity on EnvMart for reliable and quality components tailored to your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay is designed for high frequency systems up to 6 GHz.
It features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 1028 ohms.
The coil power consumption is 140mW.
It has a length of 14.9mm and a height of 9.6mm.
This model operates efficiently within a temperature range of -55°C to 85°C.
It uses a PCB terminal type suitable for surface mounting.
The contacts are made of gold plated material to ensure minimal contact resistance.
It complies with RoHS standards, ensuring environmentally safe manufacturing.
This relay is manufactured in Portugal.
The contact current rating is 2A.
It is suitable for applications in telecommunications, RF testing equipment, aerospace, and medical instrumentation.
