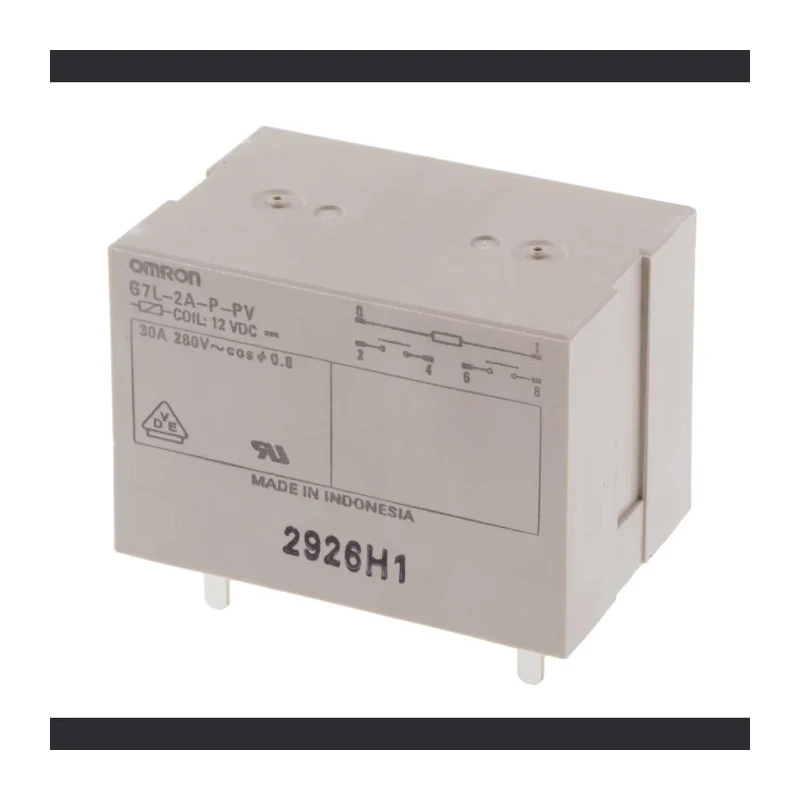

Omron PCB Power Relay 12V DC Coil 30A Switching Current DPST G7L-2A-P-PV DC12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 47mm |
| Length | 52.5mm |
| Model | G7L-2A-P-PV DC12 |
| Width | 35.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G7L |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 30A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 63Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 1.9W |
| Switching Power | 1.9W |
Key Features
- High switching current capacity of 30 amps for robust load handling.
- Dual pole single throw (DPST) contact configuration for versatile circuit control.
- PCB mount type with solder terminals for secure mounting and easy integration.
- Operates within a temperature range from -25°C to 60°C for varied environmental conditions.
- Constructed with silver alloy contacts for enhanced conductivity and durability.
- Designed with flame-resistant UL94V-0 insulation material ensuring safety and compliance.
- Compatible with momentary voltage drops up to 50% of rated voltage for stable operation.
- Complies with UL and CSA standards for quality and reliability assurance.
Product Description
Omron G7L-2A-P-PV DC12 PCB Power Relay is a high-quality industrial relay featuring a 12V DC coil and a 30 amp switching current. This DPST relay is designed for professional PCB mounting applications demanding reliable, high capacity electrical switching.
It features solder-type terminals ensuring robust and secure PCB mounting and easy integration into electrical circuits. The contact configuration is dual pole single throw (DPST), allowing control over two independent circuits simultaneously.
The relay comes constructed with silver alloy contacts delivering exceptional conductivity and long service life. It supports switching AC voltage up to 125V AC, suitable for various industrial and commercial electrical applications.
Engineered to operate reliably in a temperature range from -25°C to 60°C, the relay also incorporates flame-resistant UL94V-0 insulation materials to ensure safety compliance and durability under different operating conditions.
With a coil resistance of 63Ω and coil power consumption of 1.9 watts, the relay efficiently balances performance and energy use. It withstands momentary voltage drops of up to 50% ensuring stable operation even under fluctuating supply conditions.
High switching current capacity of 30A for heavy electrical loads. DPST contact configuration for dual circuit control. PCB mounting with solder terminals for secure installation. Silver alloy contacts provide long-lasting conductivity.
Flame-resistant UL94V-0 insulation enhances safety. Operates reliably from -25°C to 60°C ambient temperature. Compatible with momentary voltage drops to 50% rated voltage. UL and CSA approved for industrial standards compliance.
Compact size suitable for PCB mounting applications. Low contact resistance of 50mΩ minimizes power loss.
This power relay is widely used in industrial control systems, automation equipment, electrical switching tasks, and HVAC control panels. Its robust design and compliance with international standards make it a trusted component for electronics and electrical engineering professionals.
Choose Omron G7L-2A-P-PV DC12 relay for reliable, high-performance PCB power switching with guaranteed quality from a recognized global brand. Explore more Power Relays and related electrical components in the Electronics & Electricals category on EnvMart for a complete solution.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 30A, allowing it to handle robust electrical loads effectively.
This model features a dual pole single throw (DPST) contact configuration, enabling control over two independent circuits.
The relay operates reliably within a temperature range of -25°C to 60°C, making it suitable for various environmental conditions.
It is designed with solder-type terminals for secure PCB mounting and easy integration into electrical circuits.
The contacts of this relay are constructed from silver alloy, which enhances conductivity and ensures a long service life.
The coil voltage for this relay is 12V DC, with a coil power consumption of 1.9 watts.
This power relay can switch AC voltage up to 125V AC, making it versatile for various applications.
The contact resistance of this relay is 50mΩ, which helps minimize power loss during operation.
It complies with CSA and UL standards, ensuring quality and reliability in industrial applications.
The dimensions of this relay are 47mm in height, 35.5mm in width, and 52.5mm in length.
Yes, it is compatible with momentary voltage drops of up to 50% of the rated voltage, ensuring stable operation under fluctuating conditions.
This relay is widely used in industrial control systems, automation equipment, electrical switching tasks, and HVAC control panels.
